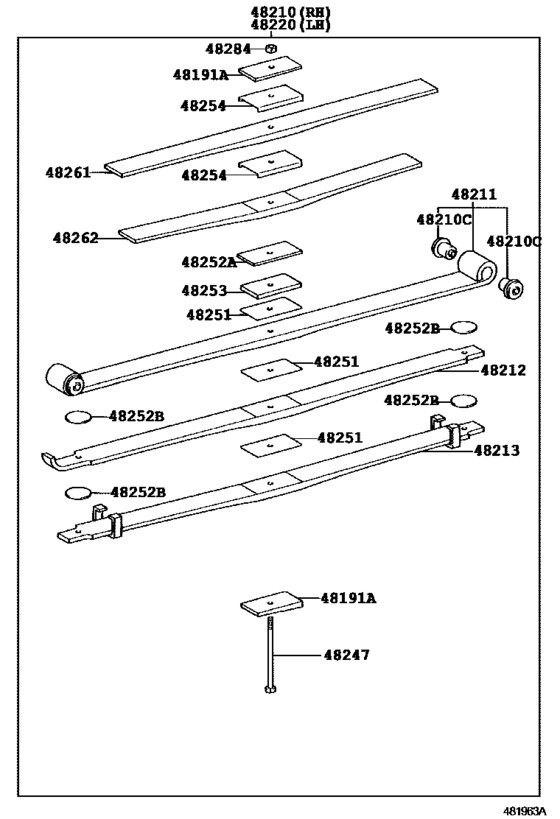

Rear Spring & Shock Absorber ([10.2006 - ] MAIN 3+HELPER 2-LEAF (0406-0610)XZU388..30T ; (0610- )XZU488..30T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 30T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48191A
|
48191A
48192-37110 Wedge, Caster(For Rear Leaf Spring)[10.2006 -] XZU488 |
48192-37110 |
US $36.79 |
||
|
48210
|
48210
48210-37A40 Spring Assy, Rear Rh[10.2006 -] XZU488..30T メイン３枚リーフ＋サブ２枚リーフ |
48210-37A40 |
US $840.11 |
||
|
48210
|
48210
48210-37A90 Spring Assy, Rear Rh[10.2006 -] XZU488..30T メイン３枚リーフ＋サブ２枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-37A90 |
US $879.42 |
||
|
48210C
|
48210C
90389-16026 Bush, Front Spring No.2 Shackle[10.2006 - 06.2011] XZU488;XZU404,414,424,454..20T |
90389-16026 |
from US $15.95 |
||
|
48211
|
48211
48201-37570 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48201-37570 |
US $253.34 |
||
|
48211
|
48211
48201-37710 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..30T |
48201-37710 |
US $246.06 |
||
|
48212
|
48212
48212-37570 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48212-37570 |
US $195.10 |
||
|
48212
|
48212
48212-37710 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..30T |
48212-37710 |
US $184.91 |
||
|
48213
|
48213
48204-37570 Leaf, Rear Spring, No.3[10.2006 - 06.2011] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48204-37570 |
US $227.14 |
||
|
48213
|
48213
48204-37710 Leaf, Rear Spring, No.3[10.2006 - 06.2011] XZU488..30T |
48204-37710 |
US $215.49 |
||
|
48220
|
48220
48210-37A40 Spring Assy, Rear Rh[10.2006 -] XZU488..30T メイン３枚リーフ＋サブ２枚リーフ |
48210-37A40 |
US $840.11 |
||
|
48220
|
48220
48210-37A90 Spring Assy, Rear Rh[10.2006 -] XZU488..30T メイン３枚リーフ＋サブ２枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-37A90 |
US $879.42 |
||
|
48247
|
48247
48247-37A40 Bolt, Rear Spring, Center[10.2006 -] XZU488..30T |
48247-37A40 |
US $6.12 |
||
|
48251
|
48251
48282-37570 Spacer, Rear Spring Leaf[10.2006 -] XZU488..30T |
48282-37570 |
US $7.28 |
||
|
48252A
|
48252A
48263-37600 Spacer, Rear Spring, No.2[10.2006 -] XZU488..30T |
48263-37600 |
US $34.22 |
||
|
48252B
|
48252B
48252-37570 Silencer, Front Spring, No.1[10.2006 -] XZU488..30T |
48252-37570 |
US $9.68 |
||
|
48253
|
48253
48263-37710 Spacer, Rear Spring, No.1[10.2006 -] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48263-37710 |
US $42.95 |
||
|
48254
|
48254
48282-37711 Spacer, Rear Spring Leaf[10.2006 -] XZU488..30T |
48282-37711 |
US $7.28 |
||
|
48261
|
48261
48261-37710 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..30T |
48261-37710 |
US $100.46 |
||
|
48261
|
48261
48261-37830 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48261-37830 |
US $106.29 |
||
|
48262
|
48262
48262-37710 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..30T |
48262-37710 |
US $94.64 |
||
|
48262
|
48262
48262-37830 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..30T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48262-37830 |
US $100.46 |
||
|
48284
|
48284
48155-3B470 Nut, Front Spring Center Bolt[10.2006 -] XZU488..30T |
48155-3B470 |
US $1.43 |
