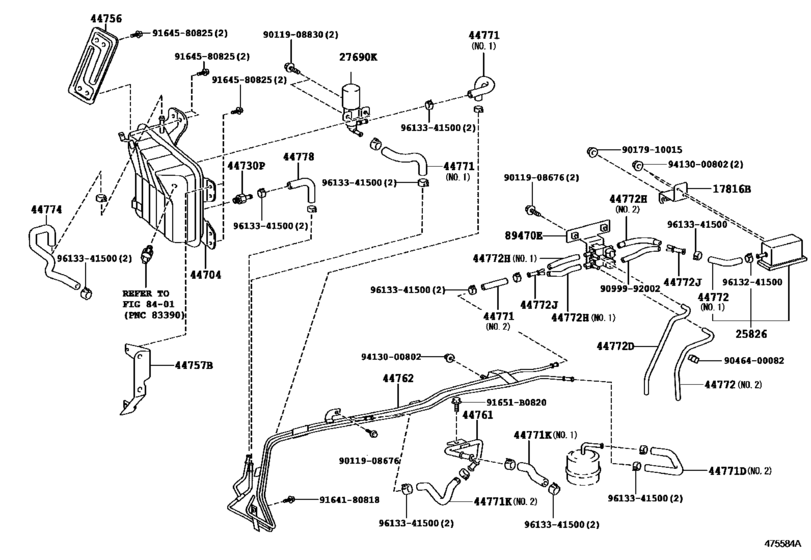

Brake Booster & Vacuum Tube ([10.2006 - ] (0610- )XZU488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17816B
|
17816B
17816-78010 Bracket, Air Filter, No.1[10.2006 -] N04C..XZU488 |
17816-78010 |
US $20.82 |
||
|
25826
|
25826
25826-78011 Filter, No.1[10.2006 -] N04C..XZU488 |
25826-78011 |
US $60.42 |
||
|
27690K
|
27690K
27690-78140 Solenoid Assy, W/bracket(For Exhaust Brake)[10.2006 - 06.2011] N04C..XZU424..40T..IV3;N04C..XZU414..40T..DCRTK..IV3;N04C..XZU414,424..T4..35T..DC RTK..IV3;N04C..XZU404,414..T4..6FC..30T..DCRTJ..IV3;N04C..XZU414..SCB..T4..MTM..(D CRTJ,DCRUE)..IV3 ＴＹＰＥ Ａ：イラスト参照; N04C..XZU434,454,488;N04C..XZU404..MT |
27690-78140 |
US $166.40 |
||
|
44704
|
44704
44704-37190
Reservoir Sub-Assy, Vacuum
[10.2006 - 10.2008] XZU488 |
44704-37190 |
— | ||
| replacement | |||||
|
44704
|
44704
44704-37191 Reservoir Sub-Assy, Vacuum[10.2006 - 10.2008] XZU488 |
44704-37191 |
US $200 |
||
|
44704
|
44704
44704-37191 Reservoir Sub-Assy, Vacuum[11.2008 - 06.2011] XZU488 |
44704-37191 |
US $200 |
||
|
44730P
|
44730P
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[10.2006 - 06.2011] XZU424..40T..IV3;XZU414..40T..DCRTK..IV3;XZU414,424..T4..35T..DCRTK..IV3;XZU404,41 4..T4..6FC..30T..DCRTJ..IV3;XZU414..SCB..T4..MTM..(DCRTJ,DCRUE)..IV3 ＴＹＰＥ Ｂ：イラスト参照,ＴＹＰＥ Ａ：イラスト参照; XZU488;XZU414..DCB; XZU404..MTM..30T;XZU414,424..SCB.. |
44730-60050 |
from US $22.85 |
||
|
44756
|
44756
44756-37100 Bracket, Vacuum Reservoir[10.2006 - 06.2011] XZU424..40T..IV3;XZU414..40T..DCRTK..IV3;XZU414,424..T4..35T..DCRTK..IV3;XZU404,41 4..T4..6FC..30T..DCRTJ..IV3;XZU414..SCB..T4..MTM..(DCRTJ,DCRUE)..IV3 ＴＹＰＥ Ａ：イラスト参照; XZU488;XZU424..40T..IV3;XZU414..40T..DCRTK..IV3;XZU414,424..T4..35T. |
44756-37100 |
US $17.47 |
||
|
44757B
|
44757B
44757-37170 Bracket, Vacuum Tank Clamp, No.2[10.2006 - 06.2011] XZU488 |
44757-37170 |
US $27.52 |
||
|
44761
|
44761
44761-37540 Tube, Intake Manifold Or Vacuum Pump To Connector[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
44761-37540 |
US $16.31 |
||
|
44762
|
44762
44702-37430 Tube, Booster Vacuum[10.2006 -] XZU488 |
44702-37430 |
US $90.27 |
||
|
44771
|
44771
44771-37540 Hose, Vacuum Tube Connector[10.2006 - 06.2011] XZU488 ＮＯ．１ |
44771-37540 |
US $11.11 |
||
|
44771
|
44771
44771-37730 Hose, Vacuum Tube Connector[10.2006 - 06.2011] XZU488 ＮＯ．２ |
44771-37730 |
US $4.51 |
||
|
44771D
|
44771D
44771-37600 Hose, Vacuum Tube Connector[10.2006 -] XZU488 |
44771-37600 |
US $24.32 |
||
|
44771K
|
44771K
44771-37A20 Hose, Vacuum Tube Connector[10.2006 -] XZU488 ＮＯ．２：イラスト参照 |
44771-37A20 |
US $6.99 |
||
|
44771K
|
44771K
95446-09120 Hose, Vacuum Pump[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＮＯ．１：イラスト参照 |
95446-09120 |
US $5.73 |
||
|
44772
|
44772
44772-37080 Hose, Check Valve To Connector Tube[10.2006 - 06.2011] XZU488 ＮＯ．１ |
44772-37080 |
US $3.35 |
||
|
44772
|
44772
44772-37120 Hose, Check Valve To Connector Tube[10.2006 - 06.2011] XZU488 ＮＯ．２ |
44772-37120 |
US $3.35 |
||
|
44772D
|
44772D
44772-37130 Hose, Check Valve To Actuator[10.2006 -] XZU488 |
44772-37130 |
US $3.35 |
||
|
44772H
|
44772H
44772-37140 Hose, Check Valve To 3 Way[10.2006 -] XZU488 ＮＯ．１ |
44772-37140 |
US $3.35 |
||
|
44772H
|
44772H
44772-37160 Hose, Check Valve To 3 Way[10.2006 -] XZU488 ＮＯ．２ |
44772-37160 |
US $3.35 |
||
|
44772J
|
44772J
90413-05007 Way, 3(For Vacuum Check Valve To 3 Way Hose)[10.2006 -] XZU488 |
90413-05007 |
US $3.20 |
||
|
44774
|
44774
44774-37310 Hose, Union To Connector Tube[10.2006 - 06.2011] XZU488 |
44774-37310 |
US $29.27 |
||
|
44778
|
44778
44778-37060 Hose, Solenoid To Vacuum Tube[10.2006 - 06.2011] XZU424..40T..IV3;XZU414..40T..DCRTK..IV3;XZU414,424..T4..35T..DCRTK..IV3;XZU404,41 4..T4..6FC..30T..DCRTJ..IV3;XZU414..SCB..T4..MTM..(DCRTJ,DCRUE)..IV3 ＴＹＰＥ Ｂ：イラスト参照,ＴＹＰＥ Ａ：イラスト参照; XZU488;XZU424..40T..IV3;XZU414..40T..DCRTK..IV3;XZU414 |
44778-37060 |
US $9.86 |
||
|
89470E
|
89470E
89470-37091 Valve Assy, Vacuum Switching W/bracket, No.1[10.2006 -] XZU488 |
89470-37091 |
US $198.02 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $16.13 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.05 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.79 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.48 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
