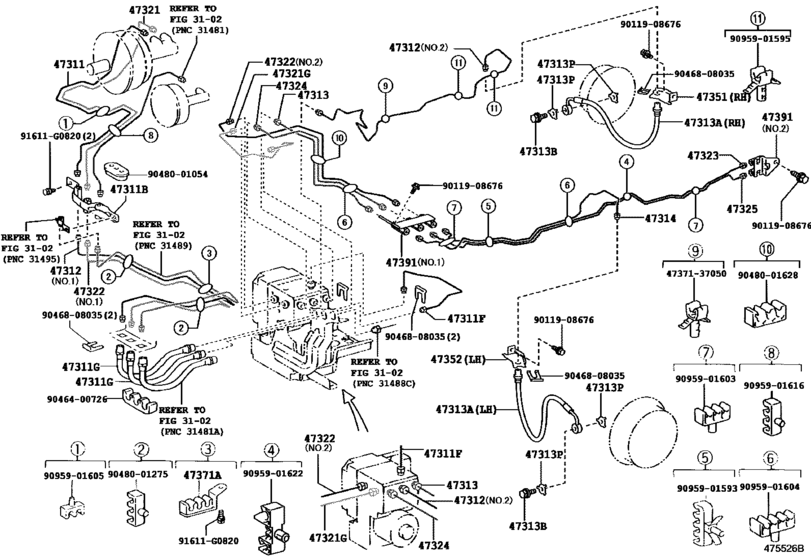

Brake Tube & Clamp ([06.2004 - ] (0406- )XZU388,488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-37162 Tube, Front Brake, No.1[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
47311-37162 |
US $12.08 |
||
|
47311B
|
47311B
47391-37020 Way, No.1(For Front Brake Tube)[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
47391-37020 |
US $8.88 |
||
|
47311F
|
47311F
47311-37440 Tube, Front Brake, Frame No.1[10.2006 -] XZU488 |
47311-37440 |
US $6.12 |
||
|
47311G
|
47311G
90947-02A79 Hose, Flexible(For Brake Tube)[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
90947-02A79 |
US $22.18 |
||
|
47312
|
47312
47312-37270 Tube, Front Brake, No.2[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＮＯ．１ |
47312-37270 |
US $10.19 |
||
|
47312
|
47312
47312-37570 Tube, Front Brake, No.2[10.2006 -] XZU488 ＮＯ．２ |
47312-37570 |
US $20.38 |
||
|
47313
|
47313
47313-37440 Tube, Front Brake, No.3[10.2006 -] XZU488 |
47313-37440 |
US $6.12 |
||
|
47313A
|
47313A
90947-02D54 Hose, Flexible, No.1(For Front)[10.2006 -] XZU488 右側 |
90947-02D54 |
US $21.17 |
||
|
47313A
|
47313A
90947-02D98 Hose, Flexible, No.1(For Front)[10.2006 -] XZU488 左側 |
90947-02D98 |
US $21.17 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
90401-10015 |
from US $3.58 |
||
|
47313P
|
47313P
47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
47389-30010 |
from US $1.19 |
||
|
47314
|
47314
47314-37730 Tube, Front Brake, No.4[10.2006 -] XZU488 |
47314-37730 |
US $16.31 |
||
|
47321
|
47321
47321-37160 Tube, Rear Brake, No.1[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
47321-37160 |
US $12.08 |
||
|
47321G
|
47321G
47321-37420 Tube, Rear Brake, No.1[10.2006 -] XZU488 |
47321-37420 |
US $6.12 |
||
|
47322
|
47322
47322-37371 Tube, Rear Brake, No.2[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＮＯ．１ |
47322-37371 |
US $10.19 |
||
|
47322
|
47322
47322-37580 Tube, Rear Brake, No.2[10.2006 -] XZU488 ＮＯ．２ |
47322-37580 |
US $10.66 |
||
|
47323
|
47323
47323-37560 Tube, Rear Brake, No.3[10.2006 -] XZU488 |
47323-37560 |
US $24.32 |
||
|
47324
|
47324
47324-37240 Tube, Rear Brake, No.4[10.2006 -] XZU488 |
47324-37240 |
US $8.30 |
||
|
47325
|
47325
47325-37340 Tube, Rear Brake, No.5[10.2006 -] XZU488 |
47325-37340 |
US $22.42 |
||
|
47351
|
47351
47351-37330 Bracket, Flexible Hose(For Front Rh)[10.2006 -] XZU488 |
47351-37330 |
US $5.97 |
||
|
47352
|
47352
47352-37200 Bracket, Flexible Hose(For Front Lh)[10.2006 -] XZU488 |
47352-37200 |
US $5.97 |
||
|
47371A
|
47371A
47371-37030 Clamp, Brake Tube, No.1[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
47371-37030 |
US $6.12 |
||
|
47391
|
47391
47391-37280 Way, Brake Tube[10.2006 -] XZU488 ＮＯ．２ |
47391-37280 |
US $8.96 |
||
|
47391
|
47391
47391-37300 Way, Brake Tube[10.2006 -] XZU488 ＮＯ．１ |
47391-37300 |
US $11.50 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
4737137050
|
4737137050
47371-37050 Clamp, Brake Tube, No.6 |
47371-37050 |
US $2.20 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9046400726
|
9046400726
90464-00726 Clamp, Brake Tube, No.4 |
90464-00726 |
US $13.83 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9048001054
|
9048001054
90480-01054 Grommet(For Brake Tube) |
90480-01054 |
US $2.77 |
||
|
9048001275
|
9048001275
90480-01275 Clamp, Brake Tube, No.7 |
90480-01275 |
US $3.94 |
||
|
9048001628
|
9048001628
90480-01628 Grommet(For Brake Tube) |
90480-01628 |
US $1.75 |
||
|
9095901593
|
9095901593
90959-01593 Clamp, Brake Tube, No.6 |
90959-01593 |
US $3.05 |
||
|
9095901595
|
9095901595
90959-01595 Clamp, Brake Tube, No.1 |
90959-01595 |
US $2.18 |
||
|
9095901603
|
9095901603
90959-01603 Clamp, Brake Tube, No.5 |
90959-01603 |
US $2.06 |
||
|
9095901604
|
9095901604
90959-01604 Clamp, Brake Tube, No.7 |
90959-01604 |
US $2.18 |
||
|
9095901605
|
9095901605
90959-01605 New Genuine Part |
90959-01605 |
US $2.33 |
||
|
9095901616
|
9095901616
90959-01616 New Genuine Part |
90959-01616 |
US $2.18 |
||
|
9095901622
|
9095901622
90959-01622 New Genuine Part |
90959-01622 |
US $2.18 |
