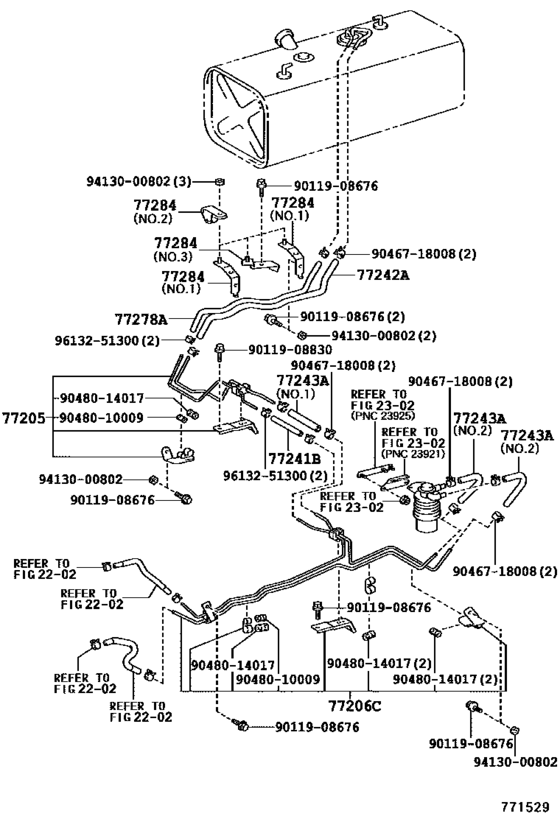

Fuel Tank & Tube ([06.2004 - ] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0406- )XZU388,488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-37821 Tube Sub-Assy, Fuel Main[10.2006 -] XZU488 |
77205-37821 |
US $46.59 |
||
|
77206C
|
77206C
77206-37A60 Tube Sub-Assy, Fuel Main, No.2[10.2006 -] XZU488 |
77206-37A60 |
US $125.22 |
||
|
77241B
|
77241B
95333-08020
Hose, Lpg Injector
[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＊Ｈ，Ｌ＝１６０，内径＝７．６ |
95333-08020 |
— | ||
| replacement | |||||
|
77241B
|
77241B
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＊Ｈ，Ｌ＝１６０，内径＝７．６ |
95337-08020 |
from US $5.56 |
||
|
77242A
|
77242A
95332-12085 Hose, Fuel, No.1 (For Main Tube, No.2)[10.2006 -] XZU488 ＊Ｈ，Ｌ＝８５０，内径＝１２ |
95332-12085 |
US $26.21 |
||
|
77243A
|
77243A
95332-12016 Hose, Fuel, No.2 (For Main Tube, No.1)[10.2006 -] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ＊Ｈ，Ｌ＝１６０，内径＝１２,ＮＯ．１ |
95332-12016 |
US $16.42 |
||
|
77243A
|
77243A
95332-12024 Hose, Fuel, No.1 (For Main Tube, No.2)[10.2006 -] XZU488 ＊Ｈ，Ｌ＝２４０，内径＝１２,ＮＯ．２ |
95332-12024 |
US $10.13 |
||
|
77278A
|
77278A
95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)[10.2006 -] XZU488 ＊Ｈ，Ｌ＝８５０，内径＝７．６ |
95333-08100 |
US $33.94 |
||
|
77284
|
77284
77281-37150 Clamp, Fuel Hose[10.2006 -] XZU488;XZU434..IV3;XZU434..T4..CBU ＮＯ．３ |
77281-37150 |
US $3.06 |
||
|
77284
|
77284
77281-37410 Clamp, Fuel Tube[10.2006 -] XZU488 ＮＯ．１ |
77281-37410 |
US $5.24 |
||
|
77284
|
77284
90034-61051 Clamp, Fuel Hose[10.2006 -] XZU488;XZU434..T3..CBU ＮＯ．２; XZU434..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ),ＮＯ．２ |
90034-61051 |
US $2.62 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $16.13 |
||
|
9046718008
|
9046718008
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.11 |
||
|
9048010009
|
9048010009
90480-10009 New Genuine Part |
90480-10009 |
US $2.04 |
||
|
9048014017
|
9048014017
90480-14017 New Genuine Part |
90480-14017 |
US $0.72 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
