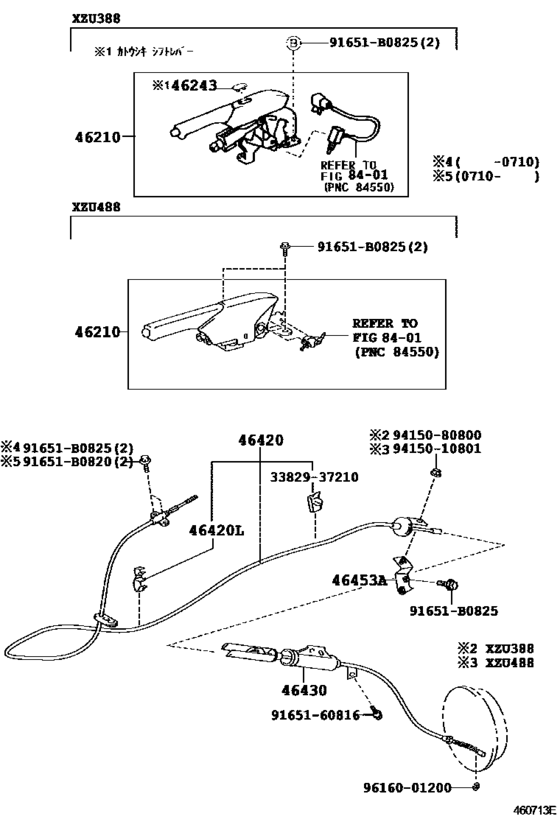

Parking Brake & Cable ([06.2004 - ] (0406- )XZU388,488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-37100-B0 Lever Assy, Parking Brake[05.2007 - 12.2009] XZU454,488;XZU414..T3..6FC;XZU424..T3..30T;XZU424..6FC..35T;XZU414..T4..35T..DCRTK ;XZU424..35T..DCRTK..CBU;XZU414..(T4,T5)..(DCRTJ,DCRUE);XZU414..T3..(DCRTJ,DCRUE). .CBU;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..CBU ｺﾃｲｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHA |
46210-37100-B0 |
US $183.46 |
||
| replacement | |||||
|
46210
|
46210
46210-37101-B0 Lever Assy, Parking BrakePARKING BRAKE [05.2007 - 12.2009] XZU454,488;XZU414..T3..6FC;XZU424..T3..30T;XZU424..6FC..35T;XZU414..T4..35T..DCRTK ;XZU424..35T..DCRTK..CBU;XZU414..(T4,T5)..(DCRTJ,DCRUE);XZU414..T3..(DCRTJ,DCRUE). .CBU;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..CBU ｺﾃｲｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHA |
46210-37101-B0 |
US $152.88 |
||
|
46210
|
46210
46210-37101-B0 Lever Assy, Parking BrakePARKING BRAKE [01.2010 - 06.2011] XZU454,488;XZU414..DCB..T4;XZU414..T3..6FC;XZU424..6FC..35T;XZU414..T4..35T..DCRTK ;XZU414..DCB..T5..DCRUE;XZU424..35T..DCRTK..CBU;XZU414..T3..(DCRTJ,DCRUE)..CBU;XZU 414..SCB..(T4,T5)..(DCRTJ,DCRUE);XZU404,414..T3..(35T,40T)..DCRTK..CB |
46210-37101-B0 |
US $152.88 |
||
|
46210
|
46210
46210-37110-B0 Lever Assy, Parking Brake[10.2006 - 12.2009] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE DK.CHARCOAL,TRIM1# |
46210-37110-B0 |
US $183.46 |
||
| replacement | |||||
|
46210
|
46210
46210-37111-B0 Lever Assy, Parking BrakePARKING BRAKE [10.2006 - 12.2009] XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE DK.CHARCOAL,TRIM1# |
46210-37111-B0 |
US $152.88 |
||
|
46210
|
46210
46210-37111-B0 Lever Assy, Parking BrakePARKING BRAKE [01.2010 - 06.2011] XZU404..DM7,T4;XZU404..T3..6F;XZU414..DCB..T4;XZU414..DCB..T5..DCRUE;XZU414,424,43 4,454,488..SCB DK.CHARCOAL,TRIM1# |
46210-37111-B0 |
US $152.88 |
||
|
46420
|
46420
46420-37640 Cable Assy, Parking Brake, No.2[10.2006 -] XZU488 |
46420-37640 |
US $84.45 |
||
|
46420L
|
46420L
46421-37010 Clamp, No.5(For Parking Brake Cable)[10.2006 -] XZU488 |
46421-37010 |
US $2.62 |
||
|
46430
|
46430
46430-37740 Cable Assy, Parking Brake, No.3[10.2006 - 02.2009] XZU488 |
46430-37740 |
US $47.17 |
||
| replacement | |||||
|
46430
|
46430
46430-37741 Cable Assy, Parking Brake, No.3[10.2006 - 02.2009] XZU488 |
46430-37741 |
US $49.06 |
||
|
46430
|
46430
46430-37741 Cable Assy, Parking Brake, No.3[03.2009 - 06.2011] XZU488 |
46430-37741 |
US $49.06 |
||
|
46453A
|
46453A
46453-37220 Bracket, Cable Support, No.3[10.2006 -] XZU488 |
46453-37220 |
US $8.74 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
3382937210
|
3382937210
33829-37210 Bracket, Transmission Control Cable, No.2 |
33829-37210 |
US $4.48 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9415010801
|
9415010801
94150-10801 New Genuine Part |
94150-10801 |
US $1.79 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.54 |
||
