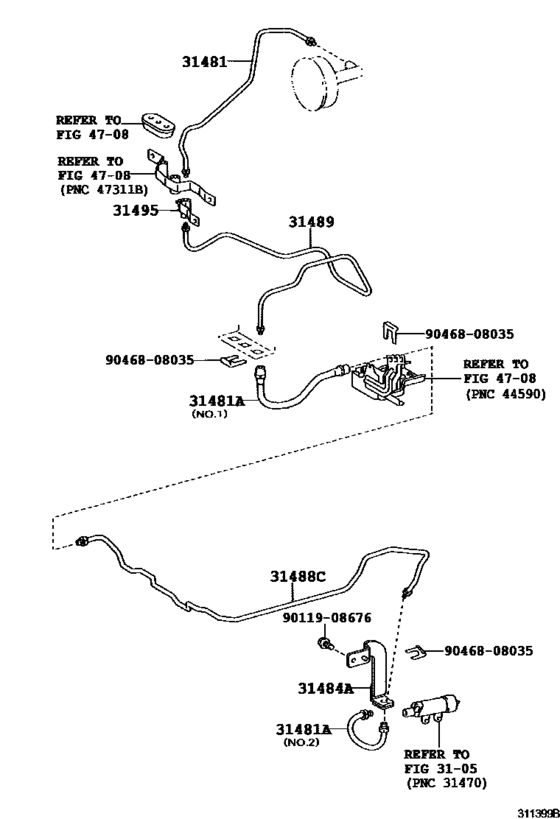

Clutch Pedal & Flexible Hose ([10.2006 - ] (0406-0610)XZU388 ; (0610- )XZU488) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-37121 Tube, Clutch Master Cylinder To Flexible Hose[10.2006 -] XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
31481-37121 |
US $8.74 |
||
|
31481A
|
31481A
31486-37050 Hose, Clutch, No.1[10.2006 -] XZU488 ＮＯ．２ |
31486-37050 |
US $20.16 |
||
|
31481A
|
31481A
90931-01143
Hose, Clutch, No.1
[10.2006 -] XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ＮＯ．１ |
90931-01143 |
— | ||
| replacement | |||||
|
31481A
|
31481A
31486-37110 Hose, Clutch, No.1[10.2006 -] XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ＮＯ．１ |
31486-37110 |
US $13.87 |
||
|
31484A
|
31484A
31484-37270 Bracket, Flexible Hose, No.1(For Clutch)[10.2006 -] XZU488 |
31484-37270 |
US $14.41 |
||
|
31488C
|
31488C
31482-37180 Tube, Flexible Hose To Flexible Hose[10.2006 - 06.2011] XZU488 |
31482-37180 |
US $24.17 |
||
|
31489
|
31489
31481-37160 Tube, Tube Connector To Flexible Hose[10.2006 -] XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
31481-37160 |
US $9.03 |
||
|
31495
|
31495
31495-37020 Way, Clutch Tube[10.2006 -] XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
31495-37020 |
US $7.43 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
