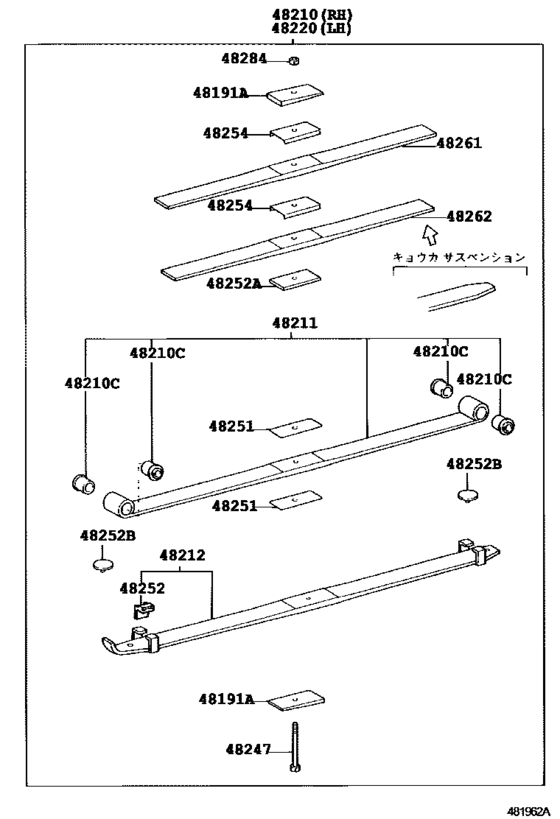

Rear Spring & Shock Absorber ([10.2006 - ] MAIN 2+HELPER 2-LEAF,TYPE:G (0406-0610)XZU388..20T ; (0610- )XZU488..20T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU488
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48191A
|
48191A
48192-37110 Wedge, Caster(For Rear Leaf Spring)[10.2006 -] XZU488 |
48192-37110 |
US $36.79 |
||
|
48210
|
48210
48210-37A30 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-37A30 |
US $813.90 |
||
| replacement | |||||
|
48210
|
48210
48210-37A31 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-37A31 |
US $739.65 |
||
|
48210
|
48210
48210-37A80 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48210-37A80 |
US $843.02 |
||
| replacement | |||||
|
48210
|
48210
48210-37A81 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48210-37A81 |
US $765.86 |
||
|
48210C
|
48210C
90389-16026 Bush, Front Spring No.2 Shackle[10.2006 - 06.2011] XZU488;XZU404,414,424,454..20T |
90389-16026 |
from US $15.95 |
||
|
48211
|
48211
48201-37A30 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..20T |
48201-37A30 |
US $292.66 |
||
| replacement | |||||
|
48211
|
48211
48201-37381 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..20T |
48201-37381 |
US $264.99 |
||
|
48211
|
48211
48201-37A80 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48201-37A80 |
US $301.39 |
||
| replacement | |||||
|
48211
|
48211
48201-37A81 Leaf, Rear Spring, No.1[10.2006 - 06.2011] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48201-37A81 |
US $273.73 |
||
|
48212
|
48212
48202-37A30 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..20T |
48202-37A30 |
US $302.85 |
||
| replacements | |||||
|
48212
|
48212
48202-37381 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..20T |
48202-37381 |
US $275.18 |
||
|
48212
|
48212
48252-37521 Silencer, Front Spring, No.1[10.2006 - 06.2011] XZU488..20T |
48252-37521 |
US $12.54 |
||
|
48212
|
48212
48202-37A80 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48202-37A80 |
US $315.95 |
||
| replacements | |||||
|
48212
|
48212
48202-37A81 Leaf, Rear Spring, No.2[10.2006 - 06.2011] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48202-37A81 |
US $286.83 |
||
|
48212
|
48212
48252-37521 Silencer, Front Spring, No.1[10.2006 - 06.2011] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48252-37521 |
US $12.54 |
||
|
48220
|
48220
48210-37A30 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-37A30 |
US $813.90 |
||
| replacement | |||||
|
48220
|
48220
48210-37A31 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-37A31 |
US $739.65 |
||
|
48220
|
48220
48210-37A80 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48210-37A80 |
US $843.02 |
||
| replacement | |||||
|
48220
|
48220
48210-37A81 Spring Assy, Rear Rh[10.2006 -] XZU488..20T メイン２枚リーフ＋サブ２枚リーフ,TYPE G:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48210-37A81 |
US $765.86 |
||
|
48247
|
48247
48247-26360 Bolt, Rear Spring, Center[10.2006 -] XZU488..20T |
48247-26360 |
US $6.70 |
||
| replacement | |||||
|
48247
|
48247
48247-37381 Bolt, Rear Spring, Center[10.2006 -] XZU488..20T |
48247-37381 |
US $5.97 |
||
|
48251
|
48251
48251-36530 Spacer, Front Leaf Spring, No.1[10.2006 -] XZU488..20T |
48251-36530 |
US $17.47 |
||
|
48252
|
48252
48252-37380 Silencer, Rear Spring[10.2006 -] XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,D CRTL,DCRTM,DCRUE) |
48252-37380 |
US $9.68 |
||
|
48252A
|
48252A
48251-3B720 Spacer, Rear Spring Leaf[10.2006 -] XZU488..20T |
48251-3B720 |
US $11.65 |
||
|
48252B
|
48252B
48252-37670 Silencer, Front Spring, No.1[10.2006 -] XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,D CRTL,DCRTM,DCRUE) |
48252-37670 |
US $9.68 |
||
|
48254
|
48254
48254-37380 Spacer, Rear Spring Leaf[10.2006 -] XZU488..20T |
48254-37380 |
US $10.77 |
||
| replacement | |||||
|
48254
|
48254
48282-37711 Spacer, Rear Spring Leaf[10.2006 -] XZU488..20T |
48282-37711 |
US $7.28 |
||
|
48261
|
48261
48213-37A30 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..20T |
48213-37A30 |
US $112.11 |
||
| replacement | |||||
|
48261
|
48261
48213-37381 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..20T |
48213-37381 |
US $101.92 |
||
|
48261
|
48261
48213-37A80 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48213-37A80 |
US $116.48 |
||
| replacement | |||||
|
48261
|
48261
48213-37A81 Leaf, Rear Helper Spring, No.1[10.2006 -] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48213-37A81 |
US $104.83 |
||
|
48262
|
48262
48214-37A30 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..20T |
48214-37A30 |
US $109.20 |
||
| replacement | |||||
|
48262
|
48262
48214-37381 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..20T |
48214-37381 |
US $99.01 |
||
|
48262
|
48262
48214-37A80 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48214-37A80 |
US $112.11 |
||
| replacement | |||||
|
48262
|
48262
48214-37A81 Leaf, Rear Helper Spring, No.2[10.2006 -] XZU488..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48214-37A81 |
US $101.92 |
||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[10.2006 -] XZU488..20T |
48284-37130 |
from US $1.11 |
||
