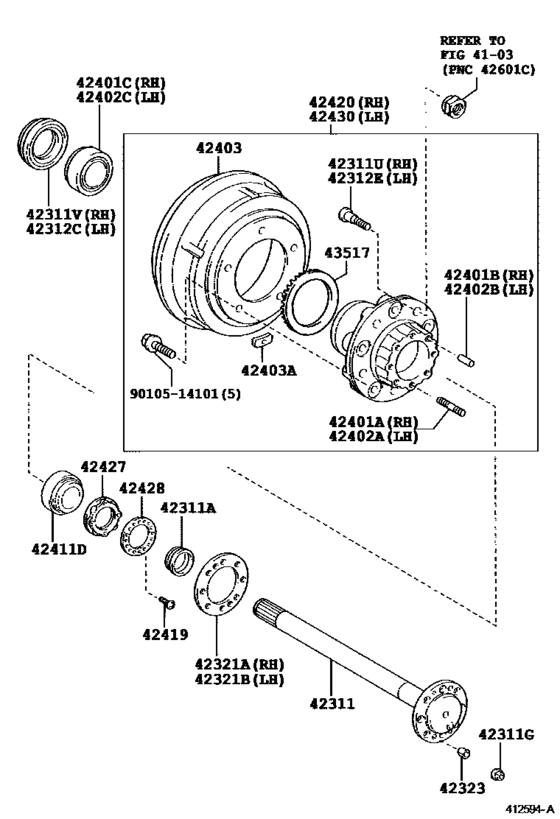

Rear Axle Shaft & Hub ([10.2006 - ] (0610- )ST) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU504
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T5
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DCRTH
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311
|
42311
42311-37090 Shaft, Rear Axle[10.2006 - 06.2011] XZU504..ST |
42311-37090 |
US $291.20 |
||
|
42311A
|
42311A
90310-38033 Seal, Oil (For Rear Axle Shaft)[10.2006 -] XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300 ,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ, EFI,LPG) |
90310-38033 |
from US $3.40 |
||
|
42311G
|
42311G
90179-10067 Nut (For Rear Axle Shaft)[10.2006 - 06.2011] XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300 ,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ, EFI,LPG) |
90179-10067 |
from US $1.61 |
||
|
42311U
|
42311U
90942-02071 Bolt, Hub (For Rear Axle Rh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90942-02071 |
from US $7.29 |
||
|
42311V
|
42311V
90311-78001 Seal, Oil (For Rear Axle Shaft Rh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90311-78001 |
from US $25.37 |
||
|
42312C
|
42312C
90311-78001 Seal, Oil (For Rear Axle Shaft Rh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90311-78001 |
from US $25.37 |
||
|
42312E
|
42312E
90942-02072 Bolt, Hub (For Rear Axle Lh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90942-02072 |
from US $7.31 |
||
|
42321A
|
42321A
42321-37020 Gasket, Rear Axle Shaft[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
42321-37020 |
from US $5.07 |
||
|
42321B
|
42321B
42321-37020 Gasket, Rear Axle Shaft[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
42321-37020 |
from US $5.07 |
||
|
42323
|
42323
42323-36010 Washer, Cone (For Rear Axle Shaft)[10.2006 - 06.2011] XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300 ,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ, EFI,LPG) |
42323-36010 |
from US $2.13 |
||
|
42401A
|
42401A
90116-10191 Bolt, Stud (For Rear Axle Hub Rh)[10.2006 - 06.2011] XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300 ,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ, EFI,LPG) |
90116-10191 |
from US $1.62 |
||
|
42401B
|
42401B
90250-10055 Pin, Straight (For Rear Axle Hub Rh)[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90250-10055 |
from US $2.67 |
||
|
42401C
|
42401C
90366-60012 Bearing (For Rear Axle Hub Inner Rh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90366-60012 |
from US $60.48 |
||
|
42402A
|
42402A
90116-10191 Bolt, Stud (For Rear Axle Hub Rh)[10.2006 - 06.2011] XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300 ,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ, EFI,LPG) |
90116-10191 |
from US $1.62 |
||
|
42402B
|
42402B
90250-10055 Pin, Straight (For Rear Axle Hub Rh)[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90250-10055 |
from US $2.67 |
||
|
42402C
|
42402C
90366-60012 Bearing (For Rear Axle Hub Inner Rh)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90366-60012 |
from US $60.48 |
||
|
42403
|
42403
42431-37080 Drum Sub-Assy, Rear Brake[10.2006 -] XZU504..ST |
42431-37080 |
US $203.20 |
||
|
42403A
|
42403A
90937-01117 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST １０Ｇ |
90937-01117 |
US $1.14 |
||
|
42403A
|
42403A
90937-01118 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST ２０Ｇ |
90937-01118 |
US $1.05 |
||
|
42403A
|
42403A
90937-01119 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST ３０Ｇ |
90937-01119 |
US $1.05 |
||
|
42403A
|
42403A
90937-01120 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST ４０Ｇ |
90937-01120 |
US $1.05 |
||
|
42403A
|
42403A
90937-01121 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST ５０Ｇ |
90937-01121 |
US $1.05 |
||
|
42403A
|
42403A
90937-01122 Piece, Balance (For Rear Brake Drum)[10.2006 -] XZU504..ST ６０Ｇ |
90937-01122 |
US $2.33 |
||
|
42411D
|
42411D
90366-55054 Bearing(For Rear Differential Case)[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
90366-55054 |
from US $57.12 |
||
|
42419
|
42419
93311-16012 Screw, Rear Axle Bearing Lock Nut[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
93311-16012 |
from US $0.80 |
||
|
42420
|
42420
42420-39095 Hub (Or Shaft) & Brake Drum Rear Axle, Rh[10.2006 -] XZU504..ST |
42420-39095 |
US $512.51 |
||
|
42427
|
42427
42427-37020 Nut, Rear Axle Bearing Lock[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
42427-37020 |
from US $17.45 |
||
|
42428
|
42428
42428-36020 Plate, Rear Axle Lock Nut[10.2006 -] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568..20T,30T |
42428-36020 |
from US $2.87 |
||
|
42430
|
42430
42430-39095 Hub (Or Shaft) & Brake Drum Rear Axle, Lh[10.2006 -] XZU504..ST |
42430-39095 |
US $432.43 |
||
|
43517
|
43517
43517-37010 Rotor, Skid Control, Rear[10.2006 - 06.2011] XZU504..ST |
43517-37010 |
from US $31.96 |
||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
from US $1.81 |
