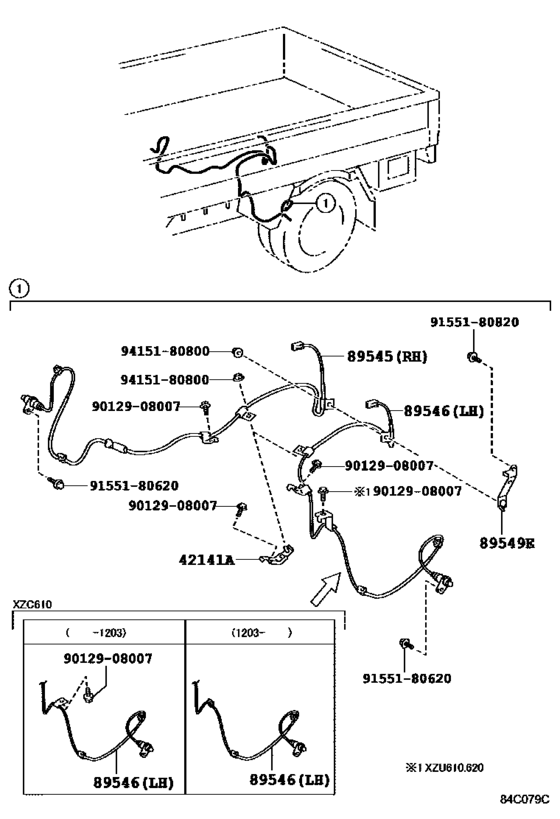

Abs & Vsc ([07.2011 - 02.2013] ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ (1107-1302)XZC610,630,XZU610,620,630) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XZU620
- ENGINE
- N04C
- TRANSMISSION
- MTM
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 5F
- Deck,cab
- DM5
- Loading Capacity
- 30T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42141A
|
42141A
42141-37230 Attachment, Skid Control Wire, No.1[07.2011 - 05.2017] TRC600,XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
42141-37230 |
US $6.84 |
||
|
89545
|
89545
89545-37170 Sensor, Speed, Rear Rh[07.2011 - 02.2013] XZU610,620 |
89545-37170 |
US $182 |
||
| replacements | |||||
|
89545
|
89545
42141-37330 Attachment, Skid Control Wire, No.1[07.2011 - 02.2013] XZU610,620 |
42141-37330 |
US $20.09 |
||
|
89545
|
89545
89545-37171 Sensor, Speed, Rear Rh[07.2011 - 02.2013] XZU610,620 |
89545-37171 |
US $160.16 |
||
|
89545
|
89545
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[07.2011 - 02.2013] XZU610,620 |
91551-80635 |
from US $0.72 |
||
|
89545
|
89545
89545-37171 Sensor, Speed, Rear Rh[02.2013 - 05.2016] XZU610,620 |
89545-37171 |
US $160.16 |
||
|
89545
|
89545
89545-37440 Sensor, Speed, Rear Rh[05.2016 - 05.2017] XZU610,620 |
89545-37440 |
US $160.16 |
||
|
89546
|
89546
89546-37170 Sensor, Speed, Rear Lh[07.2011 - 02.2012] XZU610,620 |
89546-37170 |
US $182 |
||
| replacements | |||||
|
89546
|
89546
42141-37330 Attachment, Skid Control Wire, No.1[07.2011 - 02.2012] XZU610,620 |
42141-37330 |
US $20.09 |
||
|
89546
|
89546
89546-37172 Sensor, Speed, Rear Lh[07.2011 - 02.2012] XZU610,620 |
89546-37172 |
US $160.16 |
||
|
89546
|
89546
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[07.2011 - 02.2012] XZU610,620 |
91551-80635 |
from US $0.72 |
||
|
89546
|
89546
89546-37171 Sensor, Speed, Rear Lh[03.2012 - 02.2013] XZC675,XZU610,620,675..DM5 |
89546-37171 |
US $182 |
||
| replacements | |||||
|
89546
|
89546
42141-37330 Attachment, Skid Control Wire, No.1[03.2012 - 02.2013] XZC675,XZU610,620,675..DM5 |
42141-37330 |
US $20.09 |
||
|
89546
|
89546
89546-37172 Sensor, Speed, Rear Lh[03.2012 - 02.2013] XZC675,XZU610,620,675..DM5 |
89546-37172 |
US $160.16 |
||
|
89546
|
89546
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[03.2012 - 02.2013] XZC675,XZU610,620,675..DM5 |
91551-80635 |
from US $0.72 |
||
|
89546
|
89546
89546-37172 Sensor, Speed, Rear Lh[02.2013 - 05.2016] XZC675,XZU610,620,675..DM5 |
89546-37172 |
US $160.16 |
||
|
89546
|
89546
89546-37440 Sensor, Speed, Rear Lh[05.2016 - 05.2017] XZC675,XZU610,620,675..DM5 |
89546-37440 |
US $160.16 |
||
|
89549E
|
89549E
82716-37410 Bracket, Speed Sensor[07.2011 - 05.2017] XZC610,630,XZU610,620,630 |
82716-37410 |
US $8.88 |
||
|
9012908007
|
9012908007
90129-08007 New Genuine Part |
90129-08007 |
US $1.10 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.61 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.72 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.76 |
||
