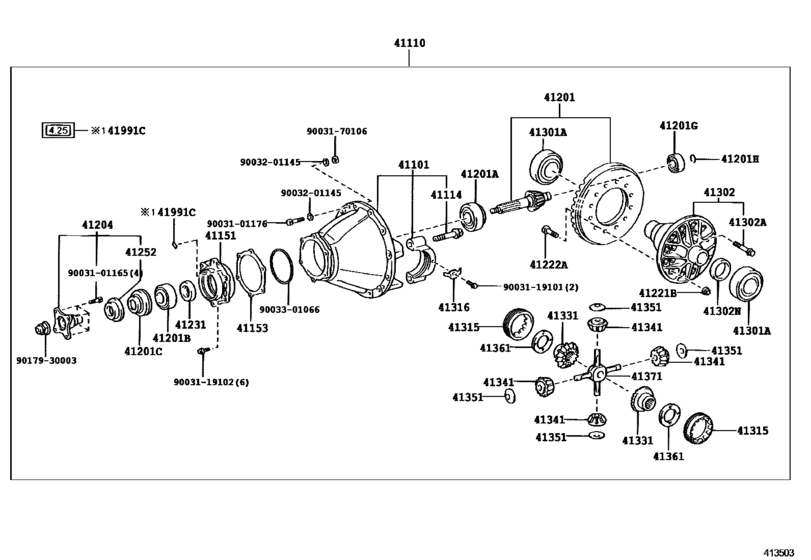

Rear Axle Housing & Differential ([07.2011 - ] 13ｲﾝﾁ ﾃﾞｨﾌｧﾚﾝｼｬﾙ (1107- )XZU700,710..40T ; (1107- )XZU720,7 30..T3..DCRTL) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XZU710
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 6F
- Loading Capacity
- 40T
- Fuel Induction
- DCRTL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-37040 Carrier Sub-Assy, Differential, Rear[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41101-37040 |
US $672.67 |
||
|
41110
|
41110
41110-37480 Carrier Assy, Differential, Rear[07.2011 - 05.2017] XZU700..DM7;XZU710..40T..DCRTK ＊ＦＧＲ＝３６：７＝５．１４２; XZU720..T3..35T..DCRTL T．１４２; XZU730..T3..35T;XZU710..40T..DCRTL 潟u |
41110-37480 |
US $4,528.16 |
||
|
41110
|
41110
41110-37660 Carrier Assy, Differential, Rear[07.2011 - 05.2017] XZU730..T3..35T;XZU710..40T..DCRTL ＊ＦＧＲ＝３９：８＝４．８７５; XZU720..T3..35T..DCRTL S．８７５; XZU700..DM7..IV3 潟u |
41110-37660 |
US $4,528.16 |
||
|
41114
|
41114
90031-05043 Bolt, Rear Differential Bearing Cap[07.2011 - 08.2011] XZC710,XZU700,710,720,730 |
90031-05043 |
US $7.57 |
||
| replacement | |||||
|
41114
|
41114
SZ105-16030 Bolt, Rear Differential Bearing Cap[07.2011 - 08.2011] XZC710,XZU700,710,720,730 |
SZ105-16030 |
from US $5.13 |
||
|
41114
|
41114
SZ105-16030 Bolt, Rear Differential Bearing Cap[08.2011 - 05.2017] XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,7 30,775 |
SZ105-16030 |
from US $5.13 |
||
|
41151
|
41151
41151-37020 Cage, Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41151-37020 |
US $94.64 |
||
|
41153
|
41153
41153-37050 Shim, Differential Drive Pinion Cage[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝０．３０ |
41153-37050 |
US $2.62 |
||
|
41153
|
41153
41153-37060 Shim, Differential Drive Pinion Cage[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝０．４０ |
41153-37060 |
US $3.35 |
||
|
41153
|
41153
41153-37070 Shim, Differential Drive Pinion Cage[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝０．４５ |
41153-37070 |
US $3.35 |
||
|
41153
|
41153
41153-37080 Shim, Differential Drive Pinion Cage[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝０．５０ |
41153-37080 |
US $3.35 |
||
|
41201
|
41201
41201-37300
Final Gear Kit, Differential, Rear
[07.2011 - 05.2017] XZU700..DM7;XZU710..40T..DCRTK ＊ＦＧＲ＝３６：７＝５．１４２; XZU720..T3..35T..DCRTL T．１４２; XZU730..T3..35T;XZU710..40T..DCRTL 潟u |
41201-37300 |
— | ||
|
41201
|
41201
41201-37320
Final Gear Kit, Differential, Rear
[07.2011 - 05.2017] XZU730..T3..35T;XZU710..40T..DCRTL ＊ＦＧＲ＝３９：８＝４．８７５; XZU720..T3..35T..DCRTL S．８７５; XZU700..DM7..IV3 潟u |
41201-37320 |
— | ||
|
41201A
|
41201A
90033-66035 Bearing (For Rear Drive Pinion Rear)[07.2011 - 08.2011] XZU700,710..40T;XZU720,730..T3..DCRTL |
90033-66035 |
US $80.08 |
||
| replacement | |||||
|
41201A
|
41201A
SZ366-55011 Bearing (For Rear Drive Pinion Rear)[07.2011 - 08.2011] XZU700,710..40T;XZU720,730..T3..DCRTL |
SZ366-55011 |
US $80.08 |
||
|
41201A
|
41201A
SZ366-55011 Bearing (For Rear Drive Pinion Rear)[08.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
SZ366-55011 |
US $80.08 |
||
|
41201B
|
41201B
90033-66038 Bearing (For Rear Drive Pinion Front)[07.2011 - 08.2011] XZC710,XZU700,710,720,730 |
90033-66038 |
US $56.78 |
||
| replacement | |||||
|
41201B
|
41201B
SZ366-45013 Bearing (For Rear Drive Pinion Front)[07.2011 - 08.2011] XZC710,XZU700,710,720,730 |
SZ366-45013 |
US $54.51 |
||
|
41201B
|
41201B
SZ366-45013 Bearing (For Rear Drive Pinion Front)[08.2011 - 05.2017] XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,7 30,775 |
SZ366-45013 |
US $54.51 |
||
|
41201C
|
41201C
90033-11039 Oil Seal, Type T[07.2011 - 05.2017] XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,7 30,775 |
90033-11039 |
from US $29.40 |
||
|
41201G
|
41201G
90033-65001 Bearing, Differential Drive Pinion Cylindlical Roller[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90033-65001 |
US $87.36 |
||
|
41201H
|
41201H
90035-20019 Ring, Drive Pinion Cylindrical Roller Bearing Locking[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90035-20019 |
US $1.16 |
||
|
41204
|
41204
41204-37060 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41204-37060 |
US $97.55 |
||
|
41221B
|
41221B
90031-75013 Nut(For Rear Differential Ring Gear Set)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90031-75013 |
US $1.60 |
||
|
41222A
|
41222A
90031-09055 Bolt (For Rear Differential Ring Gear Set)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90031-09055 |
US $3.20 |
||
|
41231
|
41231
41231-37220 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１３．９００ |
41231-37220 |
US $10.48 |
||
|
41231
|
41231
41231-37230 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１３．９２５ |
41231-37230 |
US $10.48 |
||
|
41231
|
41231
41231-37240 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１３．９５０ |
41231-37240 |
US $10.48 |
||
|
41231
|
41231
41231-37250 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１３．９７５ |
41231-37250 |
US $10.48 |
||
|
41231
|
41231
41231-37260 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．０００ |
41231-37260 |
US $10.48 |
||
|
41231
|
41231
41231-37270 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．０２５ |
41231-37270 |
US $10.48 |
||
|
41231
|
41231
41231-37280 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．０５０ |
41231-37280 |
US $10.48 |
||
|
41231
|
41231
41231-37290 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．０７５ |
41231-37290 |
US $10.48 |
||
|
41231
|
41231
41231-37300 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．１００ |
41231-37300 |
US $10.48 |
||
|
41231
|
41231
41231-37310 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．１２５ |
41231-37310 |
US $10.48 |
||
|
41231
|
41231
41231-37320 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．１５０ |
41231-37320 |
US $10.48 |
||
|
41231
|
41231
41231-37330 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．１７５ |
41231-37330 |
US $10.48 |
||
|
41231
|
41231
41231-37340 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．２００ |
41231-37340 |
US $10.48 |
||
|
41231
|
41231
41231-37350 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．２２５ |
41231-37350 |
US $10.48 |
||
|
41231
|
41231
41231-37360 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．２５０ |
41231-37360 |
US $10.48 |
||
|
41231
|
41231
41231-37370 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．２７５ |
41231-37370 |
US $10.48 |
||
|
41231
|
41231
41231-37380 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．３００ |
41231-37380 |
US $10.48 |
||
|
41231
|
41231
41231-37390 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．３２５ |
41231-37390 |
US $10.48 |
||
|
41231
|
41231
41231-37400 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．３５０ |
41231-37400 |
US $10.48 |
||
|
41231
|
41231
41231-37410 Spacer, Rear Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝１４．３７５ |
41231-37410 |
US $10.48 |
||
|
41252
|
41252
S3734-11560 Deflector, Dust (For Rear Differential)[07.2011 - 05.2017] XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,7 30,775 |
S3734-11560 |
US $11.71 |
||
|
41301A
|
41301A
90033-66039
Bearing(For Rear Differential Case)
[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90033-66039 |
— | ||
|
41302
|
41302
41301-37020
Case Sub-Assy, Rear Differential
[07.2011 - 12.2014] XZU700,710..40T;XZU720,730..T3..DCRTL |
41301-37020 |
— | ||
| replacement | |||||
|
41302
|
41302
41301-37021 Case Sub-Assy, Rear Differential[07.2011 - 12.2014] XZU700,710..40T;XZU720,730..T3..DCRTL |
41301-37021 |
US $1,252.16 |
||
|
41302
|
41302
41301-37021 Case Sub-Assy, Rear Differential[12.2014 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41301-37021 |
US $1,252.16 |
||
|
41302A
|
41302A
90031-05044 Bolt(For Rear Differential Case)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90031-05044 |
US $12.38 |
||
|
41302N
|
41302N
41231-37210 Spacer, Differential Drive Pinion Bearing[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41231-37210 |
US $13.40 |
||
|
41315
|
41315
41315-37010 Nut, Rear Differential Bearing Adjusting[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41315-37010 |
US $29.56 |
||
|
41316
|
41316
41316-37010 Lock, Rear Differential Bearing Adjusting Nut[07.2011 - 05.2017] XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,7 30,775 |
41316-37010 |
US $2.04 |
||
|
41331
|
41331
41331-37021 Gear, Rear Differential Side[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41331-37021 |
US $59.11 |
||
|
41341
|
41341
41341-37021 Pinion, Rear Differential[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41341-37021 |
US $29.12 |
||
|
41351
|
41351
41351-37010 Washer, Rear Differential Pinion Thrust[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41351-37010 |
from US $3.32 |
||
|
41361
|
41361
41361-37020 Washer, Rear Differential Side Gear Thrust, No.1[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL 厚さ＝２．０ |
41361-37020 |
US $6.41 |
||
|
41371
|
41371
41371-37010 Spider, Rear Differential[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
41371-37010 |
US $61.01 |
||
|
41991C
|
41991C
41991-37070 Caution Plate, Rear Differential[07.2011 - 05.2017] XZU710..DCB..T5;XZU730..T3..35T;XZU710..40T..DCRTL;XZC710,XZU710,720..SCB..5F; XZU710..T3..6FC;XZU700..MTM..DCRTJ;XZU710..DCB..T4..5F;XZU700,710,720..T3..35T..DC RTK;XZU710,720..6F..30T..(DCRTJ,DCRTK) リヤ ディファレンシャル−１２インチ，最終減速比＝４．８７５; XZ |
41991-37070 |
US $1.31 |
||
|
41991C
|
41991C
41991-37150 Caution Plate, Rear Differential[07.2011 - 05.2017] XZU700..DM7;XZU710..40T..DCRTK; XZU720..T3..35T..DCRTL リヤ ディファレンシャル−１３インチ，最終減速比＝５．１４２; XZU730..T3..35T;XZU710..40T..DCRTL タイヤ＆ディスクホイール−２２５／８０Ｒ１７．５，リブ |
41991-37150 |
US $1.31 |
||
|
9003101165
|
9003101165
90031-01165 Bolt (For Propeller Shaft) |
90031-01165 |
US $2.87 |
||
|
9003101176
|
9003101176
90031-01176 New Genuine Part |
90031-01176 |
US $1.02 |
||
|
9003119101
|
9003119101
90031-19101 New Genuine Part |
90031-19101 |
US $1.02 |
||
|
9003119102
|
9003119102
90031-19102 New Genuine Part |
90031-19102 |
US $2.04 |
||
|
9003170106
|
9003170106
90031-70106 Nut, Hexagon |
90031-70106 |
US $1.02 |
||
|
9003201145
|
9003201145
90032-01145 New Genuine Part |
90032-01145 |
US $2.48 |
||
|
9003301066
|
9003301066
90033-01066 New Genuine Part |
90033-01066 |
US $3.35 |
||
|
9017930003
|
9017930003
90179-30003 Nut (For Rear Drive Pinion) |
90179-30003 |
from US $7.59 |
||
