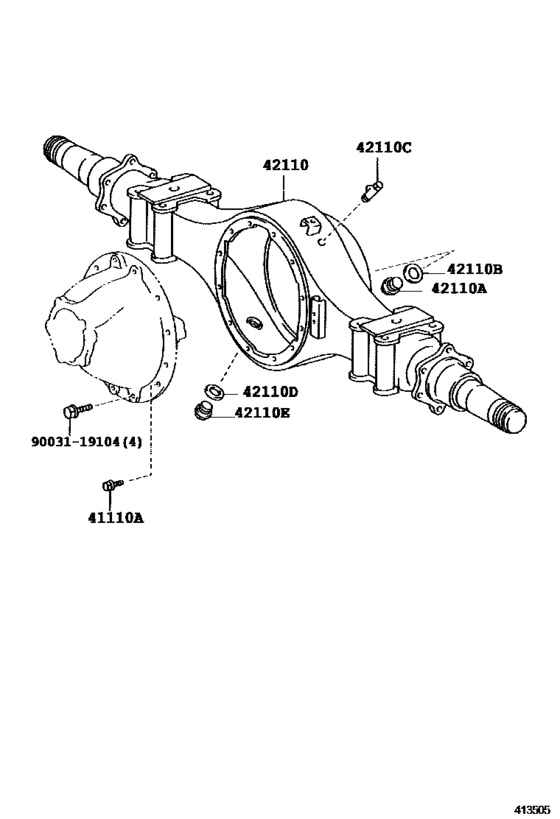

Rear Axle Housing & Differential ([07.2011 - ] 13ｲﾝﾁ ﾃﾞｨﾌｧﾚﾝｼｬﾙ (1107- )XZU700,710..40T ; (1107- )XZU720,7 30..T3..DCRTL) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XZU710
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 6F
- Loading Capacity
- 40T
- Fuel Induction
- DCRTL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110A
|
41110A
90031-19103 Bolt, No.1 (For Rear Differential Carrier Set)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90031-19103 |
US $2.04 |
||
|
42110
|
42110
42110-37851 Housing Assy, Rear Axle[07.2011 - 05.2017] XZU710..40T;XZU720,730..T3..DCRTL |
42110-37851 |
US $3,057.60 |
||
|
42110A
|
42110A
90033-41022 Plug (For Rear Axle Housing Filler)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90033-41022 |
US $4.80 |
||
|
42110B
|
42110B
42183-37010 Gasket (For Rear Axle Housing Filler Plug)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
42183-37010 |
US $1.61 |
||
|
42110C
|
42110C
33209-37010 Plug, Breather (For Rear Axle Housing)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
33209-37010 |
US $5.97 |
||
|
42110D
|
42110D
42183-37010 Gasket (For Rear Axle Housing Filler Plug)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
42183-37010 |
US $1.61 |
||
|
42110E
|
42110E
90033-41021 Plug (For Rear Axle Housing Drain)[07.2011 - 05.2017] XZU700,710..40T;XZU720,730..T3..DCRTL |
90033-41021 |
US $4.80 |
||
|
9003119104
|
9003119104
90031-19104 New Genuine Part |
90031-19104 |
US $3.20 |
