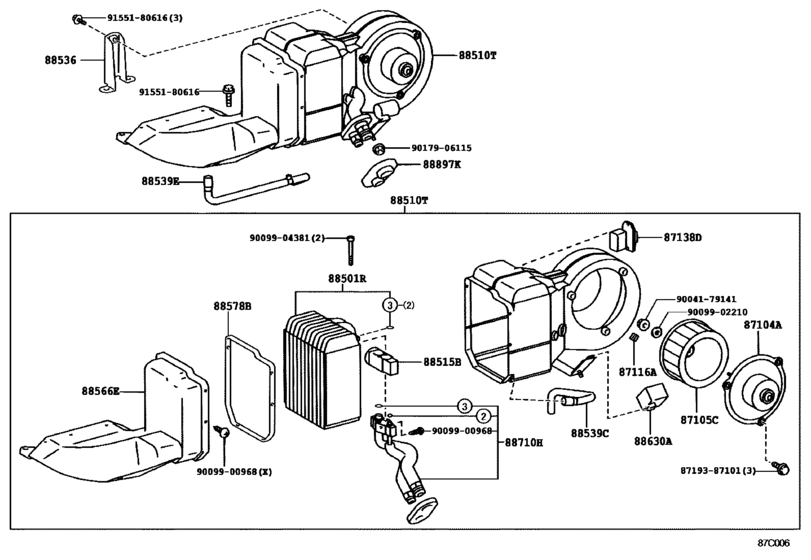

Heating & Air Conditioning - Cooler Unit ([08.2011 - ] REAR (1108- )DCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2018
- Sales region
- Europe
- Frame
- XZU710
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- CAB
- DCB
- From
- 08.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 65T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104A
|
87104A
87104-37110 Motor Sub-Assy, Blower[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
87104-37110 |
from US $179.96 |
||
|
87105C
|
87105C
87105-37020 Fan Sub-Assy, Blower, Rear[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
87105-37020 |
US $23.52 |
||
|
87116A
|
87116A
87116-97201
Spring, Holding (For Cooler Unit Case)
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
87116-97201 |
— | ||
|
87138D
|
87138D
87138-37140 Resistor, Blower (Rear)[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
87138-37140 |
US $23.85 |
||
|
88501R
|
88501R
88501-60140 Evaporator Sub-Assy (Rear)[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88501-60140 |
from US $319.74 |
||
|
88510T
|
88510T
88500-37050
Unit Assy, Cooling (Rear)
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88500-37050 |
— | ||
|
88515B
|
88515B
88515-28120 Valve, Rear Cooling Unit Expansion[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88515-28120 |
US $85.90 |
||
|
88536
|
88536
88536-37020
Bracket, Cooling Unit, No.1
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88536-37020 |
— | ||
|
88539C
|
88539C
88539-37030
Hose, Cooler Unit Drain, No.2
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88539-37030 |
— | ||
|
88539E
|
88539E
88539-37040
Hose, Cooler Unit Drain, No.3
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88539-37040 |
— | ||
|
88566E
|
88566E
88566-37040
Duct, Cooler Air, No.2
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88566-37040 |
— | ||
|
88578B
|
88578B
88578-44040
Packing, Cooling Unit, No.1
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88578-44040 |
— | ||
|
88630A
|
88630A
88630-37080
Relay Assy, Cooler
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88630-37080 |
— | ||
|
88710H
|
88710H
88710-37220 Tube Assy, Air Conditioner[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88710-37220 |
US $92.60 |
||
|
88897K
|
88897K
88897-37070
Grommet, (For Cooler Pipe)
[08.2011 - 05.2014] XZU710..GCC..IV3 AIR CONDITIONER-WITH(MANUAL)+RR COOLER |
88897-37070 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
