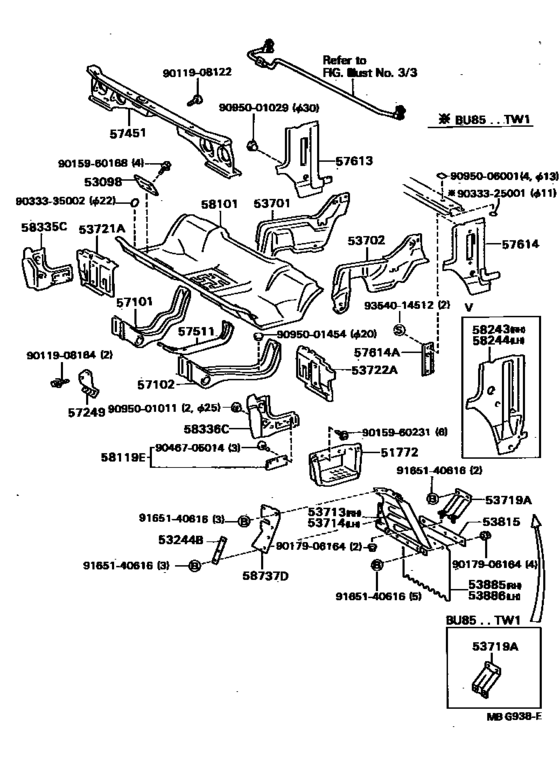

Front Floor Panel & Front Floor Member ([09.1984 - ] (8409- )SRF,TW1,TW2) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- YU60
- body
- TR
- ENGINE
- 3Y
- Model
- DYNA/TOYOACE
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 06S
- Vehicle Model
- DYN
- Deck,cab
- TW2
- Loading Capacity
- 175
- Fuel Induction
- CBR
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51772
|
51772
51771-95406 Step Plate (RH)[09.1984 - 08.1987] WU75,9#,YU6#,70,80 RH |
51771-95406 |
US $84.36 |
||
|
51772
|
51772
51772-95406 Step Plate (LH)[09.1984 - 08.1987] WU75,9#,YU6#,70,80 LH |
51772-95406 |
US $84.36 |
||
|
53098
|
53098
53098-95402 Cover Sub-Assy, Air Cleaner Inlet Hole[09.1984 - 08.1987] YU6#,70,80 |
53098-95402 |
US $9.03 |
||
|
53701
|
53701
53711-95410 Apron Sub-Assy, Front Fender, Rh[09.1984 - 08.1987] YU6#,70,80 |
53711-95410 |
US $205.30 |
||
|
53702
|
53702
53712-95414 Apron Sub-Assy, Front Fender, Lh[09.1984 - 08.1987] YU6#,70,80 |
53712-95414 |
US $254.80 |
||
| replacements | |||||
|
53702
|
53702
53712-95416 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [09.1984 - 08.1987] YU6#,70,80 |
53712-95416 |
US $251.89 |
||
|
53702
|
53702
90333-40001 Plate, Noise Control, No.1[09.1984 - 08.1987] YU6#,70,80 |
90333-40001 |
from US $1.60 |
||
|
53713
|
53713
53707-92601 Apron, Fender Side, Rh[09.1984 - 08.1986] YU60..175 |
53707-92601 |
US $173.26 |
||
|
53713
|
53713
53715-92600 Apron, Fender Side, Rh[08.1986 - 08.1987] YU60..175 |
53715-92600 |
US $104.83 |
||
|
53714
|
53714
53708-92601
Apron, Fender Side, Lh
[09.1984 - 08.1986] YU60..175 |
53708-92601 |
— | ||
|
53714
|
53714
53716-92600 Apron, Fender Side, Lh[08.1986 - 08.1987] YU60..175 |
53716-92600 |
US $104.83 |
||
|
53719A
|
53719A
53719-92600 Brace, Fender Apron[09.1984 - 08.1987] YU60,70..SRF,TW1,TW2 |
53719-92600 |
US $15.87 |
||
|
53721A
|
53721A
53721-95402 Apron, Front Fender, No.2 Rh[09.1984 - 08.1987] YU6#,70,80 |
53721-95402 |
US $43.97 |
||
| replacement | |||||
|
53721A
|
53721A
53721-37010 Apron Sub-Assy, Fender Side, Rh[09.1984 - 08.1987] YU6#,70,80 |
53721-37010 |
US $46.59 |
||
|
53722A
|
53722A
53722-95403 Apron, Front Fender, No.2 Lh[09.1984 - 08.1987] YU6#,70,80 |
53722-95403 |
US $28.10 |
||
| replacement | |||||
|
53722A
|
53722A
53722-37020 Apron Sub-Assy, Fender Side, Lh[09.1984 - 08.1987] YU6#,70,80 |
53722-37020 |
US $29.85 |
||
|
53815
|
53815
53887-92603 Plate, Mudguard Rubber Set, Front[09.1984 - 08.1987] YU60,70..SRF,TW1,TW2 |
53887-92603 |
US $8.59 |
||
|
57101
|
57101
57011-95400 Member Sub-Assy, Floor, Rh[09.1984 - 08.1987] YU6#,70,80 |
57011-95400 |
US $104.83 |
||
|
57102
|
57102
57012-92602 Menber Sub-Assy[09.1984 - 08.1987] YU60,70..SRF,TW1,TW2 |
57012-92602 |
US $154.34 |
||
| replacement | |||||
|
57102
|
57102
57012-95400 Menber Sub-Assy[09.1984 - 08.1987] YU60,70..SRF,TW1,TW2 |
57012-95400 |
US $104.83 |
||
|
57249
|
57249
57249-95400 Bracket, Flexible Hose, No.1[09.1984 - 08.1987] WU75,9#,YU6#,70,80 |
57249-95400 |
US $21.55 |
||
|
57451
|
57451
57408-95405 Member, Front Floor Cross[09.1984 - 03.1986] YU6#,70,80 |
57408-95405 |
US $301.39 |
||
| replacements | |||||
|
57451
|
57451
90950-01872 Plug, Hole, No.3(For Dash Panel)[09.1984 - 03.1986] YU6#,70,80 |
90950-01872 |
from US $2.29 |
||
|
57451
|
57451
57408-95420 Member, Front Floor Cross[09.1984 - 03.1986] YU6#,70,80 |
57408-95420 |
US $254.80 |
||
|
57451
|
57451
91661-B0820 Bolt[09.1984 - 03.1986] YU6#,70,80 |
91661-B0820 |
US $2.56 |
||
|
57451
|
57451
57408-95413 Member, Front Floor Cross[03.1986 - 08.1987] YU6#,70,80 |
57408-95413 |
US $301.39 |
||
| replacement | |||||
|
57451
|
57451
57408-95420 Member, Front Floor Cross[03.1986 - 08.1987] YU6#,70,80 |
57408-95420 |
US $254.80 |
||
|
57613
|
57613
58025-92601 Plate, Floor Side Rail, Front Rh[09.1984 - 08.1987] YU60..175 |
58025-92601 |
US $67.85 |
||
|
57614
|
57614
58026-92601 Plate, Floor Side Rail Front, Lh[09.1984 - 08.1987] YU60..175 |
58026-92601 |
US $67.85 |
||
|
57614A
|
57614A
57441-92600 Cover, Floor Side Rail Plate[06.1985 - 08.1987] YU60..175 |
57441-92600 |
US $16.16 |
||
|
57614A
|
57614A
57441-92601
Cover, Floor Side Rail
[09.1984 - 06.1985] YU60..175 LH,W/RR HEATER |
57441-92601 |
— | ||
|
57614A
|
57614A
57614-95400 Cover, Floor Side Rail[09.1984 - 06.1985] YU60..175 RH,W/RR HEATER |
57614-95400 |
US $14.27 |
||
|
58101
|
58101
58101-95434
Pan Sub-Assy, Front Floor
[09.1984 - 08.1987] YU6#,70,80 |
58101-95434 |
— | ||
| replacement | |||||
|
58101
|
58101
58101-95448 Pan Sub-Assy, Front Floor[09.1984 - 08.1987] YU6#,70,80 |
58101-95448 |
US $610.06 |
||
|
58119E
|
58119E
58119-95400 Cover, Front Floor Side, Front[09.1984 - 08.1987] WU75,9#,YU6#,70,80 |
58119-95400 |
US $8.30 |
||
|
58335C
|
58335C
58335-95401 Plate, Floor Side, Front Rh[09.1984 - 08.1987] WU75,9#,YU6#,70,80 |
58335-95401 |
US $39.46 |
||
|
58336C
|
58336C
58336-95401 Plate, Floor Side, Front Lh[09.1984 - 08.1987] WU75,9#,YU6#,70,80 |
58336-95401 |
US $39.46 |
||
|
9011908122
|
9011908122
90119-08122 New Genuine Part |
90119-08122 |
US $1.75 |
||
| replacement | |||||
|
9011908122
|
9011908122
90119-08C00 New Genuine Part |
90119-08C00 |
US $1.28 |
||
|
9011908164
|
9011908164
90119-08164
Bolt
|
90119-08164 |
— | ||
| replacement | |||||
|
9011908164
|
9011908164
90119-08802 BOLT WWASHER |
90119-08802 |
US $1.44 |
||
|
9015960168
|
9015960168
90159-60168
New Genuine Part
|
90159-60168 |
— | ||
|
9015960231
|
9015960231
90159-60231
New Genuine Part
|
90159-60231 |
— | ||
| replacement | |||||
|
9015960231
|
9015960231
90159-60366 New Genuine Part |
90159-60366 |
US $1.92 |
||
|
9017906164
|
9017906164
90179-06164
Nut, Wire Adjusting, No.1
|
90179-06164 |
— | ||
| replacement | |||||
|
9017906164
|
9017906164
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.94 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046705014
|
9046705014
90467-05014 Clip(for Luggage Compartment Trim Rear Cover) |
90467-05014 |
US $1.46 |
||
| replacement | |||||
|
9046705014
|
9046705014
90467-05014-B0 Clip, Roof Headlining |
90467-05014-B0 |
US $1.38 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $2.72 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001454
|
9095001454
90950-01454 New Genuine Part |
90950-01454 |
US $1.46 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9354014512
|
9354014512
93540-14512
New Genuine Part
|
93540-14512 |
— | ||
| replacement | |||||
|
9354014512
|
9354014512
93540-54512 New Genuine Part |
93540-54512 |
US $1.02 |
||
