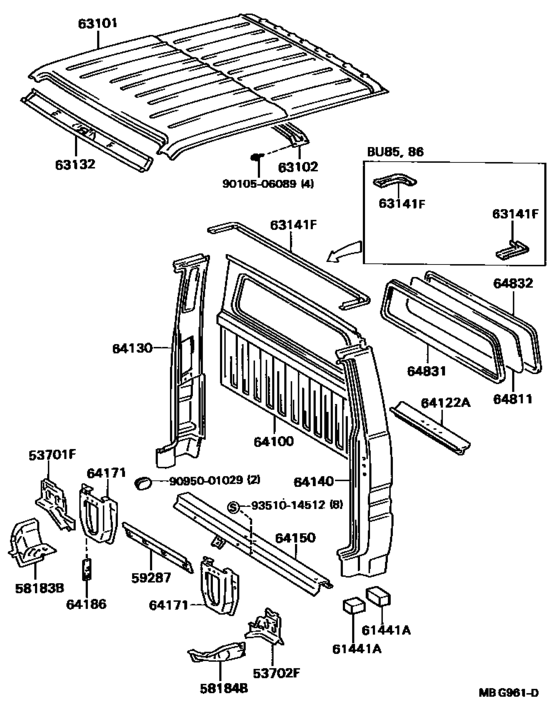

Roof Panel & Back Panel ([09.1984 - ] (8409- )TW1) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- YU60
- body
- TR
- ENGINE
- 3Y
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Deck,cab
- TW1
- Driver's Position
- LHD
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701F
|
53701F
53703-92604
Apron Sub-Assy, Front Fender, No.2 Rh
[09.1984 - 08.1987] YU7#;YU60,62..TW1 |
53703-92604 |
— | ||
|
53702F
|
53702F
53704-92604
Apron Sub-Assy, Front Fender, No.2 Lh
[09.1984 - 08.1987] YU7#;YU60,62..TW1 |
53704-92604 |
— | ||
|
58183B
|
58183B
58183-95402 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] YU6#,7#,8# |
58183-95402 |
US $55.62 |
||
| replacement | |||||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] YU6#,7#,8# |
58183-95405 |
US $55.47 |
||
|
58184B
|
58184B
58184-95401 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] YU6#,7#,8# |
58184-95401 |
US $55.62 |
||
| replacement | |||||
|
58184B
|
58184B
58184-95404 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] YU6#,7#,8# |
58184-95404 |
US $55.47 |
||
|
59287
|
59287
59287-92602 Base, Transmission Cover, Center[09.1984 - 08.1987] YU7#;YU60,62..TW1 |
59287-92602 |
US $77.17 |
||
|
63101
|
63101
63115-92603 Panel Sub-Assy, Roof[09.1984 - 08.1987] YU60,62..TW1 |
63115-92603 |
US $828.46 |
||
|
63101
|
63101
63115-92604 Panel Sub-Assy, RoofROOF [09.1984 - 08.1987] YU60,62..TW1 W/*RV |
63115-92604 |
US $873.60 |
||
|
63102
|
63102
63021-92600 Reinforcement Sub-Assy, Roof Panel, Front[09.1984 - 08.1987] YU60,62..TW1 |
63021-92600 |
US $91.73 |
||
|
63132
|
63132
63132-95418 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] YU6#,70,80..DMP,TR,V W/SUN VISOR=ASSISTANT |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] YU6#,70,80..DMP,TR,V W/SUN VISOR=ASSISTANT |
63132-37010 |
US $90.27 |
||
|
63132
|
63132
63132-95420 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] YU6#,70,80..BUS,DMP,TR W/SUN VISOR=ASSISTANT & *RV |
63132-95420 |
US $88.82 |
||
| replacement | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] YU6#,70,80..BUS,DMP,TR W/SUN VISOR=ASSISTANT & *RV |
63132-37010 |
US $90.27 |
||
|
63141F
|
63141F
63141-95401 Channel, Roof Drip, Rear[09.1984 - 08.1987] YU60,62..TW1 |
63141-95401 |
US $55.18 |
||
|
64100
|
64100
64101-95402 Panel Assy, Back, Outer[09.1984 - 08.1987] YU60,62..TW1 |
64101-95402 |
US $458.64 |
||
|
64122A
|
64122A
64122-95403
Baffle, Dust Rear Body
[09.1984 - 09.1985] YU60..TW1 |
64122-95403 |
— | ||
|
64122A
|
64122A
64122-95A06 Baffle, Dust Rear Body[09.1985 - 08.1987] YU60,62..TW1 |
64122-95A06 |
US $18.78 |
||
|
64130
|
64130
64130-95400 Panel Assy, Back Corner, Rh[09.1984 - 08.1987] YU60,62..TW1 |
64130-95400 |
US $241.70 |
||
|
64140
|
64140
64140-95408 Panel Assy, Back Corner, Lh[09.1984 - 08.1987] YU60,62..TW1 |
64140-95408 |
US $241.70 |
||
|
64150
|
64150
64107-92606 Frame Assy, BackBACK [08.1985 - 08.1987] YU7#..BUS;YU60,62..TW1 |
64107-92606 |
US $132.50 |
||
|
64150
|
64150
64107-92610
Frame Assy, Back
[09.1984 - 08.1985] YU70..BUS;YU60..TW1 |
64107-92610 |
— | ||
|
64150
|
64150
64107-92613 Frame Assy, BackBACK [08.1985 - 10.1985] YU70..BUS;YU60..TW1 *SAA & OMAN SPEC |
64107-92613 |
US $246.06 |
||
|
64150
|
64150
64107-92618
Frame Assy, Back
[09.1984 - 08.1985] YU70..BUS;YU60..TW1 *SAA & OMAN SPEC |
64107-92618 |
— | ||
|
64171
|
64171
64171-95410 Bracket, Cab Rear Mounting[09.1984 - 08.1987] YU7#;YU60,62..TW1 |
64171-95410 |
US $123.76 |
||
|
64186
|
64186
64186-92600 Retainer, Rear Mounting BracketREAR MOUNTING BRACKET [09.1984 - 10.1985] YU70;YU60..TW1 *SAA & OMAN SPEC |
64186-92600 |
US $6.84 |
||
| replacement | |||||
|
64186
|
64186
64186-95A00 Retainer, Rear Mounting Bracket[09.1984 - 10.1985] YU70;YU60..TW1 *SAA & OMAN SPEC |
64186-95A00 |
US $4.95 |
||
|
64186
|
64186
64186-95A00 Retainer, Rear Mounting Bracket[12.1985 - 08.1987] YU7#;YU60,62..TW1 *SAA & *47 |
64186-95A00 |
US $4.95 |
||
|
64811
|
64811
64811-95410 Glass, Back Window[09.1984 - 08.1987] RU75,85,WU9# *TEM,T=3.5,*TEM,T=3.5; YU60,62..TW1 *TEM,T=3.5,*TEM,T=3.5 |
64811-95410 |
US $106.29 |
||
| replacement | |||||
|
64811
|
64811
64811-37080 Glass, Back Window[09.1984 - 08.1987] RU75,85,WU9# *TEM,T=3.5,*TEM,T=3.5; YU60,62..TW1 *TEM,T=3.5,*TEM,T=3.5 |
64811-37080 |
US $264.99 |
||
|
64831
|
64831
64831-95016 Weatherstrip, Back Window Glass[09.1984 - 08.1987] RU75,85,WU9#; YU60,62..TW1 |
64831-95016 |
US $26.35 |
||
| replacement | |||||
|
64831
|
64831
64831-37051 Weatherstrip, Back Window Glass[09.1984 - 08.1987] RU75,85,WU9#; YU60,62..TW1 |
64831-37051 |
US $75.24 |
||
|
64832
|
64832
64832-95013
Key, Back Window Weatherstrip
[09.1984 - 08.1987] RU75,85,WU9#; YU60,62..TW1 |
64832-95013 |
— | ||
| replacement | |||||
|
64832
|
64832
64832-37040 Key, Back Window Weatherstrip[09.1984 - 08.1987] RU75,85,WU9#; YU60,62..TW1 |
64832-37040 |
US $11.36 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9351014512
|
9351014512
93510-14512 New Genuine Part |
93510-14512 |
US $1.46 |
||
