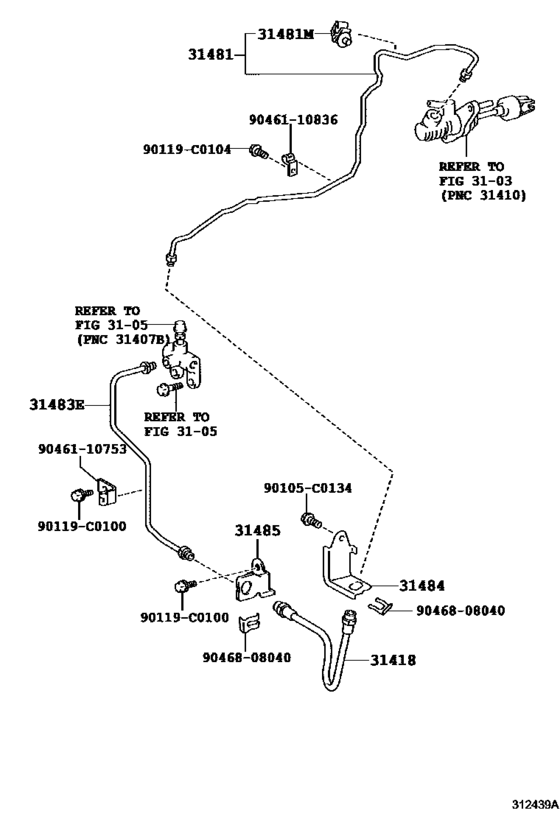

Clutch Pedal & Flexible Hose ([06.2011 - ] (1106- )ZGR20) Diagram Toyota E'Z
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- ZGR20
- grade
- G
- ENGINE
- 1ZRFE
- TRANSMISSION
- MTM
- From
- 06.2011
- To
- 12.2016
- Gear Shift Type
- 6F
- Seating Capacity
- 05S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90947-02E28 Hose, ClutchCLUTCH [06.2011 -] ZGR20,21..6F |
90947-02E28 |
US $11.53 |
||
|
31481
|
31481
31481-02270
Tube, Clutch Master Cylinder To Flexible Hose
[06.2011 -] ZGR20,21..6F |
31481-02270 |
— | ||
|
31481M
|
31481M
90949-01D46 Clamp, Brake Tube, No.7[06.2011 -] ZGR20,21..6F |
90949-01D46 |
US $1.97 |
||
|
31483E
|
31483E
31483-0F050
Tube, Bleeder Clutch Release
[06.2011 -] ZGR20 |
31483-0F050 |
— | ||
|
31484
|
31484
31484-0F010
Bracket, Flexible Hose(For Clutch)
[06.2011 -] ZGR20,21..6F |
31484-0F010 |
— | ||
|
31485
|
31485
31484-0F020
Bracket, Flexible Hose, No.2(For Clutch)
[06.2011 -] ZGR20,21..6F |
31484-0F020 |
— | ||
|
90105C0134
|
90105C0134
90105-C0134
New Genuine Part
|
90105-C0134 |
— | ||
|
90119C0100
|
90119C0100
90119-C0100
New Genuine Part
|
90119-C0100 |
— | ||
|
90119C0104
|
90119C0104
90119-C0104
New Genuine Part
|
90119-C0104 |
— | ||
|
9046110753
|
9046110753
90461-10753 New Genuine Part |
90461-10753 |
US $4.02 |
||
|
9046110836
|
9046110836
90461-10836 New Genuine Part |
90461-10836 |
US $1.31 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
