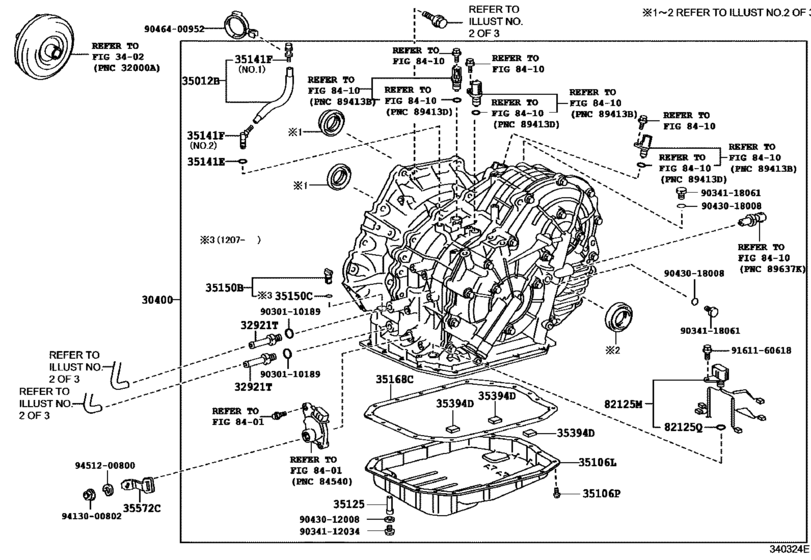

Transaxle Assy(Cvt) ([06.2011 - ] K111 (1106- )ZGR22) Diagram Toyota E'Z
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ZGR22
- grade
- G
- ENGINE
- 3ZRFE
- TRANSMISSION
- ATM
- From
- 06.2011
- To
- 09.2013
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-20030 Transaxle Assy, Continuously VariableCONTINUOUSLY VARIABLE [06.2011 - 09.2013] ZGR22 K111 |
30400-20030 |
US $4,266.08 |
||
|
32921T
|
32921T
90404-13004
Union(For Oil Cooler Tube)
[06.2011 - 09.2013] ZGR22 |
90404-13004 |
— | ||
| replacement | |||||
|
32921T
|
32921T
90404-13010 Union(For Oil Cooler Tube)[06.2011 - 09.2013] ZGR22 |
90404-13010 |
US $5.56 |
||
|
35012B
|
35012B
3510A-44010 Hose Sub-Assy, Transmission BreatherTRANSMISSION BREATHER [06.2011 - 01.2012] ZGR22 |
3510A-44010 |
US $14.27 |
||
| replacement | |||||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[06.2011 - 01.2012] ZGR22 |
3510A-44012 |
US $17.81 |
||
|
35012B
|
35012B
3510A-44011 Hose Sub-Assy, Transmission Breather[01.2012 - 04.2012] ZGR22 |
3510A-44011 |
US $14.27 |
||
| replacement | |||||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[01.2012 - 04.2012] ZGR22 |
3510A-44012 |
US $17.81 |
||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[04.2012 - 09.2013] ZGR22 |
3510A-44012 |
US $17.81 |
||
|
35106L
|
35106L
35106-20031
Pan Sub-Assy, Transaxle Oil(Cvt)
[06.2011 - 09.2013] ZGR22 |
35106-20031 |
— | ||
| replacements | |||||
|
35106L
|
35106L
35106-20032 Pan Sub-Assy, Transaxle Oil(Cvt)[06.2011 - 09.2013] ZGR22 |
35106-20032 |
from US $70.76 |
||
|
35106L
|
35106L
35125-44071 Tube, Transmission Oil Filler, No.1[06.2011 - 09.2013] ZGR22 |
35125-44071 |
from US $2.69 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[06.2011 - 09.2013] ZGR22 |
90119-06173 |
from US $0.76 |
||
|
35125
|
35125
35125-44070
Tube, Transmission Oil Filler, No.1
[06.2011 - 09.2013] ZGR22 |
35125-44070 |
— | ||
| replacement | |||||
|
35125
|
35125
35125-44071 Tube, Transmission Oil Filler, No.1[06.2011 - 09.2013] ZGR22 |
35125-44071 |
from US $2.69 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[06.2011 - 04.2016] ZGR21,22..CVFC |
90301-06005 |
from US $2.30 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[06.2011 - 09.2013] ZGR22 NO.1 |
90930-03149 |
from US $3.94 |
||
|
35141F
|
35141F
90930-03164 Plug, Breather(For Transaxle)[06.2011 - 09.2013] ZGR22 NO.2 |
90930-03164 |
US $6.45 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[06.2011 - 07.2012] ZGR21,22..CVFC |
35150-44010 |
from US $6.09 |
||
|
35150B
|
35150B
35150-48010 Plug, Transaxle Hole[07.2012 -] ZGR21,22..CVFC |
35150-48010 |
US $5.02 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[07.2012 -] ZGR21,22..CVFC |
90301-09173 |
from US $2.03 |
||
|
35168C
|
35168C
35168-20010 Gasket, Transaxle Oil Pan(Cvt)[06.2011 - 09.2013] ZGR22 |
35168-20010 |
from US $13.51 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[06.2011 -] ZGR21,22..CVFC |
35394-30011 |
from US $5.62 |
||
|
35572C
|
35572C
35572-42030 Lever, Transmission Control Shaft[06.2011 - 09.2013] ZGR22 |
35572-42030 |
US $9.32 |
||
|
82125M
|
82125M
82125-44020 Wire, Transmission[06.2011 - 09.2013] ZGR22 |
82125-44020 |
US $18.92 |
||
|
82125Q
|
82125Q
90301-21009 Ring, O(For Transmission Wire)[06.2011 -] ZGR21,22..CVFC |
90301-21009 |
from US $2.22 |
||
|
9030110189
|
9030110189
90301-10189 Ring, O(For Oil Cooler Tube Union) |
90301-10189 |
from US $2.63 |
||
|
9034112034
|
9034112034
90341-12034 Plug Sub-Assy, Drain (Atm) |
90341-12034 |
from US $3.26 |
||
|
9034118061
|
9034118061
90341-18061 Plug, Hole (CVT TC) |
90341-18061 |
US $5.56 |
||
|
9043012008
|
9043012008
90430-12008 Gasket (For Shift Inter Lock Plate) |
90430-12008 |
from US $0.90 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9046400952
|
9046400952
90464-00952 New Genuine Part |
90464-00952 |
US $3.05 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
