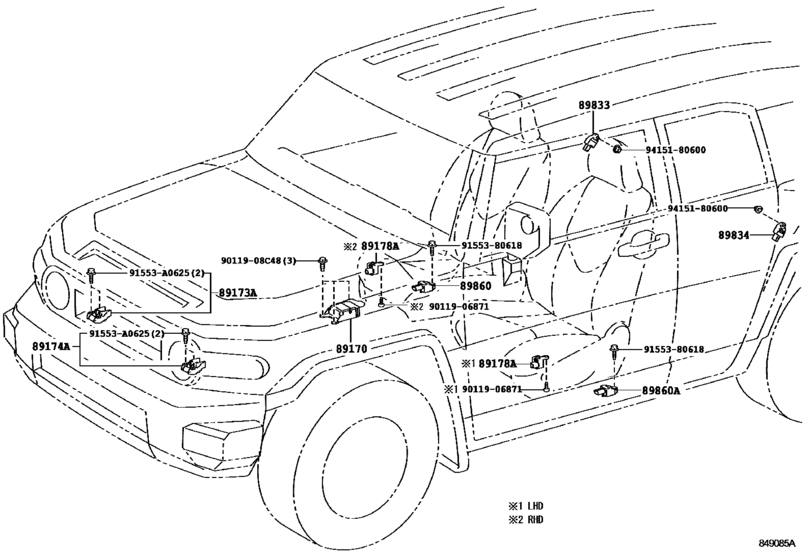

Air Bag ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-35280
Sensor Assy, Air Bag
[07.2007 - 11.2010] GSJ15 |
89170-35280 |
— | ||
|
89170
|
89170
89170-35290
Sensor Assy, Air Bag
[07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89170-35290 |
— | ||
|
89170
|
89170
89170-35340 Sensor Assy, Air Bag[04.2012 - 08.2012] GSJ15..CHI; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89170-35340 |
US $493.53 |
||
|
89170
|
89170
89170-35370
Sensor Assy, Air Bag
[08.2011 - 03.2012] GSJ15..CHI; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89170-35370 |
— | ||
| replacement | |||||
|
89170
|
89170
89170-35340 Sensor Assy, Air Bag[08.2011 - 03.2012] GSJ15..CHI; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89170-35340 |
US $493.53 |
||
|
89170
|
89170
89170-35410
Sensor Assy, Air Bag
[08.2012 - 12.2015] GSJ15..CHI |
89170-35410 |
— | ||
|
89173A
|
89173A
89173-39375 Sensor, Air Bag, Front Rh[07.2007 - 11.2010] GSJ15 |
89173-39375 |
US $110.66 |
||
|
89173A
|
89173A
89173-39455 Sensor, Air Bag, Front Rh[08.2012 -] GSJ15..CHI,GCC,GEN,SA |
89173-39455 |
from US $87.70 |
||
|
89174A
|
89174A
89173-39375 Sensor, Air Bag, Front Rh[07.2007 - 11.2010] GSJ15 |
89173-39375 |
US $110.66 |
||
|
89174A
|
89174A
89173-39455 Sensor, Air Bag, Front Rh[08.2012 -] GSJ15..CHI,GCC,GEN,SA |
89173-39455 |
from US $87.70 |
||
|
89178A
|
89178A
89178-0W010 Sensor, Seat Position Air Bag[07.2007 - 11.2010] GSJ15 |
89178-0W010 |
US $38 |
||
|
89833
|
89833
89831-35020 Sensor, Air Bag, Rear RhAIR BAG, REAR RH [07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35020 |
US $147.06 |
||
|
89833
|
89833
89831-35040 Sensor, Air Bag, Rear Rh[08.2012 -] GSJ15..CHI,SA; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35040 |
US $110.66 |
||
|
89834
|
89834
89831-35020 Sensor, Air Bag, Rear RhAIR BAG, REAR RH [07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35020 |
US $147.06 |
||
|
89834
|
89834
89831-35040 Sensor, Air Bag, Rear Rh[08.2012 -] GSJ15..CHI,SA; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35040 |
US $110.66 |
||
|
89860
|
89860
89831-35010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35010 |
US $147.06 |
||
| replacement | |||||
|
89860
|
89860
89831-35011 Sensor Assy, Side Air Bag, Rh[07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35011 |
US $147.06 |
||
|
89860
|
89860
89831-35011 Sensor Assy, Side Air Bag, Rh[08.2011 - 08.2012] GSJ15..ARL,CHI,SA; GSJ15..GEN;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35011 |
US $147.06 |
||
|
89860
|
89860
89831-75020 Sensor, Air Bag, Rear RhAIR BAG, REAR RH [08.2012 -] GSJ15..CHI,SA; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-75020 |
US $100.32 |
||
|
89860A
|
89860A
89831-35010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35010 |
US $147.06 |
||
| replacement | |||||
|
89860A
|
89860A
89831-35011 Sensor Assy, Side Air Bag, Rh[07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35011 |
US $147.06 |
||
|
89860A
|
89860A
89831-35011 Sensor Assy, Side Air Bag, Rh[08.2011 - 08.2012] GSJ15..ARL,CHI,SA; GSJ15..GEN;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-35011 |
US $147.06 |
||
|
89860A
|
89860A
89831-75020 Sensor, Air Bag, Rear RhAIR BAG, REAR RH [08.2012 -] GSJ15..CHI,SA; GSJ15..GEN..LHD;GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD) |
89831-75020 |
US $100.32 |
||
|
91553A0625
|
91553A0625
91553-A0625 Direct |
91553-A0625 |
US $1.08 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
9011906871
|
9011906871
90119-06871 BOLT WWASHER |
90119-06871 |
US $1.08 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
