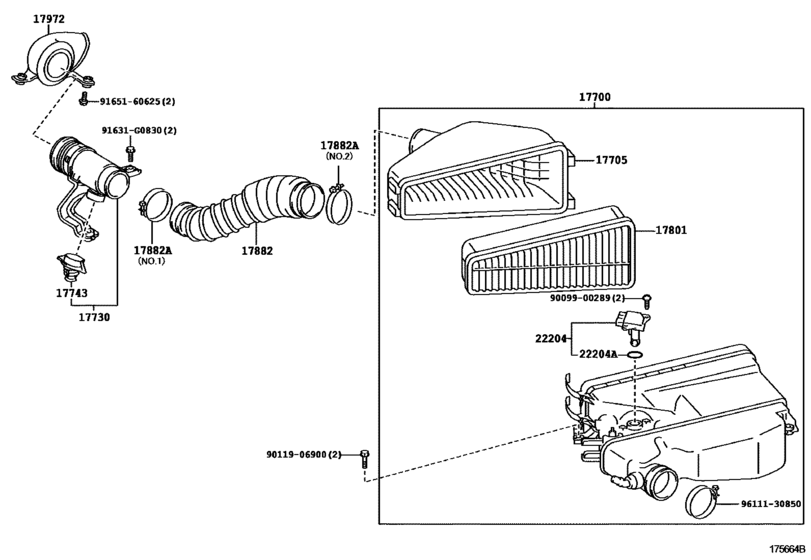

Air Cleaner ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-31541 Cleaner Assy, Air[07.2007 - 08.2009] 1GRFE..GSJ15 |
17700-31541 |
US $317.41 |
||
| replacement | |||||
|
17700
|
17700
17700-31542 Cleaner Assy, Air[07.2007 - 08.2009] 1GRFE..GSJ15 |
17700-31542 |
from US $368.16 |
||
|
17700
|
17700
17700-31880 Cleaner Assy, AirAIR [08.2009 - 11.2010] 1GRFE..GSJ15 |
17700-31880 |
US $279.55 |
||
| replacement | |||||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[08.2009 - 11.2010] 1GRFE..GSJ15 |
17700-31882 |
from US $211.12 |
||
|
17700
|
17700
17700-31881
Cleaner Assy, Air
[06.2011 - 07.2011] 1GRFE..GSJ15 |
17700-31881 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[06.2011 - 07.2011] 1GRFE..GSJ15 |
17700-31882 |
from US $211.12 |
||
|
17700
|
17700
17700-31882 Cleaner Assy, Air[07.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17700-31882 |
from US $211.12 |
||
|
17705
|
17705
17705-31090
Cap Sub-Assy, Air Cleaner
[07.2007 - 08.2009] 1GRFE..GSJ15 |
17705-31090 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-0P010 Cap Sub-Assy, Air Cleaner[07.2007 - 08.2009] 1GRFE..GSJ15 |
17705-0P010 |
US $48.75 |
||
|
17705
|
17705
17705-31370
Cap Sub-Assy, Air Cleaner
[08.2009 - 11.2010] 1GRFE..GSJ15 |
17705-31370 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[08.2009 - 11.2010] 1GRFE..GSJ15 |
17705-31371 |
— | ||
|
17705
|
17705
17705-31371
Cap Sub-Assy, Air Cleaner
[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17705-31371 |
— | ||
|
17730
|
17730
17730-31030
Precleaner Assy, Air W/hose
[07.2007 - 08.2009] 1GRFE..GSJ15 |
17730-31030 |
— | ||
|
17743
|
17743
17743-50010
Valve, Dust Relief
[08.2009 - 11.2010] 1GRFE..GSJ15 |
17743-50010 |
— | ||
|
17743
|
17743
17743-75010 Valve, Dust ReliefDUST RELIEF [07.2007 - 08.2009] 1GRFE..GSJ15 |
17743-75010 |
US $3.55 |
||
|
17801
|
17801
17801-31090 Element Sub-Assy, Air Cleaner Filter[07.2007 - 08.2009] 1GRFE..GSJ15 |
17801-31090 |
from US $47.16 |
||
|
17801
|
17801
17801-38050
Element Sub-Assy, Air Cleaner Filter
[08.2009 - 11.2010] 1GRFE..GSJ15 |
17801-38050 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[08.2009 - 11.2010] 1GRFE..GSJ15 |
17801-38051 |
from US $48.34 |
||
|
17801
|
17801
17801-38051 Element Sub-Assy, Air Cleaner Filter[07.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17801-38051 |
from US $48.34 |
||
|
17882
|
17882
17882-31080 Hose, Air Cleaner, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
17882-31080 |
US $64.94 |
||
|
17882A
|
17882A
96111-30980 Clamp(For Air Cleaner Hose, No.2)[07.2007 - 08.2009] 1GRFE..GSJ15 NO.1 |
96111-30980 |
US $5.59 |
||
|
17882A
|
17882A
96111-31120 Clamp(For Air Cleaner Hose, No.2)[07.2007 - 08.2009] 1GRFE..GSJ15 NO.2 |
96111-31120 |
US $1.05 |
||
|
17972
|
17972
17971-31030 Inlet, Cool Air, No.2[08.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17971-31030 |
US $36.25 |
||
|
17972
|
17972
17972-31010 Inlet, Cool Air, No.2COOL AIR, NO.2 [07.2007 - 11.2010] 1GRFE..GSJ15 |
17972-31010 |
US $59.26 |
||
|
22204
|
22204
22204-0T040 Meter Sub-Assy, Intake Air Flow[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0T040 |
22204-0T040 |
US $221.31 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0T040 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-0V010
Meter Sub-Assy, Intake Air Flow
[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V010 |
22204-0V010 |
— | ||
|
22204
|
22204
22204-0V020 Meter Sub-Assy, Intake Air Flow[06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V020 |
22204-0V020 |
US $133.61 |
||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-0V020 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[07.2007 - 08.2009] 1GRFE..GSJ15 |
22204-22010 |
from US $130.38 |
||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [06.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK 22204-28010 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-37010
Meter Sub-Assy, Intake Air Flow
[08.2009 - 11.2010] 1GRFE..GSJ15 |
22204-37010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [08.2009 - 11.2010] 1GRFE..GSJ15 |
22204-28010 |
from US $130.15 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[07.2007 - 08.2009] 1GRFE..GSJ15 |
90099-14141 |
from US $1.06 |
||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
|
9011906900
|
9011906900
90119-06900 BOLT WWASHER |
90119-06900 |
from US $0.76 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.87 |
||
|
9611130850
|
9611130850
96111-30850
CLAMP HOSE
|
96111-30850 |
— | ||
