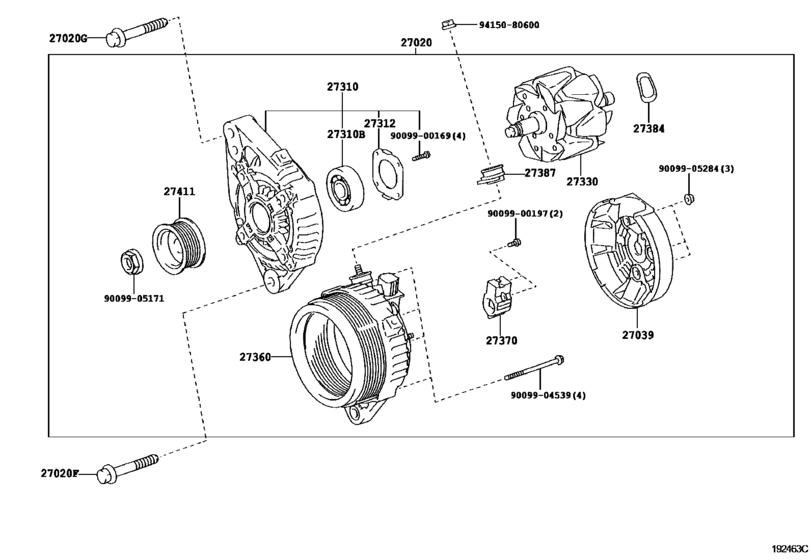

Alternator ([07.2007 - 08.2009] 12V 100A (0707-0908)1GRFE..CHI,GEN) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31120 Alternator Assy[07.2007 - 08.2009] 1GRFE..GSJ15..CHI,GEN 12V 100A |
27060-31120 |
from US $1,009.89 |
||
|
27020
|
27020
27060-31180
Alternator Assy
[08.2009 - 11.2010] 1GRFE..GSJ15 12V 100A |
27060-31180 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-31260 Alternator Assy[08.2009 - 11.2010] 1GRFE..GSJ15 12V 100A |
27060-31260 |
from US $856.63 |
||
|
27020
|
27020
27060-31260 Alternator Assy[08.2014 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA 12V 100A |
27060-31260 |
from US $856.63 |
||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[08.2009 - 11.2010] 1GRFE..GSJ15 |
91552-81040 |
from US $1.12 |
||
|
27020F
|
27020F
91642-81065 Bolt(For Alternator)[07.2007 - 08.2009] 1GRFE..GSJ15 |
91642-81065 |
from US $1.25 |
||
|
27020G
|
27020G
91552-81070 Bolt(For Alternator)[08.2009 - 11.2010] 1GRFE..GSJ15 |
91552-81070 |
from US $1.48 |
||
|
27020G
|
27020G
91642-81065 Bolt(For Alternator)[07.2007 - 08.2009] 1GRFE..GSJ15 |
91642-81065 |
from US $1.25 |
||
|
27039
|
27039
27039-26170
Cover, Alternator Rear End
[07.2007 - 08.2009] 1GRFE..GSJ15..CHI,GEN |
27039-26170 |
— | ||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[08.2009 - 11.2010] 1GRFE..GSJ15 |
27039-31390 |
— | ||
|
27310
|
27310
27310-31210
Frame Assy, Drive End, Alternator
[07.2007 - 08.2009] 1GRFE..GSJ15..CHI,GEN |
27310-31210 |
— | ||
|
27310
|
27310
27310-31430
Frame Assy, Drive End, Alternator
[08.2009 - 11.2010] 1GRFE..GSJ15 |
27310-31430 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
90099-10223 |
from US $10.15 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
27312-72100 |
— | ||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
27330-30070 |
— | ||
|
27360
|
27360
27360-31320
Coil Assy, Alternator
[07.2007 - 08.2009] 1GRFE..GSJ15..CHI,GEN |
27360-31320 |
— | ||
|
27360
|
27360
27360-31390
Coil Assy, Alternator
[08.2009 - 11.2010] 1GRFE..GSJ15 |
27360-31390 |
— | ||
|
27360
|
27360
27360-31520
Coil Assy, Alternator
[08.2014 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
27360-31520 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
27370-31220 |
from US $19.11 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[07.2007 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
27387-20130 |
from US $4.02 |
||
|
27411
|
27411
27411-31210 Pulley, Alternator[07.2007 - 08.2009] 1GRFE..GSJ15..CHI,GEN |
27411-31210 |
from US $16.25 |
||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.39 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
