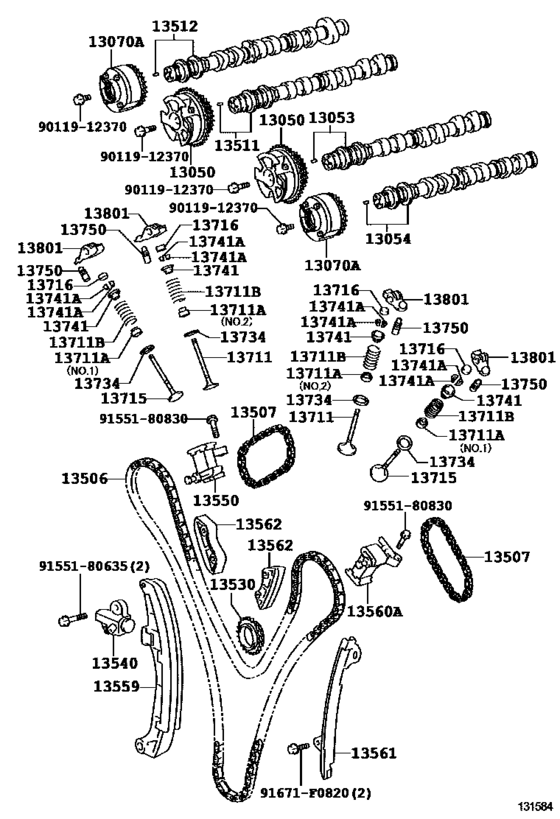

Camshaft & Valve ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-31030 Gear Assy, Camshaft Timing[07.2007 - 08.2009] 1GRFE..GSJ15 |
13050-31030 |
from US $167.01 |
||
|
13050
|
13050
13050-31190 Gear Assy, Camshaft Timing[08.2009 - 11.2010] 1GRFE..GSJ15 |
13050-31190 |
from US $168.51 |
||
|
13053
|
13053
13053-31010 Camshaft Sub-Assy, No.3[07.2007 - 08.2009] 1GRFE..GSJ15 |
13053-31010 |
from US $450.78 |
||
|
13053
|
13053
13053-31090 Camshaft Sub-Assy, No.3NO.3 [08.2009 - 11.2010] 1GRFE..GSJ15 |
13053-31090 |
US $463.01 |
||
|
13054
|
13054
13054-31010 Camshaft Sub-Assy, No.4[07.2007 - 08.2009] 1GRFE..GSJ15 |
13054-31010 |
from US $437.57 |
||
|
13054
|
13054
13054-31090 Camshaft Sub-Assy, No.4NO.4 [08.2009 - 11.2010] 1GRFE..GSJ15 |
13054-31090 |
US $463.01 |
||
|
13070A
|
13070A
13070-31030 Gear Assy, Camshaft Timing ExhaustCAMSHAFT TIMING EXHAUST [08.2009 - 11.2010] 1GRFE..GSJ15 |
13070-31030 |
from US $228.46 |
||
|
13506
|
13506
13506-31010 Chain Sub-Assy[07.2007 - 08.2009] 1GRFE..GSJ15 |
13506-31010 |
from US $111.68 |
||
|
13506
|
13506
13506-31040 Chain Sub-Assy[08.2009 - 11.2010] 1GRFE..GSJ15 |
13506-31040 |
from US $108.66 |
||
|
13507
|
13507
13507-31010 Chain Sub-Assy, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
13507-31010 |
from US $33.59 |
||
|
13507
|
13507
13507-31020 Chain Sub-Assy, No.2[08.2009 - 11.2010] 1GRFE..GSJ15 |
13507-31020 |
from US $33.80 |
||
|
13511
|
13511
13501-31040 Camshaft[07.2007 - 08.2009] 1GRFE..GSJ15 |
13501-31040 |
from US $450.78 |
||
|
13511
|
13511
13501-31120 Camshaft[08.2009 - 11.2010] 1GRFE..GSJ15 |
13501-31120 |
US $487.47 |
||
|
13512
|
13512
13502-31010 Camshaft, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
13502-31010 |
from US $437.57 |
||
|
13512
|
13512
13502-31090 Camshaft, No.2NO.2 [08.2009 - 11.2010] 1GRFE..GSJ15 |
13502-31090 |
US $463.01 |
||
|
13530
|
13530
13530-31011 Sprocket Assy, Idle[12.2007 - 08.2009] 1GRFE..GSJ15 |
13530-31011 |
from US $12.60 |
||
|
13530
|
13530
13530-31021 Sprocket Assy, Idle[08.2009 - 11.2010] 1GRFE..GSJ15 |
13530-31021 |
from US $10.81 |
||
|
13540
|
13540
13540-31011 Tensioner Assy, Chain, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
13540-31011 |
from US $58.05 |
||
|
13540
|
13540
13540-31031 Tensioner Assy, Chain, No.1[08.2009 - 11.2010] 1GRFE..GSJ15 |
13540-31031 |
from US $57.44 |
||
|
13550
|
13550
13550-31010 Tensioner Assy, Chain, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
13550-31010 |
from US $67.43 |
||
|
13550
|
13550
13550-31020 Tensioner Assy, Chain, No.2[08.2009 - 11.2010] 1GRFE..GSJ15 |
13550-31020 |
from US $57.02 |
||
|
13559
|
13559
13559-31010 Slipper, Chain Tensioner[07.2007 - 08.2009] 1GRFE..GSJ15 |
13559-31010 |
from US $22.40 |
||
|
13559
|
13559
13559-31030 Slipper, Chain TensionerCHAIN TENSIONER [08.2009 - 11.2010] 1GRFE..GSJ15 |
13559-31030 |
from US $22.23 |
||
|
13560A
|
13560A
13560-31010 Tensioner Assy, Chain, No.3[07.2007 - 08.2009] 1GRFE..GSJ15 |
13560-31010 |
from US $25.52 |
||
|
13560A
|
13560A
13560-31020 Tensioner Assy, Chain, No.3[08.2009 - 11.2010] 1GRFE..GSJ15 |
13560-31020 |
from US $59.30 |
||
|
13561
|
13561
13561-31010 Damper, Chain Vibration, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
13561-31010 |
from US $41.83 |
||
|
13561
|
13561
13561-31030 Damper, Chain Vibration, No.1[08.2009 - 11.2010] 1GRFE..GSJ15 |
13561-31030 |
from US $41.83 |
||
|
13562
|
13562
13562-31010 Damper, Chain Vibration, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
13562-31010 |
from US $10.93 |
||
|
13562
|
13562
13562-31030 Damper, Chain Vibration, No.2[08.2009 - 11.2010] 1GRFE..GSJ15 |
13562-31030 |
from US $10.93 |
||
|
13711
|
13711
13711-31070
Valve, Intake
[07.2007 - 08.2009] 1GRFE..GSJ15 |
13711-31070 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-31071 Valve, Intake[07.2007 - 08.2009] 1GRFE..GSJ15 |
13711-31071 |
from US $13.51 |
||
|
13711
|
13711
13711-31100
Valve, Intake
[08.2009 - 11.2010] 1GRFE..GSJ15 |
13711-31100 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-31101 Valve, Intake[08.2009 - 11.2010] 1GRFE..GSJ15 |
13711-31101 |
from US $14.10 |
||
|
13711
|
13711
13711-31101 Valve, Intake[02.2013 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
13711-31101 |
from US $14.10 |
||
|
13711A
|
13711A
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [08.2009 - 11.2010] 1GRFE..GSJ15 NO.2 |
90913-02101 |
from US $4.84 |
||
|
13711A
|
13711A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[08.2009 - 11.2010] 1GRFE..GSJ15 NO.1 |
90913-02112 |
from US $4.84 |
||
|
13711B
|
13711B
90501-33025 Spring, Compression(For Inner)COMPRESSION(FOR INNER) [08.2009 - 11.2010] 1GRFE..GSJ15 |
90501-33025 |
from US $3.36 |
||
|
13711B
|
13711B
90905-01087 Spring, Compression(For Inner)[07.2007 - 08.2009] 1GRFE..GSJ15 |
90905-01087 |
US $4.12 |
||
|
13715
|
13715
13715-31090 Valve, Exhaust[07.2007 - 08.2009] 1GRFE..GSJ15 |
13715-31090 |
US $56.64 |
||
| replacement | |||||
|
13715
|
13715
13715-31091 Valve, Exhaust[07.2007 - 08.2009] 1GRFE..GSJ15 |
13715-31091 |
from US $32.28 |
||
|
13715
|
13715
13715-31140 Valve, ExhaustEXHAUST [08.2009 - 11.2010] 1GRFE..GSJ15 |
13715-31140 |
from US $22.67 |
||
|
13716
|
13716
13716-75020 Cap, Valve Stem[08.2009 - 11.2010] 1GRFE..GSJ15 |
13716-75020 |
from US $0.63 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[07.2007 - 11.2010] 1GRFE..GSJ15 |
13734-62020 |
from US $0.55 |
||
|
13741
|
13741
13741-20021 Retainer, Valve Spring[07.2007 - 08.2009] 1GRFE..GSJ15 |
13741-20021 |
from US $1.86 |
||
|
13741
|
13741
13741-31020 Retainer, Valve Spring[08.2009 - 11.2010] 1GRFE..GSJ15 |
13741-31020 |
from US $2.05 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[07.2007 - 11.2010] 1GRFE..GSJ15 |
90913-03028 |
from US $0.95 |
||
|
13750
|
13750
13750-31030 Adjuster Assy, Valve Lash[08.2009 - 11.2010] 1GRFE..GSJ15 |
13750-31030 |
from US $15.23 |
||
|
13801
|
13801
13801-23011 Arm Sub-Assy, Valve Rocker, No.1[08.2009 - 11.2010] 1GRFE..GSJ15 |
13801-23011 |
from US $25.63 |
||
|
91671F0820
|
91671F0820
91671-F0820 New Genuine Part |
91671-F0820 |
US $1.02 |
||
|
9011912370
|
9011912370
90119-12370 Bolt(For Camshaft Timing Gear) |
90119-12370 |
from US $2.66 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
