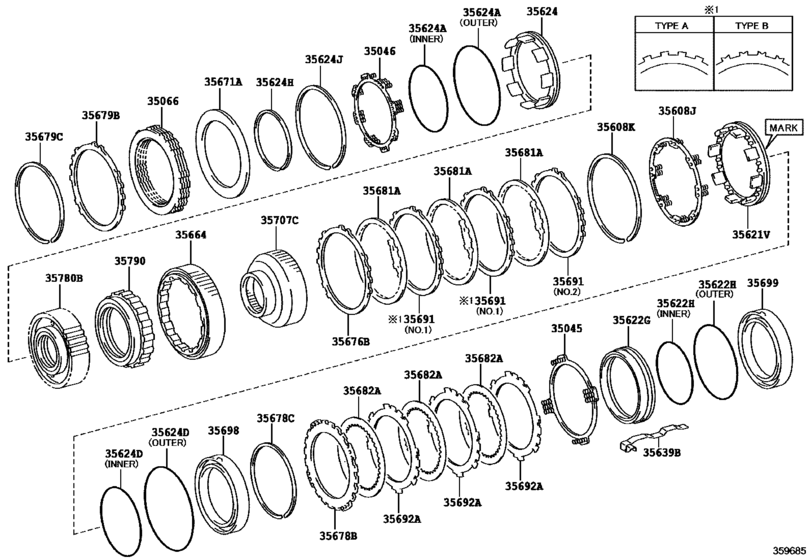

Center Support & Planetary Sun Gear (Atm) ([07.2007 - ] A750F (0707- )ATM) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35045
|
35045
35045-0C010 Spring Sub-Assy, Brake Piston Return,no.2[08.2009 - 11.2010] GSJ15..CHI (L) |
35045-0C010 |
US $10.48 |
||
|
35045
|
35045
35045-60010
Spring Sub-Assy, Brake Piston Return,no.2
[07.2007 - 11.2008] GSJ15..CHI |
35045-60010 |
— | ||
|
35046
|
35046
35046-0C010 Spring Sub-Assy, Brake Piston Return, No.3[08.2009 - 11.2010] GSJ15..CHI (L) |
35046-0C010 |
US $11.65 |
||
|
35046
|
35046
35046-60010 Spring Sub-Assy, Brake Piston Return, No.3[07.2007 - 11.2008] GSJ15..CHI |
35046-60010 |
from US $16.95 |
||
|
35066
|
35066
35066-0C010 Disc Set, 2Nd Brake[08.2009 - 11.2010] GSJ15..CHI (L) |
35066-0C010 |
US $179.09 |
||
|
35066
|
35066
35066-0C030
Disc Set, 2Nd Brake
[11.2011 - 07.2013] GSJ15..CHI (L) |
35066-0C030 |
— | ||
|
35066
|
35066
35066-50020 Disc Set, 2Nd Brake[11.2011 - 07.2013] GSJ15..CHI (J) |
35066-50020 |
from US $154.34 |
||
|
35066
|
35066
35066-60030 Disc Set, 2Nd Brake[07.2007 - 11.2008] GSJ15..CHI |
35066-60030 |
from US $192.19 |
||
|
35608J
|
35608J
35608-0C010 Spring Sub-Assy, Brake Piston Return[08.2009 - 11.2010] GSJ15..CHI (L) |
35608-0C010 |
US $13.25 |
||
|
35608J
|
35608J
35608-60020 Spring Sub-Assy, Brake Piston Return[07.2007 - 11.2008] GSJ15..CHI |
35608-60020 |
US $13.25 |
||
|
35608K
|
35608K
90520-99039 Ring, Hole Snap (For Overdrive Brake Return Spring)[07.2007 - 11.2010] GSJ15..ATM |
90520-99039 |
from US $2.48 |
||
|
35608K
|
35608K
90520-A0032
Ring, Snap (For Brake Piston Return Spring)
[03.2014 - 11.2015] GSJ15..CHI (L) |
90520-A0032 |
— | ||
|
35621V
|
35621V
35621-60020 Piston, Brake, No.1[07.2007 - 11.2010] GSJ15..ATM |
35621-60020 |
US $32.03 |
||
|
35621V
|
35621V
35621-60050
Piston, Brake, No.1
[11.2011 - 12.2016] GSJ15..ATM..(ARL,CHI,GEN,SA) MARK 060 |
35621-60050 |
— | ||
| replacement | |||||
|
35621V
|
35621V
35621-60H00 Piston, Brake, No.1[11.2011 - 12.2016] GSJ15..ATM..(ARL,CHI,GEN,SA) MARK 060 |
35621-60H00 |
from US $38 |
||
|
35622G
|
35622G
35622-60020
Piston, Brake, No.2
[07.2007 - 11.2010] GSJ15..ATM |
35622-60020 |
— | ||
|
35622H
|
35622H
90301-99095 Ring, O (For Brake Piston No.2)[07.2007 - 11.2010] GSJ15..ATM OUTER |
90301-99095 |
from US $2.62 |
||
|
35622H
|
35622H
90301-99118 Ring, O (For Brake Piston No.2)[07.2007 - 11.2010] GSJ15..ATM INNER |
90301-99118 |
US $2.62 |
||
|
35624
|
35624
35624-60010 Piston, 2Nd Brake[07.2007 - 11.2010] GSJ15..ATM |
35624-60010 |
from US $27.23 |
||
|
35624A
|
35624A
90301-99095 Ring, O (For Brake Piston No.2)[07.2007 - 11.2010] GSJ15..ATM INNER |
90301-99095 |
from US $2.62 |
||
|
35624A
|
35624A
90301-99115 Ring, O(For 2Nd Coast & Overdrive)[07.2007 - 11.2010] GSJ15..ATM OUTER |
90301-99115 |
from US $2.62 |
||
|
35624D
|
35624D
90301-99126 Ring, O (For Brake Piston No.4)[07.2007 - 11.2010] GSJ15..ATM OUTER |
90301-99126 |
from US $2.75 |
||
|
35624D
|
35624D
90301-99142 Ring, O (For Brake Piston No.4)[07.2007 - 11.2010] GSJ15..ATM INNER |
90301-99142 |
US $4.40 |
||
|
35624D
|
35624D
90301-99204 Ring, O (For Brake Piston No.4)[04.2014 - 11.2015] GSJ15..ATM T/P A:SEE35-01,INNER |
90301-99204 |
from US $2.62 |
||
|
35624H
|
35624H
90520-99077 Ring, Snap (For 2Nd Brake Piston)[07.2007 - 11.2010] GSJ15..ATM |
90520-99077 |
from US $1.60 |
||
|
35624H
|
35624H
90520-A0028
Ring, Snap (For 2Nd Brake Piston)
[03.2014 - 11.2015] GSJ15..CHI (L) |
90520-A0028 |
— | ||
|
35624J
|
35624J
90521-99130 Ring, Hole Snap (For 2Nd Brake Piston)[07.2007 - 11.2010] GSJ15..ATM |
90521-99130 |
US $4.08 |
||
|
35639B
|
35639B
35639-60010 Spring, Brake Plate Stopper[07.2007 - 11.2010] GSJ15..ATM |
35639-60010 |
US $28.10 |
||
|
35664
|
35664
35664-60010 Cylinder, 2Nd Brake[07.2007 - 11.2010] GSJ15..ATM |
35664-60010 |
from US $49.80 |
||
|
35671A
|
35671A
35671-60010 Plate, Brake Cushion[07.2007 - 11.2010] GSJ15..ATM |
35671-60010 |
from US $34.71 |
||
|
35676B
|
35676B
35676-0C010 Flange, Brake, No.1[08.2009 - 11.2010] GSJ15..CHI T=2.0,MARK 0,(L) |
35676-0C010 |
US $23.15 |
||
|
35676B
|
35676B
35676-0C020 Flange, Brake, No.1[08.2009 - 11.2010] GSJ15..CHI T=2.2,MARK 1,(L) |
35676-0C020 |
US $23.15 |
||
|
35676B
|
35676B
35676-0C030 Flange, Brake, No.1[08.2009 - 11.2010] GSJ15..CHI T=2.4,MARK 2,(L) |
35676-0C030 |
US $23.15 |
||
|
35676B
|
35676B
35676-0C040 Flange, Brake, No.1[08.2009 - 11.2010] GSJ15..CHI T=2.6,MARK 3,(L) |
35676-0C040 |
US $23.15 |
||
|
35676B
|
35676B
35676-60080 Flange, Brake, No.1[07.2007 - 11.2008] GSJ15..CHI T=2.0,MARK 0 |
35676-60080 |
from US $25.33 |
||
|
35676B
|
35676B
35676-60090 Flange, Brake, No.1[07.2007 - 11.2008] GSJ15..CHI T=2.2,MARK 1 |
35676-60090 |
US $25.33 |
||
|
35676B
|
35676B
35676-60100 Flange, Brake, No.1[07.2007 - 11.2008] GSJ15..CHI T=2.4,MARK 2 |
35676-60100 |
US $26.56 |
||
|
35676B
|
35676B
35676-60110 Flange, Brake, No.1[07.2007 - 11.2008] GSJ15..CHI T=2.6,MARK 3 |
35676-60110 |
US $25.33 |
||
|
35678B
|
35678B
35678-0C010
Flange, Brake, No.2
[08.2009 - 11.2010] GSJ15..CHI T=4.6,(L) |
35678-0C010 |
— | ||
|
35678B
|
35678B
35678-60010 Flange, Brake, No.2[07.2007 - 11.2008] GSJ15..CHI T=4.6 |
35678-60010 |
from US $13.25 |
||
|
35678C
|
35678C
90520-99075 Ring, Snap (For Brake No.2)[07.2007 - 11.2010] GSJ15..ATM |
90520-99075 |
from US $2.48 |
||
|
35678C
|
35678C
90520-A0051
Ring, Snap (For Brake No.2)
[05.2014 - 11.2015] GSJ15..ATM (L) |
90520-A0051 |
— | ||
|
35679B
|
35679B
35679-0C010 Flange, Brake, No.3[08.2009 - 11.2010] GSJ15..CHI (L) |
35679-0C010 |
US $23.15 |
||
|
35679B
|
35679B
35679-60010 Flange, Brake, No.3[07.2007 - 11.2008] GSJ15..CHI |
35679-60010 |
US $23.15 |
||
|
35679C
|
35679C
90520-99080 Ring, Snap (For Brake No.3)[07.2007 - 11.2010] GSJ15..ATM |
90520-99080 |
from US $4.80 |
||
|
35679C
|
35679C
90520-A0053
Ring, Snap (For Brake No.3)
[05.2014 - 11.2015] GSJ15..ATM (L) |
90520-A0053 |
— | ||
|
35681A
|
35681A
35681-0C040 Disc, Brake, No.1BRAKE, NO.1 [08.2009 - 11.2010] GSJ15..ATM TYPE B:REFER 35-01 |
35681-0C040 |
US $11.21 |
||
|
35681A
|
35681A
35681-60010 Disc, Brake, No.1[07.2007 - 11.2008] GSJ15..CHI |
35681-60010 |
from US $6.45 |
||
|
35681A
|
35681A
35681-60020 Disc, Brake, No.1[08.2009 - 11.2010] GSJ15..ATM TYPE A:REFER 35-01 |
35681-60020 |
from US $8.91 |
||
|
35682A
|
35682A
35682-0C040 Disc, Brake, No.2BRAKE, NO.2 [08.2009 - 11.2010] GSJ15..ATM TYPE B:REFER 35-01 |
35682-0C040 |
from US $8.30 |
||
|
35682A
|
35682A
35682-50010 Disc, Brake, No.2[08.2009 - 11.2010] GSJ15..ATM TYPE A:REFER 35-01 |
35682-50010 |
from US $7.05 |
||
|
35682A
|
35682A
35682-60010 Disc, Brake, No.2[07.2007 - 11.2008] GSJ15..CHI |
35682-60010 |
US $13.54 |
||
| replacement | |||||
|
35682A
|
35682A
35682-50010 Disc, Brake, No.2[07.2007 - 11.2008] GSJ15..CHI |
35682-50010 |
from US $7.05 |
||
|
35691
|
35691
35691-0C010 Plate, Brake, No.1[11.2011 - 07.2013] GSJ15..CHI (L),NO.2 |
35691-0C010 |
US $9.90 |
||
|
35691
|
35691
35691-0C040
Plate, Brake, No.1
[04.2012 - 07.2013] GSJ15..CHI (L),NO.1 |
35691-0C040 |
— | ||
|
35691
|
35691
35691-60010 Plate, Brake, No.1[11.2011 - 07.2013] GSJ15..CHI (J),NO.2 |
35691-60010 |
from US $10.13 |
||
|
35691
|
35691
35691-60030
Plate, Brake, No.1
[11.2011 - 07.2013] GSJ15..CHI (J),NO.1 |
35691-60030 |
— | ||
| replacements | |||||
|
35691
|
35691
35621-60070 Piston, Brake, No.1[11.2011 - 07.2013] GSJ15..CHI (J),NO.1 |
35621-60070 |
from US $31.30 |
||
|
35691
|
35691
35691-60060 Plate, Brake, No.1[11.2011 - 07.2013] GSJ15..CHI (J),NO.1 |
35691-60060 |
US $9.90 |
||
|
35692A
|
35692A
35692-0C010 Plate, Brake, No.2[08.2009 - 11.2010] GSJ15..CHI (L) |
35692-0C010 |
US $9.90 |
||
|
35692A
|
35692A
35692-60010 Plate, Brake, No.2[07.2007 - 11.2008] GSJ15..CHI |
35692-60010 |
from US $10.05 |
||
|
35698
|
35698
35698-60010 Cylinder, Brake, No.1[07.2007 - 11.2010] GSJ15..ATM |
35698-60010 |
from US $19.51 |
||
|
35699
|
35699
35699-60010 Cylinder, Brake, No.2[07.2007 - 11.2010] GSJ15..ATM |
35699-60010 |
US $19.74 |
||
|
35707C
|
35707C
35707-0C010 Race Sub-Assy, 1 Way Clutch, Inner[08.2009 - 11.2010] GSJ15..CHI (L) |
35707-0C010 |
US $128.13 |
||
|
35707C
|
35707C
35707-60010 Race Sub-Assy, 1 Way Clutch, Inner[07.2007 - 11.2008] GSJ15..CHI |
35707-60010 |
US $122.30 |
||
|
35780B
|
35780B
35780-0C040
Clutch Assy, 1 Way N0.2
[08.2009 - 11.2010] GSJ15..ATM (L) |
35780-0C040 |
— | ||
|
35780B
|
35780B
35780-50040 Clutch Assy, 1 Way N0.2[07.2007 - 08.2009] GSJ15..ATM |
35780-50040 |
US $243.15 |
||
|
35790
|
35790
35790-0C010 Clutch Assy, 1 Way[08.2009 - 11.2010] GSJ15..CHI (L) |
35790-0C010 |
US $122.30 |
||
|
35790
|
35790
35790-50020 Clutch Assy, 1 Way[07.2007 - 11.2008] GSJ15..CHI |
35790-50020 |
US $118.81 |
||
