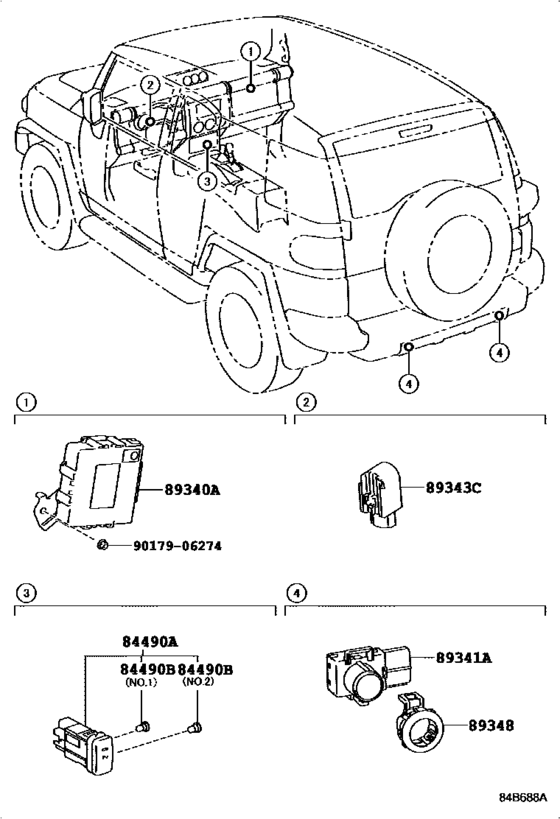

Clearance & Back Sonar ([11.2010 - ] (1011- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84490A
|
84490A
84490-35010 Switch Assy, Back Sonar Or Clearance SonarBACK SONAR OR CLEARANCE SONAR [07.2007 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR) |
84490-35010 |
US $56.61 |
||
|
84490B
|
84490B
84999-10310 Bulb, Air Conditioner Control[07.2007 - 11.2010] GSJ15..CHI,GEN 14V 0.91W; GSJ15..GCC 14V 0.91W,CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR) |
84999-10310 |
from US $2.85 |
||
|
84490B
|
84490B
90010-01127 Bulb(For Back Sonar Switch)[07.2007 - 11.2010] GSJ15..CHI,GEN 14V 0.91W,W(CAP); GSJ15..GCC 14V 0.91W,W(CAP),CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR) |
90010-01127 |
US $4.37 |
||
|
89340A
|
89340A
89340-35020
Computer Assy, Clearance Warning
[12.2007 - 11.2010] GSJ15..CHI |
89340-35020 |
— | ||
| replacement | |||||
|
89340A
|
89340A
89340-35050
Computer Assy, Clearance Warning
[12.2007 - 11.2010] GSJ15..CHI |
89340-35050 |
— | ||
|
89340A
|
89340A
89340-35050
Computer Assy, Clearance Warning
[11.2010 -] GSJ15..(CHI,GEN)..LHD; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
89340-35050 |
— | ||
|
89341A
|
89341A
89341-33130-C0 Sensor, Ultrasonic, No.1ULTRASONIC, NO.1 [12.2007 - 11.2010] GSJ15..CHI DUMMY-MAT BLACK |
89341-33130-C0 |
from US $115.37 |
||
|
89343C
|
89343C
89747-51010 Buzzer, Clearance Warning, No.1[07.2007 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR) |
89747-51010 |
US $34.73 |
||
|
89343C
|
89343C
89747-58010 Buzzer Assy, Vacuum Warning[05.2015 -] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
89747-58010 |
US $38.23 |
||
|
89348
|
89348
89348-33030-C0 Retainer, Ultrasonic Sensor, No.1ULTRASONIC SENSOR, NO.1 [12.2007 - 11.2010] GSJ15..CHI DUMMY-MAT BLACK |
89348-33030-C0 |
from US $1.75 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
