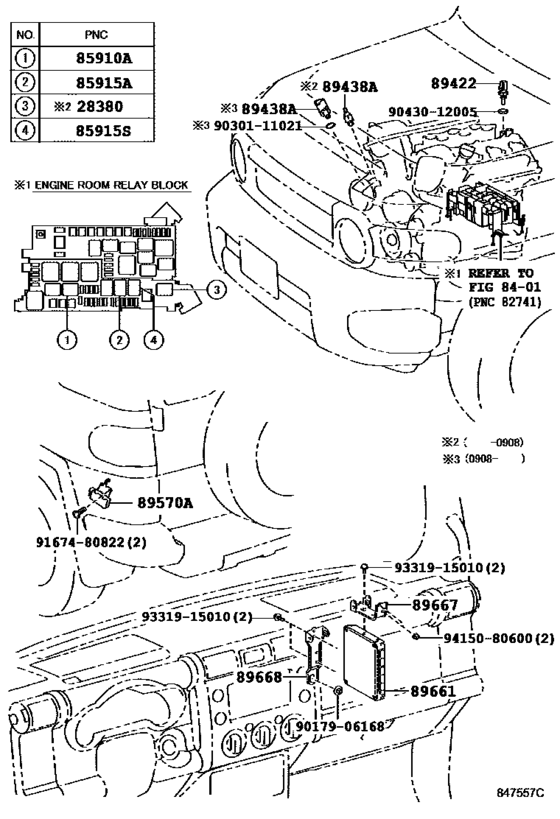

Electronic Fuel Injection System ([07.2007 - 06.2014] (0707-1406)LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-04004 Relay, Starter Cut[07.2007 - 08.2009] 1GRFE..GSJ15 |
90987-04004 |
from US $47.21 |
||
|
85910A
|
85910A
90987-02027 Relay[07.2007 - 11.2010] GSJ15 |
90987-02027 |
from US $47.82 |
||
|
85915A
|
85915A
90987-02027 Relay[07.2007 - 11.2010] GSJ15 |
90987-02027 |
from US $47.82 |
||
|
85915S
|
85915S
90987-02027 Relay[07.2007 - 11.2010] GSJ15 |
90987-02027 |
from US $47.82 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[07.2007 - 11.2010] GSJ15 |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[07.2007 - 08.2009] GSJ15 |
89438-33010 |
from US $26.89 |
||
|
89438A
|
89438A
89448-34020 Switch, Power Steering Oil Pressure[08.2009 - 11.2010] GSJ15 |
89448-34020 |
from US $119.72 |
||
|
89570A
|
89570A
89570-35240 Computer Assy, Fuel Pump Control[08.2009 - 11.2010] GSJ15 |
89570-35240 |
US $234.12 |
||
|
89570A
|
89570A
89570-35260 Computer Assy, Fuel Pump Control[08.2012 -] GSJ15..CHI,GCC,GEN,SA |
89570-35260 |
from US $160.74 |
||
|
89661
|
89661
89661-35D90
Computer, Engine Control
[12.2007 - 08.2009] GSJ15..CHI |
89661-35D90 |
— | ||
|
89661
|
89661
89661-35E00
Computer, Engine Control
[12.2007 - 08.2009] GSJ15..CHI EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD) |
89661-35E00 |
— | ||
|
89661
|
89661
89661-35G10
Computer, Engine Control
[08.2009 - 11.2010] GSJ15..CHI |
89661-35G10 |
— | ||
|
89661
|
89661
89661-35J00
Computer, Engine Control
[11.2010 - 08.2011] GSJ15..ARL,CHI |
89661-35J00 |
— | ||
|
89661
|
89661
89661-35K40
Computer, Engine Control
[08.2011 - 08.2012] GSJ15..ARL,CHI |
89661-35K40 |
— | ||
|
89661
|
89661
89661-35L20
Computer, Engine Control
[08.2012 - 12.2015] GSJ15..CHI |
89661-35L20 |
— | ||
|
89667
|
89667
89667-35130
Bracket, Engine Control Computer
[08.2009 - 11.2010] GSJ15 |
89667-35130 |
— | ||
|
89667
|
89667
89667-60240 Bracket, Engine Control Computer[07.2007 - 08.2009] GSJ15 |
89667-60240 |
US $9.61 |
||
|
89668
|
89668
89668-35170 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.2009 - 11.2010] GSJ15 |
89668-35170 |
US $14.56 |
||
|
89668
|
89668
89668-60240 Bracket, Engine Control Computer, No.2[07.2007 - 08.2009] GSJ15 |
89668-60240 |
US $15.72 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.97 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.11 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9167480822
|
9167480822
91674-80822 BOLT FLANGE |
91674-80822 |
from US $0.78 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
