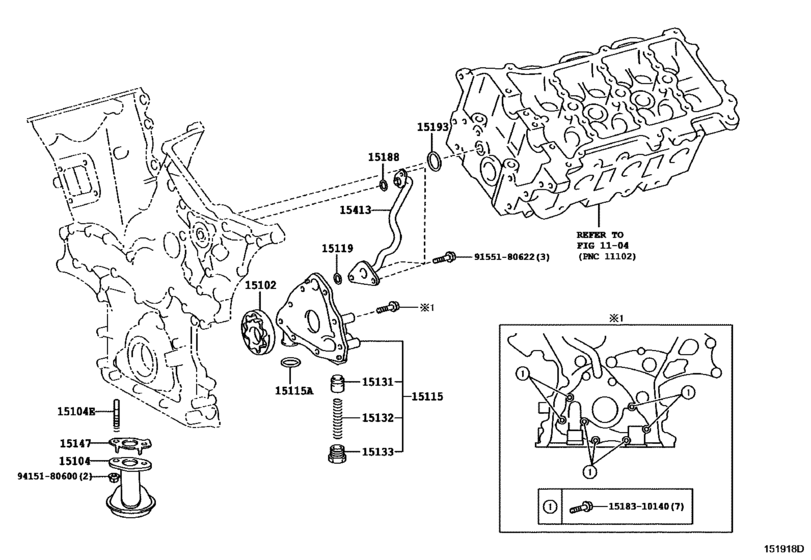

Engine Oil Pump ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[07.2007 - 08.2009] 1GRFE..GSJ15 |
15103-31050 |
from US $33.80 |
||
|
15102
|
15102
15103-31080 Rotor Set, Oil PumpOIL PUMP [08.2009 - 11.2010] 1GRFE..GSJ15 |
15103-31080 |
from US $34.03 |
||
|
15104
|
15104
15104-31050
Strainer Sub-Assy, Oil
[07.2007 - 08.2009] 1GRFE..GSJ15 |
15104-31050 |
— | ||
| replacement | |||||
|
15104
|
15104
15104-31140 Strainer Sub-Assy, Oil[07.2007 - 08.2009] 1GRFE..GSJ15 |
15104-31140 |
from US $22.34 |
||
|
15104
|
15104
15104-31130 Strainer Sub-Assy, OilOIL [08.2009 - 06.2010] 1GRFE..GSJ15 |
15104-31130 |
US $47.90 |
||
| replacement | |||||
|
15104
|
15104
15104-31140 Strainer Sub-Assy, Oil[08.2009 - 06.2010] 1GRFE..GSJ15 |
15104-31140 |
from US $22.34 |
||
|
15104
|
15104
15104-31140 Strainer Sub-Assy, Oil[06.2010 - 11.2010] 1GRFE..GSJ15 |
15104-31140 |
from US $22.34 |
||
|
15104E
|
15104E
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[07.2007 - 11.2010] 1GRFE..GSJ15 |
90126-06029 |
from US $0.65 |
||
|
15115
|
15115
15115-31050 Cover, Oil Pump[07.2007 - 08.2009] 1GRFE..GSJ15 |
15115-31050 |
from US $18.26 |
||
|
15115
|
15115
15115-31080 Cover, Oil PumpOIL PUMP [08.2009 - 11.2010] 1GRFE..GSJ15 |
15115-31080 |
from US $7.13 |
||
|
15115A
|
15115A
96722-24030 Ring, O(For Oil Strainer)[07.2007 - 11.2010] 1GRFE..GSJ15 |
96722-24030 |
from US $2.07 |
||
|
15119
|
15119
15119-31050 Gasket, Oil Pump Cover[07.2007 - 08.2009] 1GRFE..GSJ15 |
15119-31050 |
from US $4.05 |
||
|
15131
|
15131
15131-17010 Valve, Oil Pump Relief[08.2009 - 11.2010] 1GRFE..GSJ15 |
15131-17010 |
from US $3.36 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2007 - 08.2009] 1GRFE..GSJ15 |
15131-46040 |
from US $2.87 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[07.2007 - 11.2010] 1GRFE..GSJ15 |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[07.2007 - 11.2010] 1GRFE..GSJ15 |
15133-28020 |
from US $2.19 |
||
|
15147
|
15147
15147-31070 Gasket, Oil Strainer[06.2010 - 11.2010] 1GRFE..GSJ15 |
15147-31070 |
from US $2 |
||
|
15147
|
15147
15147-46010 Gasket, Oil Strainer[07.2007 - 06.2010] 1GRFE..GSJ15 |
15147-46010 |
from US $2.13 |
||
|
15188
|
15188
15188-31050 Gasket, Oil Pump[07.2007 - 08.2009] 1GRFE..GSJ15 |
15188-31050 |
from US $2.01 |
||
|
15193
|
15193
15193-31010 Gasket, Oil Pump[07.2007 - 08.2009] 1GRFE..GSJ15 |
15193-31010 |
from US $2.22 |
||
|
15193
|
15193
15193-38010 Gasket, Oil Pump[08.2009 - 11.2010] 1GRFE..GSJ15 |
15193-38010 |
from US $3.15 |
||
|
15413
|
15413
15413-31020 Pipe, Oil Pump Outlet[07.2007 - 08.2009] 1GRFE..GSJ15 |
15413-31020 |
US $15.20 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
