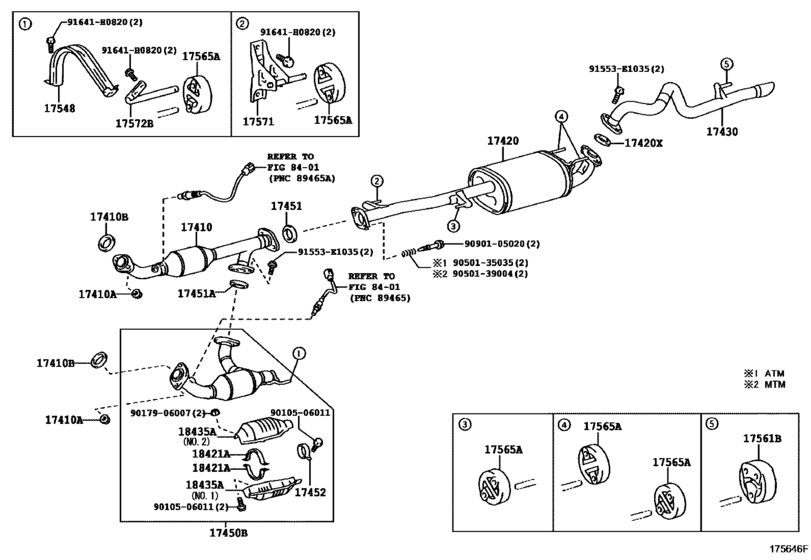

Exhaust Pipe ([07.2007 - ] (0707- )1GRFE..CHI,GCC,GEN) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-31450 Pipe Assy, Exhaust, Front[07.2007 - 07.2009] 1GRFE..GSJ15 *114=TOYOTA/T37/Y |
17410-31450 |
US $1,261.48 |
||
|
17410
|
17410
17410-31A10 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.2009 - 11.2010] 1GRFE..GSJ15 *114=TOYOTA/TB7/Y |
17410-31A10 |
from US $912.04 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[07.2007 - 11.2010] 1GRFE..GSJ15 |
90179-10070 |
from US $1.29 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[07.2007 - 11.2010] 1GRFE..GSJ15 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[07.2007 - 11.2010] 1GRFE..GSJ15 |
90917-06089 |
from US $6.82 |
||
|
17420
|
17420
17420-31220
Pipe Assy, Exhaust, Center
[12.2007 - 07.2009] 1GRFE..GSJ15..CHI |
17420-31220 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-31380
Pipe Assy, Exhaust, Center
[12.2007 - 07.2009] 1GRFE..GSJ15..CHI |
17420-31380 |
— | ||
|
17420
|
17420
17420-31380
Pipe Assy, Exhaust, Center
[08.2009 - 11.2010] 1GRFE..GSJ15..CHI |
17420-31380 |
— | ||
|
17420X
|
17420X
90917-06072 Gasket, Exhaust Pipe[07.2007 - 07.2009] 1GRFE..GSJ15 |
90917-06072 |
from US $6.27 |
||
|
17420X
|
17420X
90917-06090 Gasket, Exhaust Pipe[08.2009 - 11.2010] 1GRFE..GSJ15 |
90917-06090 |
from US $7.03 |
||
|
17430
|
17430
17430-30040 Pipe Assy, Exhaust, Tail[07.2007 - 04.2009] 1GRFE..GSJ15 |
17430-30040 |
US $216.94 |
||
| replacement | |||||
|
17430
|
17430
17430-30041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [07.2007 - 04.2009] 1GRFE..GSJ15 |
17430-30041 |
from US $146.30 |
||
|
17430
|
17430
17430-30041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.2009 - 11.2010] 1GRFE..GSJ15 |
17430-30041 |
from US $146.30 |
||
|
17450B
|
17450B
17450-31030 Pipe Assy, Exhaust, Front No.2[07.2007 - 08.2009] 1GRFE..GSJ15 *114=TOYOTA/T38/Y |
17450-31030 |
US $1,166.26 |
||
|
17450B
|
17450B
17450-31111 Pipe Assy, Exhaust, Front No.2[08.2009 - 11.2010] 1GRFE..GSJ15 *114=TOYOTA/TB8/Y |
17450-31111 |
from US $970.22 |
||
|
17451
|
17451
17451-28070
Gasket, Exhaust Pipe
[08.2009 - 09.2009] 1GRFE..GSJ15 |
17451-28070 |
— | ||
| replacement | |||||
|
17451
|
17451
17451-28041 Gasket, Exhaust Pipe[08.2009 - 09.2009] 1GRFE..GSJ15 |
17451-28041 |
from US $18.41 |
||
|
17451
|
17451
17451-31020 Gasket, Exhaust PipeEXHAUST PIPE [09.2009 - 11.2010] 1GRFE..GSJ15 |
17451-31020 |
from US $18.22 |
||
|
17451
|
17451
17451-74051 Gasket, Exhaust Pipe[07.2007 - 07.2009] 1GRFE..GSJ15 |
17451-74051 |
from US $14.82 |
||
|
17451A
|
17451A
90917-06083 Gasket, Exhaust Pipe[07.2007 - 07.2009] 1GRFE..GSJ15 |
90917-06083 |
from US $4.64 |
||
|
17451A
|
17451A
90917-06089 Gasket, Exhaust Pipe[08.2009 - 11.2010] 1GRFE..GSJ15 |
90917-06089 |
from US $6.82 |
||
|
17452
|
17452
90461-12353 Clamp, Exhaust Pipe[07.2007 - 11.2010] 1GRFE..GSJ15 |
90461-12353 |
from US $10.93 |
||
|
17548
|
17548
17548-31011 Bracket, Exhaust Pipe Stopper[07.2007 - 11.2010] 1GRFE..GSJ15 |
17548-31011 |
US $40.33 |
||
|
17561B
|
17561B
17565-31050 Support, Exhaust Pipe, No.1[07.2007 - 11.2010] 1GRFE..GSJ15 |
17565-31050 |
from US $12.07 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[07.2007 - 11.2010] 1GRFE..GSJ15 |
17565-22040 |
from US $9.29 |
||
|
17571
|
17571
17571-50140 Bracket, Exhaust Pipe Support, No.1[07.2007 - 11.2010] 1GRFE..GSJ15 |
17571-50140 |
US $17.65 |
||
|
17572B
|
17572B
17572-31070 Bracket, Exhaust Pipe Support, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
17572-31070 |
US $11.94 |
||
|
17572B
|
17572B
17572-31110 Bracket, Exhaust Pipe Support, No.2EXHAUST PIPE SUPPORT, NO.2 [08.2009 - 11.2010] 1GRFE..GSJ15 |
17572-31110 |
US $8.88 |
||
|
18421A
|
18421A
18421-75010 Stay, Converter Protector, Lh[07.2007 - 11.2010] 1GRFE..GSJ15 |
18421-75010 |
US $24.36 |
||
|
18435A
|
18435A
18435-31030 Protector, Monolithic Converter[07.2007 - 11.2010] 1GRFE..GSJ15 NO.2 |
18435-31030 |
US $50.67 |
||
|
18435A
|
18435A
18445-31010 Protector, Monolithic Converter[07.2007 - 11.2010] 1GRFE..GSJ15 NO.1 |
18445-31010 |
US $46.65 |
||
|
91553E1035
|
91553E1035
91553-E1035 BOLT FLANGE |
91553-E1035 |
from US $0.86 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.72 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.31 |
||
|
9050139004
|
9050139004
90501-39004 SPRING COMPRESSION |
90501-39004 |
from US $3.21 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
