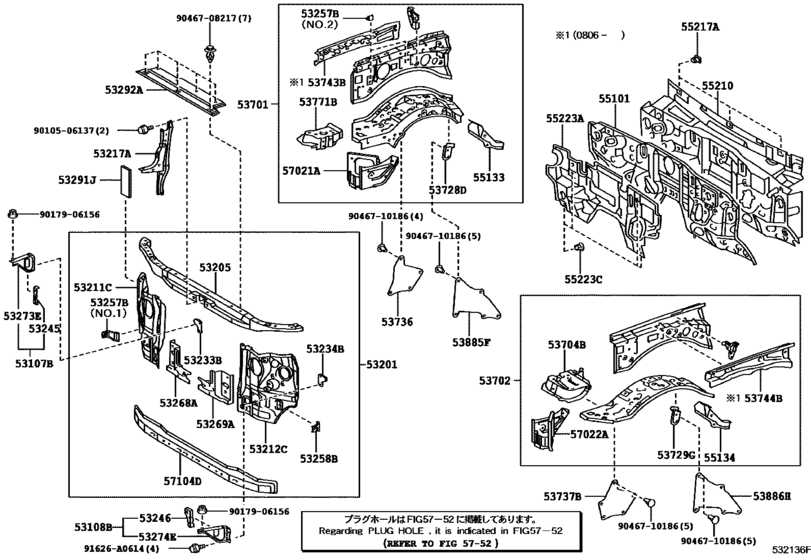

Front Fender Apron & Dash Panel ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53107B
|
53107B
53107-35030 Bracket Sub-Assy, Radiator Grille, Lower Rh[07.2007 - 11.2010] GSJ15 |
53107-35030 |
from US $20.92 |
||
|
53108B
|
53108B
53108-35030 Bracket Sub-Assy, Radiator Grille, Lower Lh[07.2007 - 11.2010] GSJ15 |
53108-35030 |
from US $20.88 |
||
|
53201
|
53201
53201-35240
Support Sub-Assy, Radiator
[12.2007 - 07.2009] GSJ15..CHI |
53201-35240 |
— | ||
| replacements | |||||
|
53201
|
53201
53201-35241 Support Sub-Assy, Radiator[12.2007 - 07.2009] GSJ15..CHI |
53201-35241 |
US $356.38 |
||
|
53201
|
53201
90950-01958 Plug, Hole(For Back Door Panel)[12.2007 - 07.2009] GSJ15..CHI |
90950-01958 |
from US $2.15 |
||
|
53201
|
53201
53201-35241 Support Sub-Assy, Radiator[08.2009 - 11.2010] GSJ15..CHI; GSJ15..GEN ALGERIA SPEC; GSJ15..GEN IVORY COAST SPEC |
53201-35241 |
US $356.38 |
||
|
53205
|
53205
53205-35030
Support Sub-Assy, Radiator, Upper
[07.2007 - 07.2009] GSJ15 |
53205-35030 |
— | ||
| replacement | |||||
|
53205
|
53205
53205-35031 Support Sub-Assy, Radiator, Upper[07.2007 - 07.2009] GSJ15 |
53205-35031 |
from US $78.62 |
||
|
53205
|
53205
53205-35031 Support Sub-Assy, Radiator, Upper[08.2009 - 11.2010] GSJ15 |
53205-35031 |
from US $78.62 |
||
|
53211C
|
53211C
53211-35180
Support, Radiator, Rh
[12.2007 - 07.2009] GSJ15..CHI |
53211-35180 |
— | ||
| replacements | |||||
|
53211C
|
53211C
53211-35181 Support, Radiator, RhRADIATOR, RH [12.2007 - 07.2009] GSJ15..CHI |
53211-35181 |
US $68.14 |
||
|
53211C
|
53211C
90950-01958 Plug, Hole(For Back Door Panel)[12.2007 - 07.2009] GSJ15..CHI |
90950-01958 |
from US $2.15 |
||
|
53211C
|
53211C
53211-35181 Support, Radiator, RhRADIATOR, RH [08.2009 - 11.2010] GSJ15..CHI; GSJ15..GEN ALGERIA SPEC; GSJ15..GEN IVORY COAST SPEC |
53211-35181 |
US $68.14 |
||
|
53212C
|
53212C
53212-35120 Support, Radiator, LhRADIATOR, LH [12.2007 - 11.2010] GSJ15..CHI |
53212-35120 |
US $75.71 |
||
| replacement | |||||
|
53212C
|
53212C
53212-35121 Support, Radiator, Lh[12.2007 - 11.2010] GSJ15..CHI |
53212-35121 |
US $68.14 |
||
|
53212C
|
53212C
53212-35121 Support, Radiator, Lh[02.2014 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
53212-35121 |
US $68.14 |
||
|
53217A
|
53217A
53209-35030 Brace, Hood Lock SupportHOOD LOCK SUPPORT [07.2007 - 11.2010] GSJ15 |
53209-35030 |
from US $38.93 |
||
|
53233B
|
53233B
53233-35010 Bracket, Headlamp, Inner RhHEADLAMP, INNER RH [07.2007 - 11.2010] GSJ15 |
53233-35010 |
US $4.08 |
||
|
53234B
|
53234B
53234-35010 Bracket, Headlamp, Inner LhHEADLAMP, INNER LH [07.2007 - 11.2010] GSJ15 |
53234-35010 |
US $4.08 |
||
|
53245
|
53245
53245-35030 Bracket, Headlamp, RhHEADLAMP, RH [07.2007 - 11.2010] GSJ15 |
53245-35030 |
from US $4.51 |
||
|
53246
|
53246
53246-35020 Bracket, Headlamp, LhHEADLAMP, LH [07.2007 - 11.2010] GSJ15 |
53246-35020 |
from US $1.10 |
||
|
53257B
|
53257B
53257-35030 Bracket, Front End Panel Mounting, Rh[07.2007 - 11.2010] GSJ15 NO.2 |
53257-35030 |
from US $2.85 |
||
|
53257B
|
53257B
53257-35060 Bracket, Radiator Support To Front FenderRADIATOR SUPPORT TO FRONT FENDER [07.2007 - 11.2010] GSJ15 NO.1 |
53257-35060 |
US $4.66 |
||
|
53258B
|
53258B
53258-35010 Bracket, Radiator Support To Front Fender, LhRADIATOR SUPPORT TO FRONT FENDER, LH [07.2007 - 11.2010] GSJ15 |
53258-35010 |
US $4.66 |
||
|
53268A
|
53268A
53268-35040 Reinforcement, Radiator Mounting, Rh[07.2007 - 11.2010] GSJ15 |
53268-35040 |
US $23 |
||
|
53269A
|
53269A
53269-35040 Reinforcement, Radiator Mounting, Lh[07.2007 - 11.2010] GSJ15 |
53269-35040 |
US $23 |
||
|
53273E
|
53273E
53273-35090 Bracket, Front Bumper Arm Mounting, RhRADIATOR GRILLE, LOWER RH [07.2007 - 11.2010] GSJ15 |
53273-35090 |
from US $13.69 |
||
|
53274E
|
53274E
53274-35070 Bracket, Front Bumper Arm Mounting, LhRADIATOR GRILLE, LOWER LH [07.2007 - 11.2010] GSJ15 |
53274-35070 |
from US $13.69 |
||
|
53291J
|
53291J
53291-35010 Seal, Radiator SupportRADIATOR SUPPORT [07.2007 - 11.2010] GSJ15 |
53291-35010 |
US $5.64 |
||
|
53292A
|
53292A
53292-35020 Seal, Radiator Support, UpperRADIATOR SUPPORT, UPPER [07.2007 - 11.2010] GSJ15 |
53292-35020 |
from US $38.09 |
||
|
53701
|
53701
53701-35A11
Apron Sub-Assy, Front Fender, Rh
[07.2007 - 05.2008] GSJ15 |
53701-35A11 |
— | ||
| replacements | |||||
|
53701
|
53701
53701-35A32
Apron Sub-assy, Front Fender, Rh
[07.2007 - 05.2008] GSJ15 |
53701-35A32 |
— | ||
|
53701
|
53701
90333-01007 PLUG[07.2007 - 05.2008] GSJ15 |
90333-01007 |
US $0.87 |
||
|
53701
|
53701
53701-35A30
Apron Sub-Assy, Front Fender, Rh
[06.2008 - 12.2008] GSJ15 |
53701-35A30 |
— | ||
| replacements | |||||
|
53701
|
53701
53701-35A32
Apron Sub-assy, Front Fender, Rh
[06.2008 - 12.2008] GSJ15 |
53701-35A32 |
— | ||
|
53701
|
53701
90333-01007 PLUG[06.2008 - 12.2008] GSJ15 |
90333-01007 |
US $0.87 |
||
|
53701
|
53701
53701-35A31
Apron Sub-Assy, Front Fender, Rh
[01.2009 - 08.2009] GSJ15 |
53701-35A31 |
— | ||
| replacements | |||||
|
53701
|
53701
53701-35A32
Apron Sub-assy, Front Fender, Rh
[01.2009 - 08.2009] GSJ15 |
53701-35A32 |
— | ||
|
53701
|
53701
90333-01007 PLUG[01.2009 - 08.2009] GSJ15 |
90333-01007 |
US $0.87 |
||
|
53701
|
53701
53701-35A50 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [08.2009 - 11.2010] GSJ15 |
53701-35A50 |
US $436.80 |
||
|
53701
|
53701
53701-35A60 Apron Sub-Assy, Front Fender, Rh[08.2011 - 12.2014] GSJ15 |
53701-35A60 |
US $364 |
||
| replacement | |||||
|
53701
|
53701
53701-35A61 Apron Sub-Assy, Front Fender, Rh[08.2011 - 12.2014] GSJ15 |
53701-35A61 |
from US $330.51 |
||
|
53701
|
53701
53701-35A61 Apron Sub-Assy, Front Fender, Rh[01.2015 -] GSJ15..CHI,GCC,GEN,SA |
53701-35A61 |
from US $330.51 |
||
|
53702
|
53702
53702-35A01
Apron Sub-Assy, Front Fender, Lh
[07.2007 - 05.2008] GSJ15 |
53702-35A01 |
— | ||
| replacement | |||||
|
53702
|
53702
53702-35A12 Apron Sub-Assy, Front Fender, Lh[07.2007 - 05.2008] GSJ15 |
53702-35A12 |
from US $339.49 |
||
|
53702
|
53702
53702-35A10
Apron Sub-Assy, Front Fender, Lh
[06.2008 - 12.2008] GSJ15 |
53702-35A10 |
— | ||
| replacement | |||||
|
53702
|
53702
53702-35A12 Apron Sub-Assy, Front Fender, Lh[06.2008 - 12.2008] GSJ15 |
53702-35A12 |
from US $339.49 |
||
|
53702
|
53702
53702-35A11 Apron Sub-Assy, Front Fender, Lh[01.2009 - 11.2010] GSJ15 |
53702-35A11 |
US $333.42 |
||
| replacement | |||||
|
53702
|
53702
53702-35A12 Apron Sub-Assy, Front Fender, Lh[01.2009 - 11.2010] GSJ15 |
53702-35A12 |
from US $339.49 |
||
|
53702
|
53702
53702-35A12 Apron Sub-Assy, Front Fender, Lh[01.2015 -] GSJ15..CHI,GCC,GEN,SA |
53702-35A12 |
from US $339.49 |
||
|
53704B
|
53704B
53704-35081 Support Sub-Assy, Battery, Lh[07.2007 - 03.2009] GSJ15 |
53704-35081 |
US $53.14 |
||
| replacement | |||||
|
53704B
|
53704B
53704-60050 Support Sub-Assy, Battery, Lh[07.2007 - 03.2009] GSJ15 |
53704-60050 |
US $36.84 |
||
|
53704B
|
53704B
53704-35082 Support Sub-Assy, Battery, LhBATTERY, LH [04.2009 - 11.2010] GSJ15 |
53704-35082 |
US $36.84 |
||
| replacement | |||||
|
53704B
|
53704B
53704-60050 Support Sub-Assy, Battery, Lh[04.2009 - 11.2010] GSJ15 |
53704-60050 |
US $36.84 |
||
|
53704B
|
53704B
53704-60050 Support Sub-Assy, Battery, Lh[01.2015 - 06.2017] GSJ15 |
53704-60050 |
US $36.84 |
||
|
53728D
|
53728D
53728-35060 Bracket, Fender Apron, Rh[07.2007 - 11.2010] GSJ15 |
53728-35060 |
US $3.64 |
||
|
53729G
|
53729G
53728-35060 Bracket, Fender Apron, Rh[07.2007 - 11.2010] GSJ15 |
53728-35060 |
US $3.64 |
||
|
53736
|
53736
53735-35150
Seal, Front Fender Apron, Upper
[07.2007 - 11.2010] GSJ15 |
53735-35150 |
— | ||
| replacement | |||||
|
53736
|
53736
53735-35151 Seal, Front Fender Apron, Upper[07.2007 - 11.2010] GSJ15 |
53735-35151 |
from US $14.06 |
||
|
53737B
|
53737B
53736-35150
Seal, Fender Apron
[07.2007 - 11.2010] GSJ15 |
53736-35150 |
— | ||
| replacement | |||||
|
53737B
|
53737B
53736-35151 Seal, Fender Apron[07.2007 - 11.2010] GSJ15 |
53736-35151 |
from US $16.91 |
||
|
53743B
|
53743B
53743-35040 Reinforcement, Front Fender Apron, Front RhFRONT FENDER APRON, FRONT RH [06.2008 - 11.2010] GSJ15 |
53743-35040 |
from US $48.75 |
||
|
53744B
|
53744B
53744-35030 Reinforcement, Front Fender Apron, Front LhFRONT FENDER APRON, FRONT LH [06.2008 - 11.2010] GSJ15 |
53744-35030 |
from US $50.67 |
||
|
53771B
|
53771B
53703-60061
Support, Battery Carrier, Rh
[01.2015 - 06.2017] GSJ15 |
53703-60061 |
— | ||
|
53771B
|
53771B
53771-35080 Support, Battery Carrier, Rh[07.2007 - 08.2009] GSJ15 |
53771-35080 |
US $35.67 |
||
|
53885F
|
53885F
53886-35020 Seal, Front Fender[07.2007 - 08.2009] GSJ15..CHI,GEN |
53886-35020 |
from US $19.08 |
||
|
53885F
|
53885F
53886-60030
Seal, Front Fender Apron To Frame, No.1
[08.2009 - 11.2010] GSJ15..CHI,GEN |
53886-60030 |
— | ||
| replacement | |||||
|
53885F
|
53885F
53885-60030 Seal, Front Fender Apron To Frame, No.1 RhFRONT FENDER APRON TO FRAME, NO.1 RH [08.2009 - 11.2010] GSJ15..CHI,GEN |
53885-60030 |
from US $16.07 |
||
|
53886H
|
53886H
53886-35020 Seal, Front Fender[07.2007 - 08.2009] GSJ15..CHI,GEN |
53886-35020 |
from US $19.08 |
||
|
53886H
|
53886H
53886-60030
Seal, Front Fender Apron To Frame, No.1
[08.2009 - 11.2010] GSJ15..CHI,GEN |
53886-60030 |
— | ||
| replacement | |||||
|
53886H
|
53886H
53885-60030 Seal, Front Fender Apron To Frame, No.1 RhFRONT FENDER APRON TO FRAME, NO.1 RH [08.2009 - 11.2010] GSJ15..CHI,GEN |
53885-60030 |
from US $16.07 |
||
|
55101
|
55101
55101-35A30
Panel Sub-Assy, Dash
[07.2007 - 11.2010] GSJ15..ATM |
55101-35A30 |
— | ||
|
55133
|
55133
55133-35021
Plate, Front Fender Apron Set, Lower Rh
[07.2007 - 11.2008] GSJ15 |
55133-35021 |
— | ||
| replacement | |||||
|
55133
|
55133
55133-60060 Plate, Front Fender Apron Set, Lower Rh[07.2007 - 11.2008] GSJ15 |
55133-60060 |
US $10.32 |
||
|
55133
|
55133
55133-60060 Plate, Front Fender Apron Set, Lower Rh[12.2008 - 11.2010] GSJ15 |
55133-60060 |
US $10.32 |
||
|
55134
|
55134
55134-35020
Plate, Front Fender Apron Set, Lower Lh
[07.2007 - 11.2008] GSJ15 |
55134-35020 |
— | ||
| replacement | |||||
|
55134
|
55134
55134-60070 Plate, Front Fender Apron Set, Lower Lh[07.2007 - 11.2008] GSJ15 |
55134-60070 |
US $15.77 |
||
|
55134
|
55134
55134-60070 Plate, Front Fender Apron Set, Lower Lh[12.2008 - 11.2010] GSJ15 |
55134-60070 |
US $15.77 |
||
|
55210
|
55210
55210-35370
Insulator Assy, Dash Panel
[07.2007 - 05.2008] GSJ15..ATM |
55210-35370 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-35372
Insulator Assy, Dash Panel
[07.2007 - 05.2008] GSJ15..ATM |
55210-35372 |
— | ||
|
55210
|
55210
55210-35371
Insulator Assy, Dash Panel
[06.2008 - 11.2010] GSJ15..ATM |
55210-35371 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-35372
Insulator Assy, Dash Panel
[06.2008 - 11.2010] GSJ15..ATM |
55210-35372 |
— | ||
|
55217A
|
55217A
55217-35020 Retainer, Dash Panel Silencer[07.2007 - 11.2010] GSJ15 |
55217-35020 |
US $3.76 |
||
|
55223A
|
55223A
55223-35071
Insulator, Dash Panel, Outer
[07.2007 - 11.2008] GSJ15 |
55223-35071 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-35074
Insulator, Dash Panel, Outer
[07.2007 - 11.2008] GSJ15 |
55223-35074 |
— | ||
|
55223A
|
55223A
55223-35072
Insulator, Dash Panel, Outer
[12.2008 - 11.2010] GSJ15 |
55223-35072 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-35074
Insulator, Dash Panel, Outer
[12.2008 - 11.2010] GSJ15 |
55223-35074 |
— | ||
|
55223A
|
55223A
55223-35073
Insulator, Dash Panel, Outer
[11.2010 - 12.2015] GSJ15..LHD |
55223-35073 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-35074
Insulator, Dash Panel, Outer
[11.2010 - 12.2015] GSJ15..LHD |
55223-35074 |
— | ||
|
55223C
|
55223C
90467-06169 Clip[11.2010 - 12.2010] GSJ15 |
90467-06169 |
from US $0.87 |
||
|
55223C
|
55223C
90467-06206-C0 Clip, Rear Bumper Side[01.2011 -] GSJ15..CHI,GCC,GEN,SA BLACK |
90467-06206-C0 |
from US $0.80 |
||
|
57021A
|
57021A
57021-35060 Bracket Sub-Assy, Body Mounting, No.1 Rh[07.2007 - 11.2010] GSJ15 |
57021-35060 |
US $49.38 |
||
|
57022A
|
57022A
57022-35050 Bracket Sub-Assy, Body Mounting, No.1 Lh[07.2007 - 11.2010] GSJ15 |
57022-35050 |
from US $68.46 |
||
|
57104D
|
57104D
57104-35060
Member Sub-Assy, Front Cross
[07.2007 - 08.2008] GSJ15 |
57104-35060 |
— | ||
| replacement | |||||
|
57104D
|
57104D
57104-35061 Member Sub-Assy, Front Cross[07.2007 - 08.2008] GSJ15 |
57104-35061 |
from US $87.67 |
||
|
57104D
|
57104D
57104-35061 Member Sub-Assy, Front Cross[09.2008 - 11.2010] GSJ15 |
57104-35061 |
from US $87.67 |
||
|
91626A0614
|
91626A0614
91626-A0614 BOLT WWASHER |
91626-A0614 |
US $1.97 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.82 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.87 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.29 |
||
