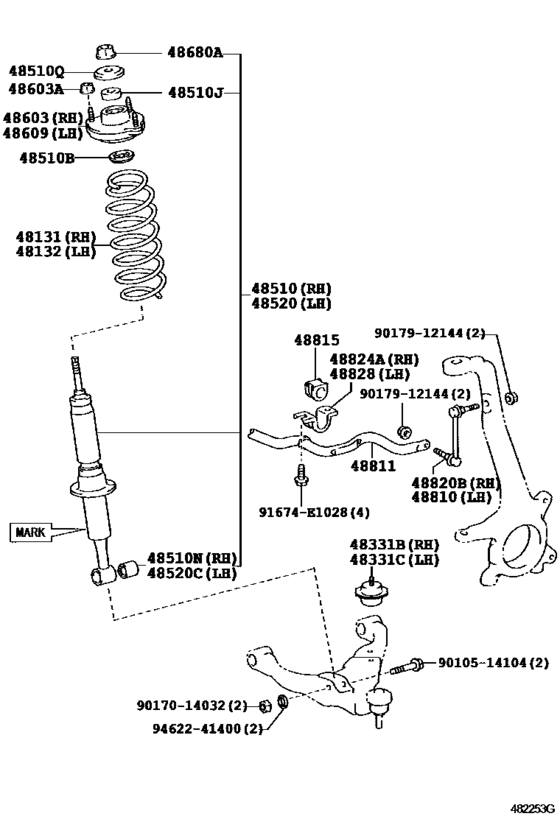

Front Spring & Shock Absorber ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-35541 Spring, Front Coil, Rh[07.2007 - 08.2009] GSJ15 |
48131-35541 |
from US $144.14 |
||
|
48131
|
48131
48131-35660 Spring, Front Coil, Rh[08.2009 - 11.2010] GSJ15 |
48131-35660 |
US $104.83 |
||
|
48132
|
48132
48131-35551 Spring, Front Coil, Lh[07.2007 - 08.2009] GSJ15 |
48131-35551 |
US $144.14 |
||
|
48132
|
48132
48131-35670 Spring, Front Coil, Lh[08.2009 - 11.2010] GSJ15 |
48131-35670 |
from US $126.67 |
||
|
48331B
|
48331B
48304-60120 Bumper, Front Spring, Rh[07.2007 - 11.2010] GSJ15 |
48304-60120 |
from US $19.70 |
||
|
48331C
|
48331C
48304-60120 Bumper, Front Spring, Rh[07.2007 - 11.2010] GSJ15 |
48304-60120 |
from US $19.70 |
||
|
48510
|
48510
48510-80395 Absorber Assy, Shock, Front[07.2007 - 08.2009] GSJ15 MARK 48510-35330 |
48510-80395 |
from US $245.71 |
||
|
48510
|
48510
48510-80496 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.2009 - 11.2010] GSJ15 MARK 48510-35420 |
48510-80496 |
US $279.05 |
||
|
48510
|
48510
48510-80547
Absorber Assy, Shock, Front Rh
[01.2011 - 08.2013] GSJ15 MARK 48510-35510 |
48510-80547 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-80642 Absorber Assy, Shock, Front Rh[01.2011 - 08.2013] GSJ15 MARK 48510-35510 |
48510-80642 |
US $197.13 |
||
|
48510
|
48510
48510-80642 Absorber Assy, Shock, Front Rh[08.2013 -] GSJ15..CHI,GCC,GEN,SA MARK 48510-35511 |
48510-80642 |
US $197.13 |
||
|
48510B
|
48510B
90948-02159 Retainer, Cushion, No.1(For Front Shock Absorber)[07.2007 - 08.2009] GSJ15 |
90948-02159 |
from US $4.66 |
||
|
48510B
|
48510B
90948-02205 Retainer, Cushion, No.1(For Front Shock Absorber)CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) [08.2009 - 11.2010] GSJ15 |
90948-02205 |
from US $5.02 |
||
|
48510J
|
48510J
90948-01056 Cushion, Front Shock Absorber, No.1[07.2007 - 08.2009] GSJ15 |
90948-01056 |
from US $4.12 |
||
|
48510J
|
48510J
90948-01100 Cushion, Front Shock Absorber, No.1FRONT SHOCK ABSORBER, NO.1 [08.2009 - 11.2010] GSJ15 |
90948-01100 |
from US $4.12 |
||
|
48510N
|
48510N
48536-60010 Bush(For Shock Absorber)[08.2009 - 11.2010] GSJ15 |
48536-60010 |
from US $15.60 |
||
|
48510N
|
48510N
90903-89012 Bush(For Front Shock Absorber)[07.2007 - 08.2009] GSJ15 |
90903-89012 |
from US $14.27 |
||
|
48510Q
|
48510Q
90948-02161 Retainer, Cushion, No.3(For Front Shock Absorber)[07.2007 - 11.2010] GSJ15 |
90948-02161 |
from US $7.53 |
||
|
48520
|
48520
48510-80395 Absorber Assy, Shock, Front[07.2007 - 08.2009] GSJ15 MARK 48510-35330 |
48510-80395 |
from US $245.71 |
||
|
48520
|
48520
48510-80496 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.2009 - 11.2010] GSJ15 MARK 48510-35420 |
48510-80496 |
US $279.05 |
||
|
48520
|
48520
48510-80547
Absorber Assy, Shock, Front Rh
[01.2011 - 08.2013] GSJ15 MARK 48510-35510 |
48510-80547 |
— | ||
| replacement | |||||
|
48520
|
48520
48510-80642 Absorber Assy, Shock, Front Rh[01.2011 - 08.2013] GSJ15 MARK 48510-35510 |
48510-80642 |
US $197.13 |
||
|
48520
|
48520
48510-80642 Absorber Assy, Shock, Front Rh[08.2013 -] GSJ15..CHI,GCC,GEN,SA MARK 48510-35511 |
48510-80642 |
US $197.13 |
||
|
48520C
|
48520C
48536-60010 Bush(For Shock Absorber)[08.2009 - 11.2010] GSJ15 |
48536-60010 |
from US $15.60 |
||
|
48520C
|
48520C
90903-89012 Bush(For Front Shock Absorber)[07.2007 - 08.2009] GSJ15 |
90903-89012 |
from US $14.27 |
||
|
48603
|
48603
48609-60030
Support Sub-Assy, Front Suspension, Rh
[07.2007 - 08.2009] GSJ15 |
48609-60030 |
— | ||
| replacement | |||||
|
48603
|
48603
48609-60100 Support Sub-Assy, Front Suspension[07.2007 - 08.2009] GSJ15 |
48609-60100 |
from US $51.85 |
||
|
48603
|
48603
48609-60100 Support Sub-Assy, Front Suspension[08.2009 - 11.2010] GSJ15 |
48609-60100 |
from US $51.85 |
||
|
48603A
|
48603A
90178-10014 Nut(For Front Suspension Support)[12.2013 -] GSJ15..CHI,GCC,GEN,SA |
90178-10014 |
from US $1.10 |
||
|
48603A
|
48603A
90178-10015 Nut(For Front Suspension Support)[08.2009 - 11.2010] GSJ15 |
90178-10015 |
from US $0.89 |
||
|
48603A
|
48603A
90179-10212 Nut(For Front Suspension Support)[07.2007 - 08.2009] GSJ15 |
90179-10212 |
from US $0.89 |
||
|
48609
|
48609
48609-60030
Support Sub-Assy, Front Suspension, Rh
[07.2007 - 08.2009] GSJ15 |
48609-60030 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-60100 Support Sub-Assy, Front Suspension[07.2007 - 08.2009] GSJ15 |
48609-60100 |
from US $51.85 |
||
|
48609
|
48609
48609-60100 Support Sub-Assy, Front Suspension[08.2009 - 11.2010] GSJ15 |
48609-60100 |
from US $51.85 |
||
|
48680A
|
48680A
94184-01241 Nut(For Front Support To Front Shock Absorber)[07.2007 - 11.2010] GSJ15 |
94184-01241 |
from US $0.87 |
||
|
48810
|
48810
48810-60040 Link Assy, Front Stabilizer, Lh[07.2007 - 11.2010] GSJ15 |
48810-60040 |
from US $60.11 |
||
|
48811
|
48811
48811-60230 Bar, Stabilizer, Front[07.2007 - 08.2009] GSJ15 |
48811-60230 |
from US $183.46 |
||
|
48811
|
48811
48811-60320 Bar, Stabilizer, FrontSTABILIZER, FRONT [08.2009 - 11.2010] GSJ15 |
48811-60320 |
from US $165.98 |
||
|
48815
|
48815
48815-60180
Bush, Front Stabilizer Bar, No.1
[07.2007 - 08.2009] GSJ15 |
48815-60180 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-60350 Bush, Front Stabilizer Bar, No.1[07.2007 - 08.2009] GSJ15 |
48815-60350 |
from US $12.07 |
||
|
48815
|
48815
48815-60310
Bush, Front Stabilizer Bar, No.1
[08.2009 - 11.2010] GSJ15 |
48815-60310 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-60380 Bush, Front Stabilizer Bar, No.1[08.2009 - 11.2010] GSJ15 |
48815-60380 |
from US $12.31 |
||
|
48815
|
48815
48815-60380 Bush, Front Stabilizer Bar, No.1[06.2011 -] GSJ15..CHI,GCC,GEN,SA |
48815-60380 |
from US $12.31 |
||
|
48820B
|
48820B
48820-60050 Link Assy, Front Stabilizer, Rh[07.2007 - 11.2010] GSJ15 |
48820-60050 |
from US $63.04 |
||
|
48824A
|
48824A
48824-60140 Bracket, Front Stabilizer, No.1 Rh[07.2007 - 08.2009] GSJ15 |
48824-60140 |
from US $18.77 |
||
|
48824A
|
48824A
48824-60190 Bracket, Front Stabilizer, No.1 RhFRONT STABILIZER, NO.1 RH [08.2009 - 11.2010] GSJ15 |
48824-60190 |
from US $16.19 |
||
|
48828
|
48828
48829-60090 Bracket, Front Stabilizer, No.2 Lh[07.2007 - 08.2009] GSJ15 |
48829-60090 |
from US $19.17 |
||
|
48828
|
48828
48829-60120 Bracket, Front Stabilizer, No.2 LhFRONT STABILIZER, NO.1 LH [08.2009 - 11.2010] GSJ15 |
48829-60120 |
from US $16.23 |
||
|
91674E1028
|
91674E1028
91674-E1028 BOLT FLANGE |
91674-E1028 |
from US $1.12 |
||
|
9010514104
|
9010514104
90105-14104 BOLT WASHER BASED |
90105-14104 |
from US $3.19 |
||
|
9017014032
|
9017014032
90170-14032 Nut |
90170-14032 |
from US $1.05 |
||
|
9017912144
|
9017912144
90179-12144 Nut(For Front Stabilizer Link) |
90179-12144 |
from US $0.89 |
||
|
9462241400
|
9462241400
94622-41400 WASHER PLATE |
94622-41400 |
from US $1.37 |
||
