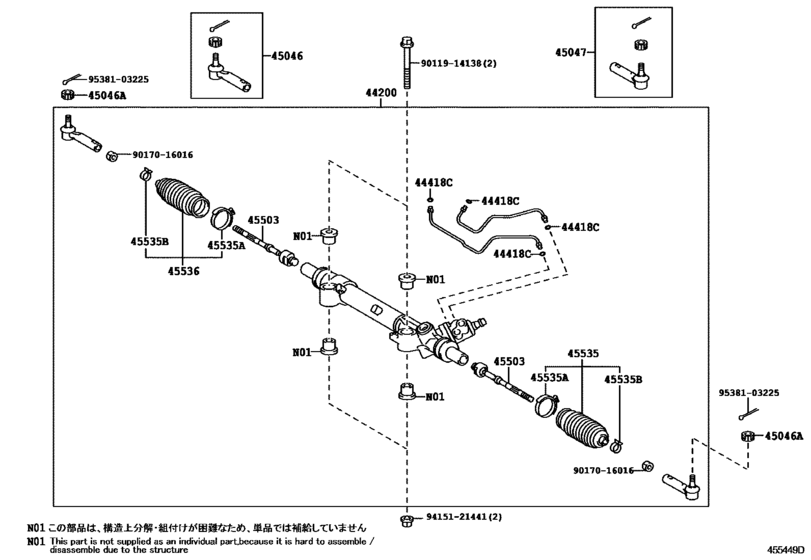

Front Steering Gear & Link ([08.2009 - ] (0908- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-35080 Link Assy, Power Steering[07.2007 - 08.2009] GSJ15 |
44200-35080 |
US $1,343.89 |
||
| replacements | |||||
|
44200
|
44200
44250-35080 Gear Assy, Power Steering(For Rack & Pinion)[07.2007 - 08.2009] GSJ15 |
44250-35080 |
from US $1,504.34 |
||
|
44200
|
44200
45046-39505 End Sub-Assy, Tie Rod[07.2007 - 08.2009] GSJ15 |
45046-39505 |
from US $47.31 |
||
|
44200
|
44200
90170-15001 Nut, Rack End Lock[07.2007 - 08.2009] GSJ15 |
90170-15001 |
from US $1.41 |
||
|
44200
|
44200
44200-35100 Link Assy, Power Steering[08.2009 - 11.2010] GSJ15 |
44200-35100 |
US $1,343.89 |
||
| replacement | |||||
|
44200
|
44200
44200-35103 Link Assy, Power Steering[08.2009 - 11.2010] GSJ15 |
44200-35103 |
from US $1,017.74 |
||
|
44200
|
44200
44200-35101
Link Assy, Power Steering
[04.2013 - 02.2014] GSJ15..LHD |
44200-35101 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-35103 Link Assy, Power Steering[04.2013 - 02.2014] GSJ15..LHD |
44200-35103 |
from US $1,017.74 |
||
|
44200
|
44200
44200-35102 Link Assy, Power Steering[03.2014 - 05.2015] GSJ15..LHD |
44200-35102 |
US $1,119.66 |
||
| replacement | |||||
|
44200
|
44200
44200-35103 Link Assy, Power Steering[03.2014 - 05.2015] GSJ15..LHD |
44200-35103 |
from US $1,017.74 |
||
|
44200
|
44200
44200-35103 Link Assy, Power Steering[06.2015 -] GSJ15..LHD |
44200-35103 |
from US $1,017.74 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[08.2009 - 11.2010] GSJ15 |
90301-03001 |
US $3.23 |
||
|
45046
|
45046
45046-39505 End Sub-Assy, Tie Rod[07.2007 - 08.2009] GSJ15 |
45046-39505 |
from US $47.31 |
||
|
45046
|
45046
45046-69245 End Sub-Assy, Tie RodTIE ROD, RH [08.2009 - 11.2010] GSJ15 |
45046-69245 |
from US $37.32 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[07.2007 - 11.2010] GSJ15 |
90171-14042 |
from US $2.09 |
||
|
45047
|
45047
45046-39505 End Sub-Assy, Tie Rod[07.2007 - 08.2009] GSJ15 |
45046-39505 |
from US $47.31 |
||
|
45047
|
45047
45046-69245 End Sub-Assy, Tie RodTIE ROD, RH [08.2009 - 11.2010] GSJ15 |
45046-69245 |
from US $37.32 |
||
|
45503
|
45503
45503-35070 End Sub-Assy, Steering RackSTEERING RACK [08.2009 - 11.2010] GSJ15 |
45503-35070 |
from US $111.52 |
||
|
45503
|
45503
45503-39305 End Sub-Assy, Steering RackSTEERING RACK [07.2007 - 08.2009] GSJ15 |
45503-39305 |
from US $122.30 |
||
|
45535
|
45535
45535-26030 Boot, Steering Rack, No.1[07.2007 - 08.2009] GSJ15 |
45535-26030 |
from US $17.82 |
||
|
45535
|
45535
45535-69025 Boot, Steering Rack, No.1STEERING RACK, NO.1 [08.2009 - 11.2010] GSJ15 |
45535-69025 |
from US $13.87 |
||
|
45535A
|
45535A
90460-55016 Clamp(For Power Steering Rack Boot)[07.2007 - 08.2009] GSJ15 |
90460-55016 |
from US $4.30 |
||
|
45535A
|
45535A
90460-60008 Clamp(For Steering Rack Boot)[08.2009 - 11.2010] GSJ15 |
90460-60008 |
from US $2.64 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2007 - 11.2010] GSJ15 |
90467-19021 |
from US $1.31 |
||
|
45536
|
45536
45535-26030 Boot, Steering Rack, No.1[07.2007 - 08.2009] GSJ15 |
45535-26030 |
from US $17.82 |
||
|
45536
|
45536
45535-69015 Boot, Steering Rack, No.2STEERING RACK, NO.2 [08.2009 - 11.2010] GSJ15 |
45535-69015 |
from US $13.85 |
||
|
9011914138
|
9011914138
90119-14138 BOLT WWASHER |
90119-14138 |
US $9.68 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
US $2.33 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.68 |
||
