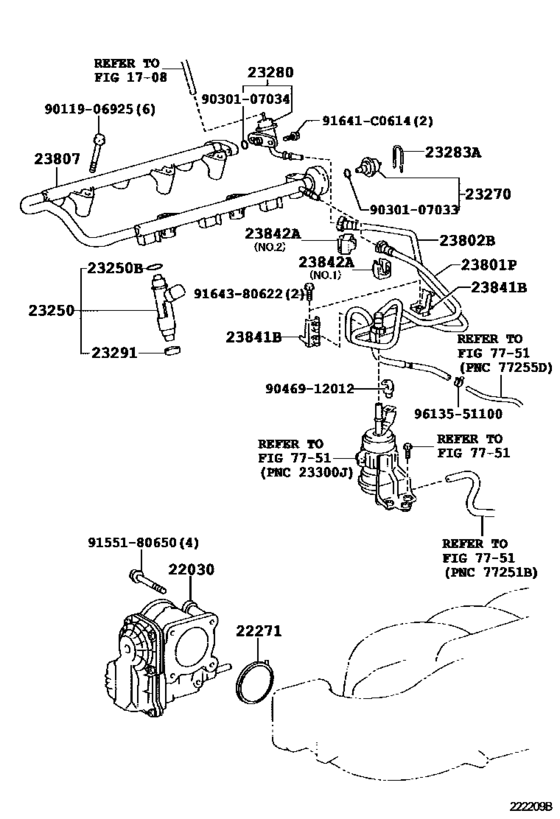

Fuel Injection System ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31010 Body Assy, Throttle W/motor[07.2007 - 08.2009] 1GRFE..GSJ15 |
22030-31010 |
from US $690.14 |
||
|
22030
|
22030
22030-31060 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [08.2009 - 11.2010] 1GRFE..GSJ15 |
22030-31060 |
from US $690.14 |
||
|
22271
|
22271
22271-31012 Gasket, Throttle Body[07.2007 - 08.2009] 1GRFE..GSJ15 |
22271-31012 |
from US $3.61 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[08.2009 - 11.2010] 1GRFE..GSJ15 |
22271-31040 |
from US $3.55 |
||
|
23250
|
23250
23209-39075
Injector Assy, Fuel
[07.2007 - 08.2009] 1GRFE..GSJ15 AISIN |
23209-39075 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39015 Injector Assy, Fuel[07.2007 - 08.2009] 1GRFE..GSJ15 AISIN |
23209-39015 |
from US $203.20 |
||
|
23250
|
23250
23209-39215
Injector Assy, Fuel
[08.2009 - 11.2010] 1GRFE..GSJ15 |
23209-39215 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39445 Injector Set Fuel[08.2009 - 11.2010] 1GRFE..GSJ15 |
23209-39445 |
from US $169.06 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[07.2007 - 11.2010] 1GRFE..GSJ15 |
90301-07033 |
from US $2.13 |
||
|
23270
|
23270
23270-31010
Damper Assy, Fuel Pressure Pulsation
[07.2007 - 08.2009] 1GRFE..GSJ15 |
23270-31010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[07.2007 - 08.2009] 1GRFE..GSJ15 |
23270-31140 |
from US $48.05 |
||
|
23270
|
23270
23270-31080
Damper Assy, Fuel Pressure Pulsation
[08.2009 - 11.2010] 1GRFE..GSJ15 |
23270-31080 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[08.2009 - 11.2010] 1GRFE..GSJ15 |
23270-31140 |
from US $48.05 |
||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[01.2012 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23270-31140 |
from US $48.05 |
||
|
23280
|
23280
23280-31010 Regulator Assy, Fuel Pressure[07.2007 - 08.2009] 1GRFE..GSJ15 |
23280-31010 |
from US $67.64 |
||
|
23280
|
23280
23280-31050 Regulator Assy, Fuel PressureFUEL PRESSURE [08.2009 - 11.2010] 1GRFE..GSJ15 |
23280-31050 |
US $107.74 |
||
| replacement | |||||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[08.2009 - 11.2010] 1GRFE..GSJ15 |
23280-31051 |
from US $60.82 |
||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[01.2012 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23280-31051 |
from US $60.82 |
||
|
23283A
|
23283A
23283-31010 Holder, Fuel Pressure Regulator[07.2007 - 11.2010] 1GRFE..GSJ15 |
23283-31010 |
US $2.27 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[07.2007 - 11.2010] 1GRFE..GSJ15 |
23291-23010 |
from US $2.51 |
||
|
23801P
|
23801P
23801-31060 Pipe Sub-Assy, Fuel, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
23801-31060 |
from US $22.33 |
||
|
23801P
|
23801P
23801-31160 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [08.2009 - 11.2010] 1GRFE..GSJ15 |
23801-31160 |
from US $29.26 |
||
|
23802B
|
23802B
23802-31010 Pipe Sub-Assy, Fuel, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
23802-31010 |
from US $31.07 |
||
|
23802B
|
23802B
23802-31110 Pipe Sub-Assy, Fuel, No.2FUEL, NO.2 [08.2009 - 11.2010] 1GRFE..GSJ15 |
23802-31110 |
from US $36.69 |
||
|
23807
|
23807
23807-31010 Pipe Sub-Assy, Fuel Delivery[07.2007 - 08.2009] 1GRFE..GSJ15 |
23807-31010 |
from US $88.86 |
||
|
23807
|
23807
23807-31120 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.2009 - 11.2010] 1GRFE..GSJ15 |
23807-31120 |
from US $43.51 |
||
|
23841B
|
23841B
23841-31030 Clamp, Fuel Pipe, No.1(For Efi)[07.2007 - 08.2009] 1GRFE..GSJ15 |
23841-31030 |
from US $2.62 |
||
|
23841B
|
23841B
23841-31080 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [08.2009 - 11.2010] 1GRFE..GSJ15 |
23841-31080 |
US $2.62 |
||
|
23842A
|
23842A
23842-31020 Clamp, Fuel Pipe, No.2(For Efi)[07.2007 - 08.2009] 1GRFE..GSJ15 NO.1 |
23842-31020 |
US $5.77 |
||
|
23842A
|
23842A
23842-31030 Clamp, Fuel Pipe, No.2(For Efi)[07.2007 - 08.2009] 1GRFE..GSJ15 NO.2 |
23842-31030 |
US $5.77 |
||
|
23842A
|
23842A
23842-50010 Clamp, Fuel Pipe, No.2(For Efi)FUEL PIPE, NO.2(FOR EFI) [08.2009 - 11.2010] 1GRFE..GSJ15 |
23842-50010 |
US $6.87 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.65 |
||
|
9011906925
|
9011906925
90119-06925 New Genuine Part |
90119-06925 |
US $0.60 |
||
|
9030107033
|
9030107033
90301-07033 Ring, O(For Fuel Injector) |
90301-07033 |
from US $2.13 |
||
|
9030107034
|
9030107034
90301-07034 RING O |
90301-07034 |
from US $2.13 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $2.96 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.78 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
|
9613551100
|
9613551100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.79 |
||
