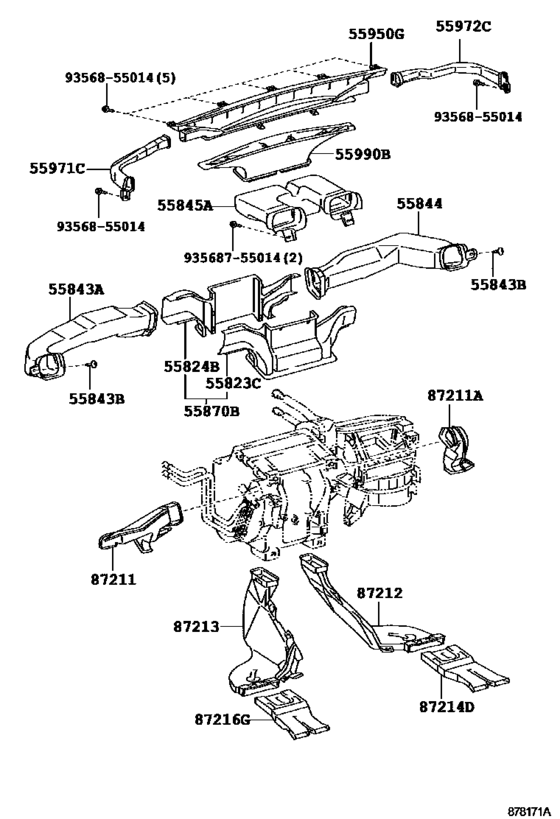

Heating & Air Conditioning - Control & Air Duct ([07.2007 - 11.2010] AIR DUCT (0707-1011) ; (1011- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55823C
|
55823C
55823-35010
Duct, Front Ventilator
[07.2007 - 11.2010] GSJ15 |
55823-35010 |
— | ||
|
55824B
|
55824B
55824-35010
Duct, Front Ventilator
[07.2007 - 11.2010] GSJ15 |
55824-35010 |
— | ||
|
55843A
|
55843A
55843-35060
Duct, Heater To Register, No.1
[07.2007 - 11.2010] GSJ15 |
55843-35060 |
— | ||
|
55843B
|
55843B
90467-05161-C0 Clip[07.2007 - 11.2010] GSJ15 BLACK |
90467-05161-C0 |
from US $0.86 |
||
|
55844
|
55844
55844-35080
Duct, Heater To Register, No.2
[07.2007 - 11.2010] GSJ15 |
55844-35080 |
— | ||
|
55845A
|
55845A
55845-35030 Duct, Heater To Register, No.3HEATER TO REGISTER, NO.3 [07.2007 - 11.2010] GSJ15 |
55845-35030 |
US $29.12 |
||
|
55870B
|
55870B
55870-35010 Duct Assy, Heater To RegisterHEATER TO REGISTER [07.2007 - 11.2010] GSJ15 |
55870-35010 |
US $41.64 |
||
|
55950G
|
55950G
55950-35070
Nozzle Assy, Defroster
[07.2007 - 11.2010] GSJ15 |
55950-35070 |
— | ||
|
55971C
|
55971C
55971-35030
Duct, Side Defroster Nozzle, No.1
[07.2007 - 11.2010] GSJ15 |
55971-35030 |
— | ||
|
55972C
|
55972C
55972-35030
Duct, Side Defroster Nozzle, No.2
[07.2007 - 11.2010] GSJ15 |
55972-35030 |
— | ||
|
55990B
|
55990B
55990-35010
Nozzle Assy, Defroster, Lower
[07.2007 - 11.2010] GSJ15 |
55990-35010 |
— | ||
|
87211
|
87211
87211-35330
Duct, Air, No.1
[07.2007 - 11.2010] GSJ15 |
87211-35330 |
— | ||
|
87211A
|
87211A
87211-35340
Duct, Air, No.2
[07.2007 - 11.2010] GSJ15 |
87211-35340 |
— | ||
|
87212
|
87212
87212-35020 Duct, Air, Rear No.1[07.2007 - 11.2010] GSJ15 |
87212-35020 |
US $50.81 |
||
|
87213
|
87213
87213-35020 Duct, Air, Rear No.3[07.2007 - 11.2010] GSJ15 |
87213-35020 |
US $50.81 |
||
|
87214D
|
87214D
87215-35010 Duct, Air, Rear No.3[07.2007 - 11.2010] GSJ15 |
87215-35010 |
US $20.97 |
||
|
87216G
|
87216G
87216-35010 Duct, Heater Interior Air (To Rear)[07.2007 - 11.2010] GSJ15 |
87216-35010 |
US $20.97 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
