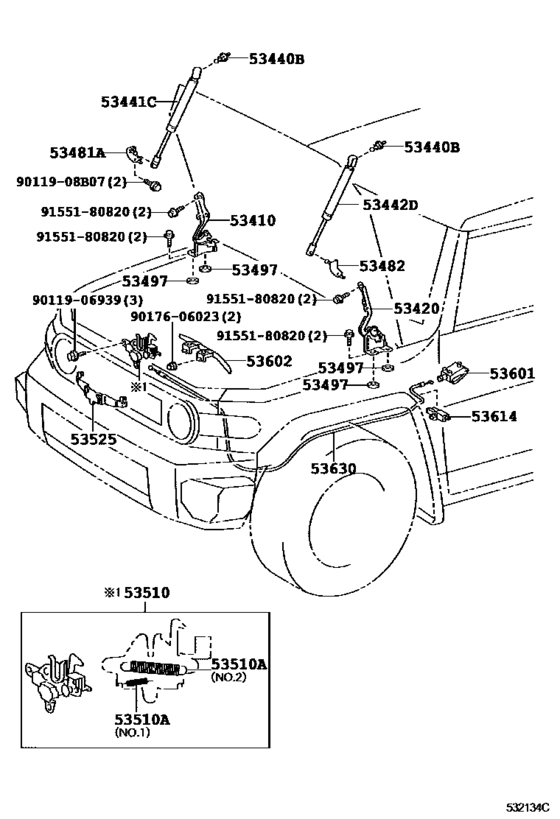

Hood Lock & Hinge ([07.2007 - ] (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-35110 Hinge Assy, Hood, RhHOOD, RH [07.2007 - 11.2010] GSJ15 |
53410-35110 |
from US $26.85 |
||
|
53410
|
53410
53410-35151 Hinge Assy, Hood, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
53410-35151 |
from US $23.30 |
||
|
53420
|
53420
53420-35100 Hinge Assy, Hood, LhHOOD, LH [07.2007 - 11.2010] GSJ15 |
53420-35100 |
from US $26.51 |
||
|
53420
|
53420
53420-35151 Hinge Assy, Hood, Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
53420-35151 |
from US $21.12 |
||
|
53440B
|
53440B
68961-30020 Bolt, Hood Support, No.1[07.2007 - 11.2010] GSJ15 |
68961-30020 |
from US $6.92 |
||
|
53441C
|
53441C
53440-0W121 Support, Hood, Rh[07.2007 - 08.2010] GSJ15 |
53440-0W121 |
US $100.46 |
||
| replacement | |||||
|
53441C
|
53441C
53440-0W122 Support, Hood, Rh[07.2007 - 08.2010] GSJ15 |
53440-0W122 |
from US $112.61 |
||
|
53441C
|
53441C
53440-0W122 Support, Hood, Rh[09.2010 - 11.2010] GSJ15 |
53440-0W122 |
from US $112.61 |
||
|
53441C
|
53441C
53440-0W160
Support, Hood, Rh
[11.2010 - 12.2011] GSJ15 |
53440-0W160 |
— | ||
| replacement | |||||
|
53441C
|
53441C
53440-0W161 Support, Hood, Rh[11.2010 - 12.2011] GSJ15 |
53440-0W161 |
from US $92.61 |
||
|
53441C
|
53441C
53440-0W161 Support, Hood, Rh[01.2012 -] GSJ15..CHI,GCC,GEN,SA |
53440-0W161 |
from US $92.61 |
||
|
53442D
|
53442D
53450-0W111 Support, Hood, Lh[07.2007 - 08.2010] GSJ15 |
53450-0W111 |
US $110.66 |
||
| replacement | |||||
|
53442D
|
53442D
53450-0W112 Support, Hood, Lh[07.2007 - 08.2010] GSJ15 |
53450-0W112 |
from US $115.60 |
||
|
53442D
|
53442D
53450-0W112 Support, Hood, Lh[09.2010 - 11.2010] GSJ15 |
53450-0W112 |
from US $115.60 |
||
|
53442D
|
53442D
53450-0W210
Support, Hood, Lh
[11.2010 - 12.2011] GSJ15 |
53450-0W210 |
— | ||
| replacement | |||||
|
53442D
|
53442D
53450-0W211 Support, Hood, Lh[11.2010 - 12.2011] GSJ15 |
53450-0W211 |
from US $93.88 |
||
|
53442D
|
53442D
53450-0W211 Support, Hood, Lh[01.2012 -] GSJ15..CHI,GCC,GEN,SA |
53450-0W211 |
from US $93.88 |
||
|
53481A
|
53481A
53408-35010 Bracket, Hood Support, RhHOOD SUPPORT, RH [07.2007 - 11.2010] GSJ15 |
53408-35010 |
US $4.51 |
||
|
53482
|
53482
53409-35010 Bracket, Hood Support, LhHOOD SUPPORT, LH [07.2007 - 11.2010] GSJ15 |
53409-35010 |
US $4.51 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[07.2007 - 11.2010] GSJ15 T=1.0 |
53497-50020 |
from US $2.19 |
||
|
53510
|
53510
53510-35240 Lock Assy, HoodHOOD [07.2007 - 11.2010] GSJ15 |
53510-35240 |
from US $27.08 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[07.2007 - 11.2010] GSJ15 WD=0.9,CW=20.5,NO.1:REFER ILLUST. |
90506-09050 |
from US $1.38 |
||
|
53510A
|
53510A
90506-18061 Spring, Tension(For Hood Lock)[07.2007 - 11.2010] GSJ15 WD=1.8,CW=18,NO.2:REFER ILLUST. |
90506-18061 |
US $3.23 |
||
|
53525
|
53525
53525-33040 Protector, Hood Lock Release Lever[07.2007 - 11.2010] GSJ15 |
53525-33040 |
from US $11.84 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
53601-52010-B3 |
from US $26.04 |
||
|
53602
|
53602
53602-60020 Protector Sub-Assy, Hood Lock Control CableHOOD LOCK CONTROL CABLE [07.2007 - 11.2010] GSJ15 |
53602-60020 |
US $10.64 |
||
|
53614
|
53614
53614-35020
Clamp, Hood Lock Control Cable
[07.2007 - 11.2010] GSJ15 |
53614-35020 |
— | ||
|
53630
|
53630
53630-35090 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [07.2007 - 11.2010] GSJ15 |
53630-35090 |
from US $18.31 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.43 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.76 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
