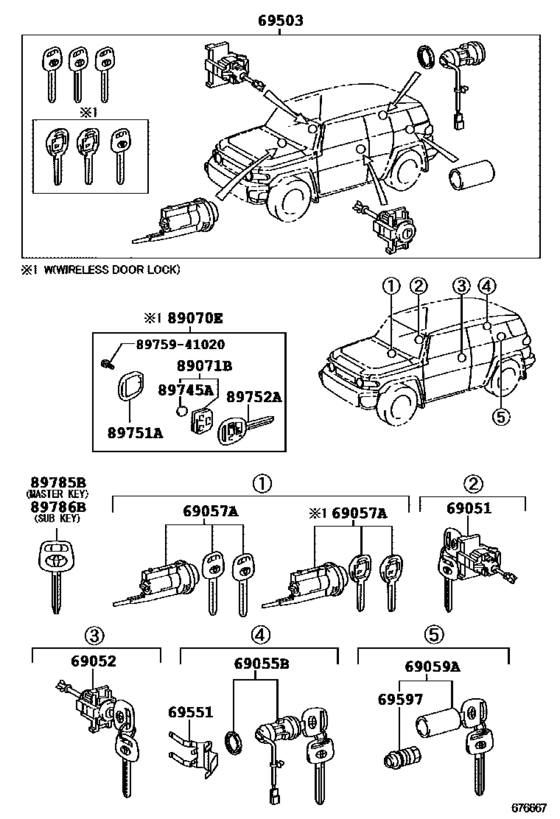

Lock Cylinder Set ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-35170
Cylinder & Key Set, Door Lock, Rh
[07.2007 - 11.2010] GSJ15 |
69051-35170 |
— | ||
|
69051
|
69051
69051-35180
Cylinder & Key Set, Door Lock, Rh
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69051-35180 |
— | ||
|
69052
|
69052
69052-35170 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [07.2007 - 11.2010] GSJ15 |
69052-35170 |
US $48.05 |
||
|
69055B
|
69055B
69055-35130 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [07.2007 - 11.2010] GSJ15 |
69055-35130 |
US $49.94 |
||
|
69057A
|
69057A
69057-35230
Cylinder & Key Set, Ignition Switch Lock
[07.2007 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC WIRELESS DOOR LOCK-WITH |
69057-35230 |
— | ||
|
69059A
|
69059A
69059-60220 Cylinder & Key Set, Spare Wheel LockSPARE WHEEL LOCK [07.2007 - 11.2010] GSJ15 |
69059-60220 |
from US $38 |
||
|
69503
|
69503
69005-35A40
Cylinder Set, Lock
[07.2007 - 08.2009] GSJ15..CHI,GEN; GSJ15..GCC WIRELESS DOOR LOCK-WITH |
69005-35A40 |
— | ||
|
69503
|
69503
69005-35B20
Cylinder Set, Lock
[08.2009 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC WIRELESS DOOR LOCK-WITH |
69005-35B20 |
— | ||
|
69503
|
69503
69005-35B50 Cylinder Set, Lock[11.2010 -] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC WIRELESS DOOR LOCK-WITH |
69005-35B50 |
US $207.69 |
||
|
69551
|
69551
69511-16030 Retainer, Front Door Lock Cylinder[07.2007 - 11.2010] GSJ15 |
69511-16030 |
US $2.52 |
||
|
69597
|
69597
69597-60090 Nut, Spare Wheel Lock[07.2007 - 11.2010] GSJ15 |
69597-60090 |
US $23.94 |
||
|
89070E
|
89070E
89070-35160
Transmitter Assy, Door Control
[08.2009 - 11.2010] GSJ15..CHI BLANK KEY |
89070-35160 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-35161
Transmitter Assy, Door Control
[08.2009 - 11.2010] GSJ15..CHI BLANK KEY |
89070-35161 |
— | ||
|
89070E
|
89070E
89070-35161
Transmitter Assy, Door Control
[12.2011 - 12.2015] GSJ15..CHI BLANK KEY |
89070-35161 |
— | ||
|
89070E
|
89070E
89070-60A22 Transmitter Assy, Door Control[12.2007 - 08.2009] GSJ15..CHI BLANK KEY |
89070-60A22 |
US $216.94 |
||
| replacement | |||||
|
89070E
|
89070E
89070-60A23 Transmitter Assy, Door Control[12.2007 - 08.2009] GSJ15..CHI BLANK KEY |
89070-60A23 |
US $216.94 |
||
|
89071B
|
89071B
89071-35140
Module Set, Transmitter Sub-Assy, Door Control
[08.2009 - 11.2010] GSJ15..CHI |
89071-35140 |
— | ||
|
89071B
|
89071B
89071-42060 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [12.2007 - 08.2009] GSJ15..CHI |
89071-42060 |
US $203.70 |
||
|
89745A
|
89745A
89745-40010 Transmitter Battery[11.2010 -] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC WIRELESS DOOR LOCK-WITH |
89745-40010 |
from US $7.88 |
||
|
89751A
|
89751A
89751-28022
Cover, Transmitter Housing
[12.2007 - 11.2010] GSJ15..CHI |
89751-28022 |
— | ||
| replacement | |||||
|
89751A
|
89751A
89751-35080
Cover, Transmitter Housing
[12.2007 - 11.2010] GSJ15..CHI |
89751-35080 |
— | ||
|
89751A
|
89751A
89751-35080
Cover, Transmitter Housing
[12.2011 - 12.2015] GSJ15..CHI |
89751-35080 |
— | ||
|
89752A
|
89752A
89752-60050 Case, Transmitter HousingTRANSMITTER HOUSING [12.2007 - 11.2010] GSJ15..CHI BLANK KEY |
89752-60050 |
from US $17.63 |
||
|
89786B
|
89786B
89786-60170 Transmitter, Transponder Key Sub[07.2007 - 08.2009] GSJ15 BLANK KEY |
89786-60170 |
from US $34.33 |
||
|
89786B
|
89786B
89786-60220 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.2009 - 11.2010] GSJ15 BLANK KEY |
89786-60220 |
from US $33.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.08 |
||
