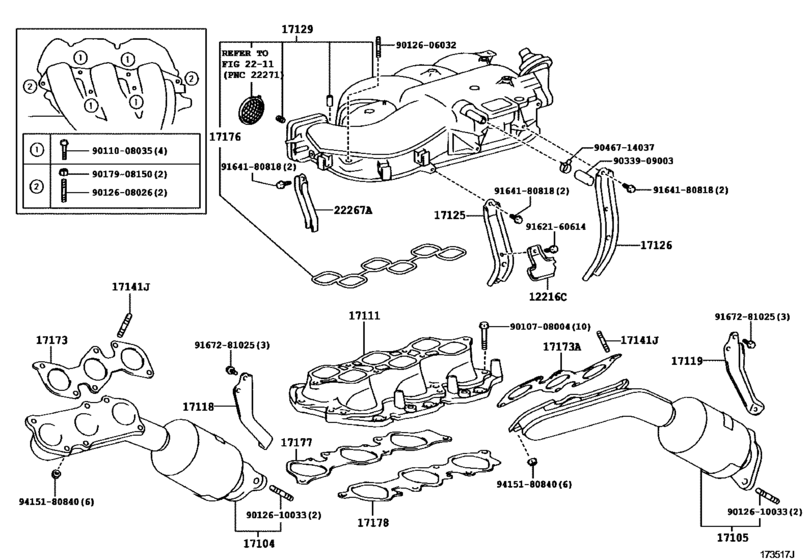

Manifold ([07.2007 - 08.2009] (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12216C
|
12216C
12216-31020 Plate, Oil Baffle[07.2007 - 08.2009] 1GRFE..GSJ15 |
12216-31020 |
US $7.51 |
||
|
17104
|
17104
17140-31320 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [07.2007 - 08.2009] 1GRFE..GSJ15 |
17140-31320 |
US $1,429.21 |
||
|
17104
|
17104
17140-31590 Manifold Sub-Assy, Exhaust, Rh[08.2009 - 11.2010] 1GRFE..GSJ15 |
17140-31590 |
US $1,307.96 |
||
|
17105
|
17105
17150-31320 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [07.2007 - 08.2009] 1GRFE..GSJ15 |
17150-31320 |
US $1,429.21 |
||
|
17105
|
17105
17150-31590 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [08.2009 - 11.2010] 1GRFE..GSJ15 |
17150-31590 |
from US $950.77 |
||
|
17111
|
17111
17101-31010 Manifold, Intake[07.2007 - 08.2009] 1GRFE..GSJ15 |
17101-31010 |
US $320.32 |
||
| replacement | |||||
|
17111
|
17111
17101-31011 Manifold, Intake[07.2007 - 08.2009] 1GRFE..GSJ15 |
17101-31011 |
US $241.70 |
||
|
17111
|
17111
17111-31200 Manifold, IntakeINTAKE [08.2009 - 11.2010] 1GRFE..GSJ15 |
17111-31200 |
US $352.35 |
||
|
17118
|
17118
17118-31030 Stay, Manifold[07.2007 - 11.2010] 1GRFE..GSJ15 |
17118-31030 |
US $17.47 |
||
|
17119
|
17119
17119-31040 Stay, Manifold, No.2[07.2007 - 11.2010] 1GRFE..GSJ15 |
17119-31040 |
US $26.21 |
||
|
17125
|
17125
17125-31010 Stay, Surge Tank, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
17125-31010 |
US $16.60 |
||
|
17125
|
17125
17125-31070 Stay, Surge Tank, No.1SURGE TANK, NO.1 [08.2009 - 11.2010] 1GRFE..GSJ15 |
17125-31070 |
US $13.98 |
||
|
17126
|
17126
17126-31010 Stay, Surge Tank, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
17126-31010 |
US $17.04 |
||
|
17126
|
17126
17126-31060 Stay, Surge Tank, No.2SURGE TANK, NO.2 [08.2009 - 11.2010] 1GRFE..GSJ15 |
17126-31060 |
US $13.10 |
||
| replacement | |||||
|
17126
|
17126
17126-31061 Stay, Surge Tank, No.2[08.2009 - 11.2010] 1GRFE..GSJ15 |
17126-31061 |
US $9.90 |
||
|
17126
|
17126
17126-31061 Stay, Surge Tank, No.2[09.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17126-31061 |
US $9.90 |
||
|
17129
|
17129
17109-31012
Tank, Intake Air Surge
[07.2007 - 08.2009] 1GRFE..GSJ15 |
17109-31012 |
— | ||
| replacement | |||||
|
17129
|
17129
17109-31015 Tank, Intake Air Surge[07.2007 - 08.2009] 1GRFE..GSJ15 |
17109-31015 |
from US $304.48 |
||
|
17129
|
17129
17109-31110 Tank, Intake Air SurgeINTAKE AIR SURGE [08.2009 - 11.2010] 1GRFE..GSJ15 |
17109-31110 |
US $599.87 |
||
| replacements | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[08.2009 - 11.2010] 1GRFE..GSJ15 |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
44750-0C082
Hose Assy, Vacuum
[08.2009 - 11.2010] 1GRFE..GSJ15 |
44750-0C082 |
— | ||
|
17129
|
17129
17109-31112 Tank, Intake Air Surge[05.2012 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17109-31112 |
US $599.87 |
||
| replacement | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[05.2012 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
17109-31180 Tank, Intake Air Surge[12.2011 - 05.2012] 1GRFE..GSJ15 |
17109-31180 |
US $599.87 |
||
| replacements | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[12.2011 - 05.2012] 1GRFE..GSJ15 |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
44750-0C082
Hose Assy, Vacuum
[12.2011 - 05.2012] 1GRFE..GSJ15 |
44750-0C082 |
— | ||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[09.2012 -] 1GRFE..GSJ15..CHI,GCC,SA |
17109-31181 |
from US $306.81 |
||
|
17141J
|
17141J
90126-08052 Bolt, Stud(For Oil Pan)[07.2007 - 08.2009] 1GRFE..GSJ15 |
90126-08052 |
from US $0.76 |
||
|
17173
|
17173
17173-31010 Gasket, Exhaust Manifold To Head[07.2007 - 08.2009] 1GRFE..GSJ15 |
17173-31010 |
from US $12.37 |
||
|
17173
|
17173
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [08.2009 - 11.2010] 1GRFE..GSJ15 |
17173-31050 |
from US $12.35 |
||
|
17173A
|
17173A
17173-31010 Gasket, Exhaust Manifold To Head[07.2007 - 08.2009] 1GRFE..GSJ15 |
17173-31010 |
from US $12.37 |
||
|
17173A
|
17173A
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [08.2009 - 11.2010] 1GRFE..GSJ15 |
17173-31050 |
from US $12.35 |
||
|
17176
|
17176
17176-31010
Gasket, Air Surge Tank To Intake Manifold
[07.2007 - 08.2009] 1GRFE..GSJ15 |
17176-31010 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-31160 Gasket, Air Surge Tank To Intake Manifold[07.2007 - 08.2009] 1GRFE..GSJ15 |
17176-31160 |
from US $10.39 |
||
|
17176
|
17176
17176-31100
Gasket, Air Surge Tank To Intake Manifold
[08.2009 - 11.2010] 1GRFE..GSJ15 |
17176-31100 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-31140 Gasket, Air Surge Tank To Intake Manifold[08.2009 - 11.2010] 1GRFE..GSJ15 |
17176-31140 |
from US $12.71 |
||
|
17176
|
17176
17176-31140 Gasket, Air Surge Tank To Intake Manifold[09.2012 -] 1GRFE..GSJ15..CHI,GCC,SA |
17176-31140 |
from US $12.71 |
||
|
17177
|
17177
17177-31010 Gasket, Intake Manifold To Head, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
17177-31010 |
from US $6.50 |
||
|
17177
|
17177
17177-31050 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [08.2009 - 11.2010] 1GRFE..GSJ15 |
17177-31050 |
US $7.28 |
||
| replacement | |||||
|
17177
|
17177
17177-31051 Gasket, Intake Manifold To Head, No.1[08.2009 - 11.2010] 1GRFE..GSJ15 |
17177-31051 |
from US $5.24 |
||
|
17177
|
17177
17177-31051 Gasket, Intake Manifold To Head, No.1[10.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17177-31051 |
from US $5.24 |
||
|
17178
|
17178
17178-31010 Gasket, Intake Manifold To Head, No.2[07.2007 - 08.2009] 1GRFE..GSJ15 |
17178-31010 |
from US $6.56 |
||
|
17178
|
17178
17178-31040 Gasket, Intake Manifold To Head, No.2INTAKE MANIFOLD TO HEAD, NO.2 [08.2009 - 11.2010] 1GRFE..GSJ15 |
17178-31040 |
US $7.28 |
||
| replacement | |||||
|
17178
|
17178
17178-31041 Gasket, Intake Manifold To Head, No.2[08.2009 - 11.2010] 1GRFE..GSJ15 |
17178-31041 |
from US $5.19 |
||
|
17178
|
17178
17178-31041 Gasket, Intake Manifold To Head, No.2[10.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
17178-31041 |
from US $5.19 |
||
|
22267A
|
22267A
22267-31010 Bracket, Throttle Body[07.2007 - 11.2010] 1GRFE..GSJ15 |
22267-31010 |
from US $8.01 |
||
|
9010708004
|
9010708004
90107-08004 New Genuine Part |
90107-08004 |
US $1.79 |
||
|
9011008035
|
9011008035
90110-08035 New Genuine Part |
90110-08035 |
US $1.38 |
||
|
9012606032
|
9012606032
90126-06032 STUD HEXALOBULAR |
90126-06032 |
US $0.87 |
||
|
9012608026
|
9012608026
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head) |
90126-08026 |
from US $2.28 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.48 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.97 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9046714037
|
9046714037
90467-14037 Clip Or Clamp(For Ventilation Hose) |
90467-14037 |
US $2.33 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.76 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.10 |
||
|
9415180840
|
9415180840
94151-80840 NUT FLANGE |
94151-80840 |
from US $0.78 |
||
