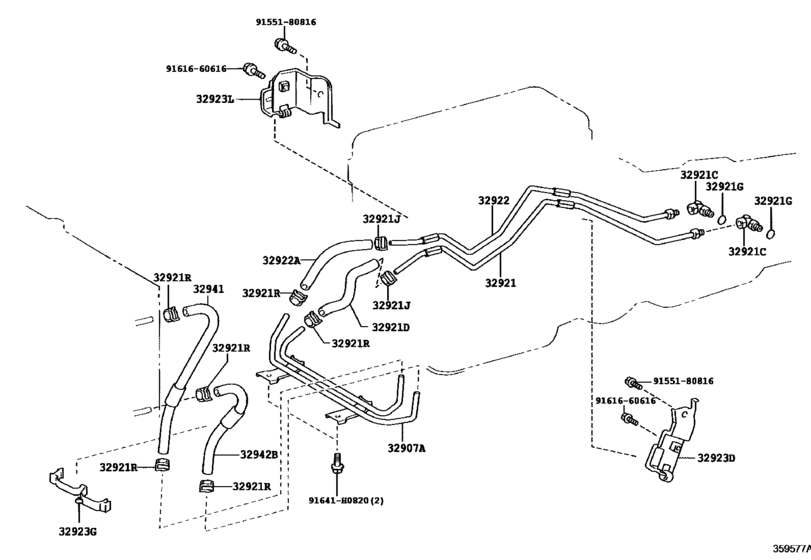

Oil Cooler & Tube (Atm) ([07.2007 - ] A750F (0707- )ATM) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32907A
|
32907A
32907-60070
Tube, Oil Cooler
[07.2007 - 07.2009] GSJ15..ATM |
32907-60070 |
— | ||
| replacement | |||||
|
32907A
|
32907A
32907-60071 TUBE SUB-ASSY, OIL[07.2007 - 07.2009] GSJ15..ATM |
32907-60071 |
from US $63.76 |
||
|
32907A
|
32907A
32907-60300
Tube, Oil Cooler
[08.2009 - 11.2010] GSJ15..ATM |
32907-60300 |
— | ||
| replacement | |||||
|
32907A
|
32907A
32907-60301 TUBE SUBASSY OIL[08.2009 - 11.2010] GSJ15..ATM |
32907-60301 |
from US $42 |
||
|
32921
|
32921
32921-35430 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.2009 - 11.2010] GSJ15..ATM |
32921-35430 |
US $15.38 |
||
|
32921
|
32921
32921-60250 Tube, Oil Cooler Inlet, No.1[07.2007 - 08.2009] GSJ15..ATM |
32921-60250 |
US $22.54 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[07.2007 - 08.2009] GSJ15..CHI |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
32941-35320 Hose(For Oil Cooler Inlet)[08.2009 - 11.2010] GSJ15..ATM |
32941-35320 |
US $15.29 |
||
|
32921D
|
32921D
90445-17124 Hose(For Oil Cooler Inlet)[07.2007 - 08.2009] GSJ15..ATM |
90445-17124 |
from US $11.29 |
||
|
32921G
|
32921G
90301-11030 Ring, O(For Oil Cooler Tube Union)[07.2007 - 08.2009] GSJ15..CHI |
90301-11030 |
from US $2.09 |
||
|
32921J
|
32921J
90466-16004 Clip(For Ventilation Hose No.2)[08.2009 - 11.2010] GSJ15..ATM |
90466-16004 |
from US $1.81 |
||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[07.2007 - 08.2009] GSJ15..ATM |
90467-16022 |
from US $2.26 |
||
|
32921R
|
32921R
90466-16004 Clip(For Ventilation Hose No.2)[07.2007 - 11.2010] GSJ15..ATM |
90466-16004 |
from US $1.81 |
||
|
32922
|
32922
32922-35460 Tube, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [08.2009 - 11.2010] GSJ15..ATM |
32922-35460 |
US $12.23 |
||
|
32922
|
32922
32922-60270 Tube, Oil Cooler Outlet, No.1[07.2007 - 08.2009] GSJ15..ATM |
32922-60270 |
US $22.54 |
||
|
32922A
|
32922A
32941-26170 Hose(For Oil Cooler Inlet)[07.2007 - 08.2009] GSJ15..ATM |
32941-26170 |
US $25.86 |
||
|
32922A
|
32922A
90445-17075
Hose(For Oil Cooler Inlet)
[08.2009 - 11.2010] GSJ15..ATM |
90445-17075 |
— | ||
| replacement | |||||
|
32922A
|
32922A
90445-17106 Hose(For Oil Cooler Inlet)[08.2009 - 11.2010] GSJ15..ATM |
90445-17106 |
from US $16.26 |
||
|
32923D
|
32923D
32909-60160 Clamp, Automatic Transmission Oil Cooler Tube, No.5[07.2007 - 11.2010] GSJ15..ATM |
32909-60160 |
US $11.53 |
||
|
32923G
|
32923G
32928-60100 Clamp, Automatic Transmission Oil Cooler Tube, No.8[07.2007 - 11.2010] GSJ15..ATM |
32928-60100 |
US $5.73 |
||
|
32923L
|
32923L
32909-60130 Clamp, Automatic Transmission Oil Cooler Tube, No.3[07.2007 - 11.2010] GSJ15..ATM |
32909-60130 |
US $13.63 |
||
|
32941
|
32941
32941-60280 Hose, Oil Cooler Inlet, No.1[07.2007 - 07.2009] GSJ15..ATM |
32941-60280 |
from US $49.19 |
||
|
32941
|
32941
32943-60550 Hose, Oil Cooler Inlet, No.1TRANSMISSION OIL COOLER, NO.1 [08.2009 - 11.2010] GSJ15..ATM |
32943-60550 |
from US $28.90 |
||
|
32942B
|
32942B
32942-60390 Hose, Oil Cooler Outlet, No.3[07.2007 - 07.2009] GSJ15..ATM |
32942-60390 |
from US $41.14 |
||
|
32942B
|
32942B
32943-60560 Hose, Oil Cooler Outlet, No.3TRANSMISSION OIL COOLER, NO.2 [08.2009 - 11.2010] GSJ15..ATM |
32943-60560 |
from US $18.65 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.78 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.61 |
||
