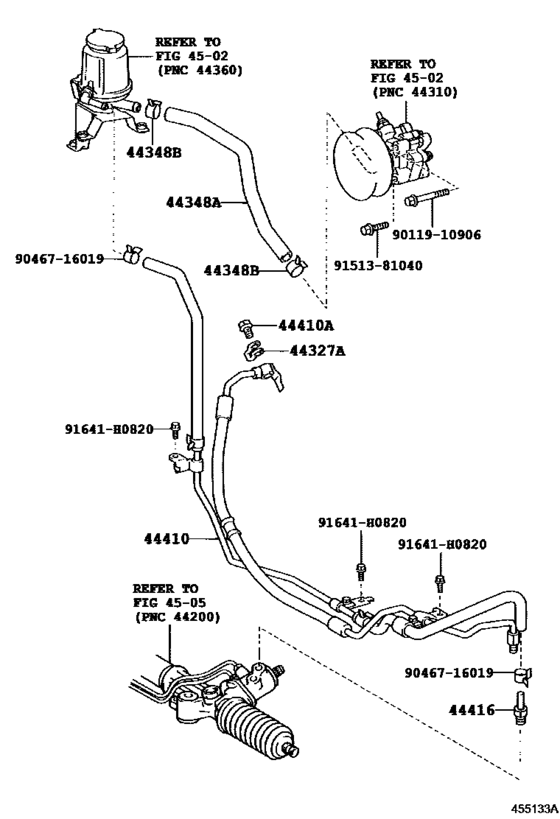

Power Steering Tube ([07.2007 - 08.2009] (0707-0908)CHI,GEN) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30040 Gasket, Pressure Port, No.1[07.2007 - 11.2010] GSJ15 |
44327-30040 |
from US $1.88 |
||
|
44348A
|
44348A
44348-35280 Hose, Oil Reservoir To Pump, No.1[07.2007 - 08.2009] GSJ15 |
44348-35280 |
from US $35.15 |
||
|
44348A
|
44348A
44348-60430 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [08.2009 - 11.2010] GSJ15 |
44348-60430 |
from US $36.25 |
||
|
44348B
|
44348B
90467-21010 Clip(For Ventilation Hose No.2)[07.2007 - 11.2010] GSJ15 |
90467-21010 |
from US $2.47 |
||
|
44410
|
44410
44410-35691 Tube Assy, Pressure FeedPRESSURE FEED [07.2007 - 08.2009] GSJ15..CHI,GEN |
44410-35691 |
from US $279.57 |
||
|
44410
|
44410
44410-35770
Tube Assy, Pressure Feed
[08.2009 - 11.2010] GSJ15..CHI,GEN |
44410-35770 |
— | ||
|
44410A
|
44410A
90401-16034 Bolt, Union(For Pressure Feed Tube)[07.2007 - 11.2010] GSJ15 |
90401-16034 |
from US $6.81 |
||
|
44416
|
44416
44416-60370 Tube, Return(For Steering Gear Outlet)[07.2007 - 08.2009] GSJ15 |
44416-60370 |
US $9.68 |
||
|
44416
|
44416
44416-60450 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [08.2009 - 11.2010] GSJ15 |
44416-60450 |
US $10.75 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9011910906
|
9011910906
90119-10906 New Genuine Part |
90119-10906 |
US $3.03 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9151381040
|
9151381040
91513-81040 New Genuine Part |
91513-81040 |
US $0.73 |
