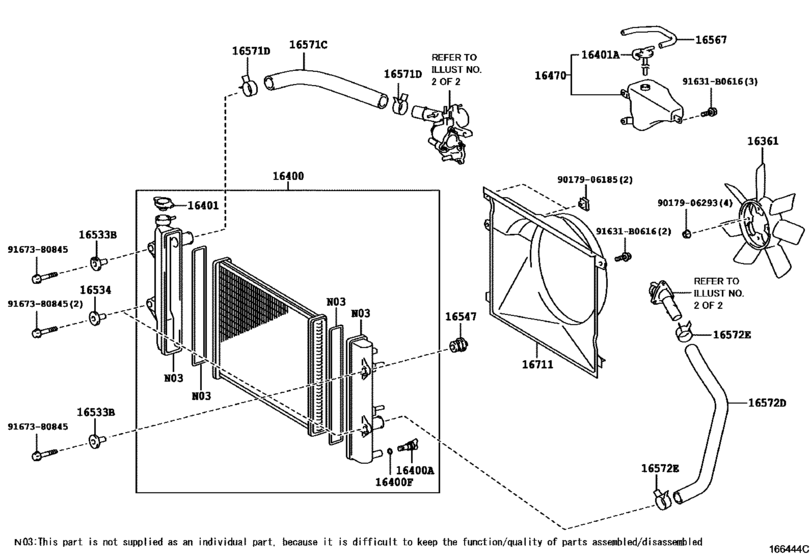

Radiator & Water Outlet ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31060 Fan[07.2007 - 11.2010] 1GRFE..GSJ15 |
16361-31060 |
from US $103.32 |
||
|
16400
|
16400
16400-31461 Radiator Assy[11.2010 - 02.2012] 1GRFE..GSJ15..CHI |
16400-31461 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[11.2010 - 02.2012] 1GRFE..GSJ15..CHI |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31462 Radiator Assy[03.2012 - 09.2014] 1GRFE..GSJ15..CHI |
16400-31462 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[03.2012 - 09.2014] 1GRFE..GSJ15..CHI |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31463 Radiator Assy[10.2014 - 12.2015] 1GRFE..GSJ15..CHI |
16400-31463 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[10.2014 - 12.2015] 1GRFE..GSJ15..CHI |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31650
Radiator Assy
[12.2007 - 11.2010] 1GRFE..GSJ15..CHI |
16400-31650 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[12.2007 - 11.2010] 1GRFE..GSJ15..CHI |
16400-31464 |
US $714.90 |
||
|
16400A
|
16400A
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2007 - 11.2010] 1GRFE..GSJ15 |
23322-54010 |
from US $4.73 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[07.2007 - 11.2010] 1GRFE..GSJ15 |
16492-21050 |
from US $2.11 |
||
|
16401
|
16401
16401-31791 Cap Sub-Assy, Radiator[08.2014 - 09.2014] 1GRFE..GSJ15..ATM |
16401-31791 |
from US $16.97 |
||
|
16401
|
16401
16401-31792
Cap Sub-Assy, Radiator
[10.2014 - 03.2016] 1GRFE..GSJ15 |
16401-31792 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[10.2014 - 03.2016] 1GRFE..GSJ15 |
16401-36020 |
from US $16.31 |
||
|
16401
|
16401
16401-46610
Cap Sub-Assy, Radiator
[02.2009 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
16401-46610 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-30020 Cap Sub-Assy, Radiator[02.2009 - 11.2010] 1GRFE..GSJ15..CHI,GEN |
16401-30020 |
from US $16.31 |
||
|
16401A
|
16401A
16405-50051 Cap Sub-Assy, Radiator Reserve Tank[07.2007 - 11.2010] 1GRFE..GSJ15 |
16405-50051 |
from US $5.77 |
||
|
16470
|
16470
16470-31130 Tank Assy, Radiator ReserveRADIATOR RESERVE [08.2009 - 11.2010] 1GRFE..GSJ15 |
16470-31130 |
from US $45.02 |
||
|
16470
|
16470
16470-50140 Tank Assy, Radiator Reserve[07.2007 - 07.2009] 1GRFE..GSJ15 |
16470-50140 |
from US $65.02 |
||
|
16533B
|
16533B
16533-50090 Support, Radiator, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 NO.1 |
16533-50090 |
from US $5.64 |
||
|
16533B
|
16533B
16534-50050 Support, Radiator, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 NO.2 |
16534-50050 |
from US $5.49 |
||
|
16534
|
16534
16534-50050 Support, Radiator, No.1[07.2007 - 11.2010] 1GRFE..GSJ15 |
16534-50050 |
from US $5.49 |
||
|
16547
|
16547
16547-50010 Bush, Radiator Support, No.1[07.2007 - 11.2010] 1GRFE..GSJ15 |
16547-50010 |
from US $7.30 |
||
|
16567
|
16567
16567-31010 Hose(For Radiator Reserve Tank)[07.2007 - 11.2010] 1GRFE..GSJ15 |
16567-31010 |
from US $5.04 |
||
|
16571C
|
16571C
16571-31130 Hose, Radiator, No.1[07.2007 - 08.2009] 1GRFE..GSJ15 |
16571-31130 |
from US $19.48 |
||
|
16571C
|
16571C
16571-31290
Hose, Radiator, No.1
[08.2009 - 05.2010] 1GRFE..GSJ15 |
16571-31290 |
— | ||
| replacement | |||||
|
16571C
|
16571C
16571-31291 Hose, Radiator, No.1[08.2009 - 05.2010] 1GRFE..GSJ15 |
16571-31291 |
US $15.40 |
||
|
16571C
|
16571C
16571-31291 Hose, Radiator, No.1[06.2010 - 11.2010] 1GRFE..GSJ15 |
16571-31291 |
US $15.40 |
||
|
16571D
|
16571D
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[07.2007 - 11.2010] 1GRFE..GSJ15 |
96136-44301 |
from US $5.56 |
||
|
16572D
|
16572D
16572-31170 Hose, Radiator, No.2[07.2007 - 11.2010] 1GRFE..GSJ15 |
16572-31170 |
from US $17.06 |
||
|
16572E
|
16572E
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[07.2007 - 11.2010] 1GRFE..GSJ15 |
96136-44301 |
from US $5.56 |
||
|
16711
|
16711
16711-31200 Shroud, Fan[07.2007 - 08.2009] 1GRFE..GSJ15 |
16711-31200 |
from US $111.47 |
||
|
16711
|
16711
16711-31510 Shroud, FanFAN [08.2009 - 11.2010] 1GRFE..GSJ15 |
16711-31510 |
from US $79.89 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.94 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.82 |
||
|
9167380845
|
9167380845
91673-80845 New Genuine Part |
91673-80845 |
US $1.97 |
||
