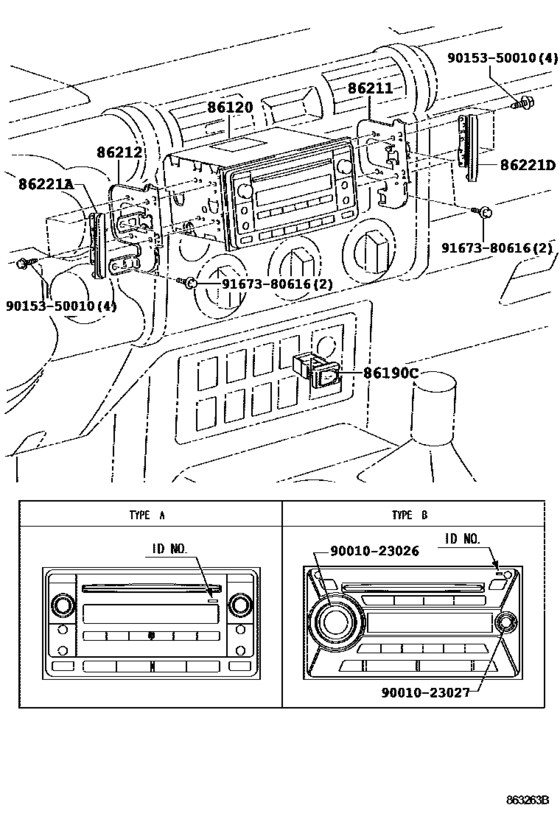

Radio Receiver & Amplifier & Condenser ([07.2007 - 11.2010] (0707-1011)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-35440
Receiver Assy, Radio
[12.2007 - 11.2010] GSJ15..CHI FUJITSU TEN,ID=12872; GSJ15..CHI FUJITSU TEN,ID=12872,TYPE A:REFER TO ILLUSTRATION |
86120-35440 |
— | ||
|
86120
|
86120
86120-35650
Receiver Assy, Radio
[11.2010 - 12.2015] GSJ15..CHI PIONEER,ID=P10004 |
86120-35650 |
— | ||
|
86190C
|
86190C
86190-48030 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [11.2010 -] GSJ15..CHI,SA |
86190-48030 |
from US $86.68 |
||
|
86190C
|
86190C
86190-53010 Adapter Assy, Stereo Jack, No.1[07.2007 - 11.2010] GSJ15 |
86190-53010 |
US $119.39 |
||
|
86211
|
86211
86211-35061 Bracket, Radio, No.1RADIO, NO.1 [07.2007 - 11.2010] GSJ15 |
86211-35061 |
US $6.41 |
||
|
86212
|
86212
86212-35061 Bracket, Radio, No.2RADIO, NO.2 [07.2007 - 11.2010] GSJ15 |
86212-35061 |
US $6.41 |
||
|
9001023026
|
9001023026
90010-23026
KNOB
|
90010-23026 |
— | ||
|
9001023027
|
9001023027
90010-23027
KNOB
|
90010-23027 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
