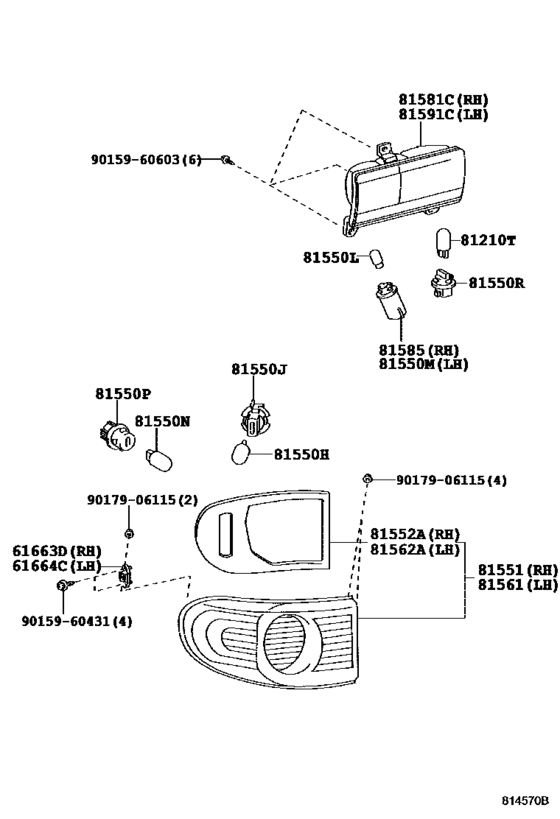

Rear Combination Lamp ([12.2007 - ] (0712- )CHI ; (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663D
|
61663D
61663-35010 Support, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.2007 - 11.2010] GSJ15 |
61663-35010 |
from US $9.26 |
||
|
61664C
|
61664C
61664-35010 Support, Rear Combination Lamp, Lh[07.2007 - 11.2010] GSJ15 |
61664-35010 |
from US $12.14 |
||
|
81210T
|
81210T
90981-13043 Bulb (12V 21W)[12.2007 - 11.2010] GSJ15..CHI |
90981-13043 |
from US $3.15 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[07.2007 - 11.2010] GSJ15 |
90981-13044 |
from US $3.46 |
||
|
81550J
|
81550J
90075-60002 Socket, Tail & Stop Lamp[07.2007 - 11.2010] GSJ15 |
90075-60002 |
from US $3.91 |
||
|
81550L
|
81550L
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[12.2007 - 11.2010] GSJ15..CHI |
90981-11059 |
from US $3.15 |
||
|
81550M
|
81550M
90075-60001 Socket And Wire, License Plate Lamp[12.2007 - 11.2010] GSJ15..CHI |
90075-60001 |
from US $6.40 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[07.2007 - 11.2010] GSJ15 |
90981-11059 |
from US $3.15 |
||
|
81550P
|
81550P
90075-60021 Socket, Lamp[07.2007 - 11.2010] GSJ15 |
90075-60021 |
from US $6.27 |
||
|
81550R
|
81550R
90075-60082 Socket, Rear Fog LampREAR FOG LAMP [12.2007 - 11.2010] GSJ15..CHI |
90075-60082 |
US $7.86 |
||
|
81551
|
81551
81551-35350
Lens, Rear Combination Lamp, Rh
[12.2007 - 02.2009] GSJ15..CHI |
81551-35350 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-35351 Lens, Rear Combination Lamp, Rh[12.2007 - 02.2009] GSJ15..CHI |
81551-35351 |
from US $122.97 |
||
|
81551
|
81551
81551-35351 Lens, Rear Combination Lamp, Rh[02.2009 - 11.2010] GSJ15..CHI |
81551-35351 |
from US $122.97 |
||
|
81552A
|
81552A
81552-35341 Gasket, Rear Combination Lamp, Rh[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81552-35341 |
US $19.66 |
||
|
81561
|
81561
81561-35350
Lens, Rear Combination Lamp, Lh
[12.2007 - 02.2009] GSJ15..CHI |
81561-35350 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-35351 Lens, Rear Combination Lamp, Lh[12.2007 - 02.2009] GSJ15..CHI |
81561-35351 |
from US $120.23 |
||
|
81561
|
81561
81561-35351 Lens, Rear Combination Lamp, Lh[02.2009 - 11.2010] GSJ15..CHI |
81561-35351 |
from US $120.23 |
||
|
81562A
|
81562A
81562-35301 Gasket, Rear Combination Lamp, Lh[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81562-35301 |
US $21.14 |
||
|
81581C
|
81581C
81581-35020
Lens And Body, Rear Lamp, Rh
[12.2007 - 02.2009] GSJ15..CHI |
81581-35020 |
— | ||
| replacement | |||||
|
81581C
|
81581C
81581-35021 Lens And Body, Rear Lamp, Rh[12.2007 - 02.2009] GSJ15..CHI |
81581-35021 |
from US $90.17 |
||
|
81581C
|
81581C
81581-35021 Lens And Body, Rear Lamp, Rh[02.2009 - 11.2010] GSJ15..CHI |
81581-35021 |
from US $90.17 |
||
|
81585
|
81585
81585-35020 Socket & Wire, Rear LampREAR LAMP [12.2007 - 11.2010] GSJ15..CHI |
81585-35020 |
US $17.65 |
||
|
81591C
|
81591C
81591-35020
Lens, Rear Lamp, Lh
[12.2007 - 02.2009] GSJ15..CHI |
81591-35020 |
— | ||
| replacement | |||||
|
81591C
|
81591C
81591-35021 Lens, Rear Lamp, Lh[12.2007 - 02.2009] GSJ15..CHI |
81591-35021 |
from US $90.17 |
||
|
81591C
|
81591C
81591-35021 Lens, Rear Lamp, Lh[02.2009 - 11.2010] GSJ15..CHI |
81591-35021 |
from US $90.17 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
