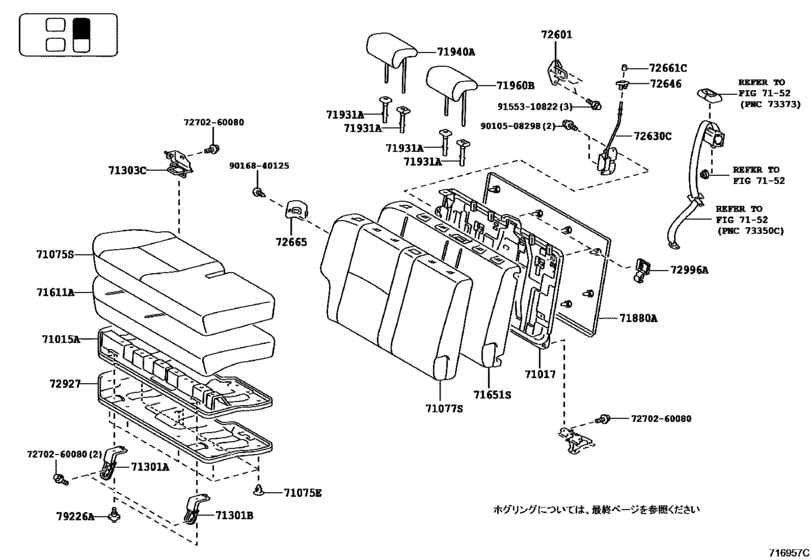

Seat & Seat Track ([07.2007 - ] REAR SEAT (RH) (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015A
|
71015A
71015-35090 Frame Sub-Assy, Rear Seat Cushion, RhREAR SEAT CUSHION, RH [07.2007 - 11.2010] GSJ15 |
71015-35090 |
US $125.22 |
||
|
71017
|
71017
71017-35220 Frame Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, RH [07.2007 - 11.2010] GSJ15 |
71017-35220 |
US $246.06 |
||
|
71075E
|
71075E
71769-60010-B6 Clip(For Rear Seat)[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71769-60010-B6 |
US $2.91 |
||
|
71075S
|
71075S
71075-35A33-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71075-35A33-B1 |
US $361.09 |
||
|
71075S
|
71075S
71075-35A33-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[11.2010 - 07.2013] GSJ15 DK.GRAY,TRIM1# |
71075-35A33-B3 |
US $299.94 |
||
| replacement | |||||
|
71075S
|
71075S
71075-35A34-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[11.2010 - 07.2013] GSJ15 DK.GRAY,TRIM1# |
71075-35A34-B3 |
US $272.27 |
||
|
71075S
|
71075S
71075-35A34-B3 Cover, Rear Seat Cushion, Rh (For Separate Type)[08.2013 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
71075-35A34-B3 |
US $272.27 |
||
|
71077S
|
71077S
71077-35A43-B1
Cover, Rear Seat Back, Rh (For Separate Type)
[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71077-35A43-B1 |
— | ||
|
71077S
|
71077S
71077-35A43-B2 Cover, Rear Seat Back, Rh (For Separate Type)[11.2010 - 07.2013] GSJ15 DK.GRAY,TRIM1# |
71077-35A43-B2 |
US $364 |
||
| replacement | |||||
|
71077S
|
71077S
71077-35A44-B2 Cover, Rear Seat Back, Rh (For Separate Type)[11.2010 - 07.2013] GSJ15 DK.GRAY,TRIM1# |
71077-35A44-B2 |
US $330.51 |
||
|
71077S
|
71077S
71077-35A44-B2 Cover, Rear Seat Back, Rh (For Separate Type)[08.2013 -] GSJ15..CHI,GCC,GEN,SA DK.GRAY,TRIM1# |
71077-35A44-B2 |
US $330.51 |
||
|
71301A
|
71301A
71301-35080 Hinge Sub-Assy, Rear Seat CushionREAR SEAT CUSHION [07.2007 - 11.2010] GSJ15 |
71301-35080 |
US $23.73 |
||
|
71301B
|
71301B
71301-35090 Hinge Sub-Assy, Rear No.1 Seat, RhREAR NO.1 SEAT, RH [07.2007 - 11.2010] GSJ15 |
71301-35090 |
US $22.13 |
||
|
71303C
|
71303C
71303-35030 Hinge Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, RH [07.2007 - 11.2010] GSJ15 |
71303-35030 |
US $27.78 |
||
|
71611A
|
71611A
71611-35090 Pad, Rear Seat Cushion, RhREAR SEAT CUSHION, RH [07.2007 - 11.2010] GSJ15 |
71611-35090 |
US $164.53 |
||
|
71651S
|
71651S
71651-35080 Pad, Rear Seat Back, Rh(For Separate Type)REAR SEAT BACK, RH(FOR SEPARATE TYPE) [07.2007 - 11.2010] GSJ15 |
71651-35080 |
US $164.53 |
||
|
71880A
|
71880A
71880-35020-B0
Carpet Assy, Rear Seat Back Board, Rh
[07.2007 - 09.2010] GSJ15 DK.GRAY,TRIM1# |
71880-35020-B0 |
— | ||
| replacement | |||||
|
71880A
|
71880A
71880-35021-B0 Carpet Assy, Rear Seat Back Board, Rh[07.2007 - 09.2010] GSJ15 DK.GRAY,TRIM1# |
71880-35021-B0 |
US $139.78 |
||
|
71880A
|
71880A
71880-35021-B0 Carpet Assy, Rear Seat Back Board, Rh[10.2010 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71880-35021-B0 |
US $139.78 |
||
|
71931A
|
71931A
71930-52030-B0 Support Assy, Front Seat Headrest[07.2007 - 11.2010] GSJ15 W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
71930-52030-B0 |
from US $10.36 |
||
|
71931A
|
71931A
71931-42020-B4 Support Assy, Front Seat Headrest[07.2007 - 11.2010] GSJ15 W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
71931-42020-B4 |
US $8.60 |
||
|
71940A
|
71940A
71940-35480-B0 Headrest Assy, Rear SeatREAR SEAT [07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71940-35480-B0 |
US $157.25 |
||
|
71940A
|
71940A
71940-35481-B1 Headrest Assy, Rear Seat[11.2010 - 08.2013] GSJ15 DK.GRAY,TRIM1# |
71940-35481-B1 |
US $131.04 |
||
|
71940A
|
71940A
71940-35650-B0 Headrest Assy, Rear Seat[12.2014 - 12.2015] GSJ15..CHI DK.GRAY,TRIM1# |
71940-35650-B0 |
US $225.60 |
||
|
71960B
|
71960B
71960-35040-B0
Headrest Assy, Rear Seat, Center
[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
71960-35040-B0 |
— | ||
|
71960B
|
71960B
71960-35041-B1
Headrest Assy, Rear Seat, Center
[11.2010 - 08.2013] GSJ15 DK.GRAY,TRIM1# |
71960-35041-B1 |
— | ||
| replacement | |||||
|
71960B
|
71960B
71960-35220-B0 Headrest Assy, Rear Seat, Center[11.2010 - 08.2013] GSJ15 DK.GRAY,TRIM1# |
71960-35220-B0 |
US $241.11 |
||
|
71960B
|
71960B
71960-35220-B0 Headrest Assy, Rear Seat, Center[12.2014 - 12.2015] GSJ15..CHI DK.GRAY,TRIM1# |
71960-35220-B0 |
US $241.11 |
||
|
72601
|
72601
72601-35021 Striker Sub-Assy, Rear Seat Lock[07.2007 - 09.2010] GSJ15 |
72601-35021 |
US $29.41 |
||
| replacement | |||||
|
72601
|
72601
72601-35022 Striker Sub-Assy, Rear Seat Lock[07.2007 - 09.2010] GSJ15 |
72601-35022 |
US $22.13 |
||
|
72601
|
72601
72601-35022 Striker Sub-Assy, Rear Seat Lock[10.2010 - 11.2010] GSJ15 |
72601-35022 |
US $22.13 |
||
|
72630C
|
72630C
72630-35051 Lock Assy, Rear Seat Back, Rh[09.2007 - 11.2010] GSJ15 |
72630-35051 |
US $53.87 |
||
| replacement | |||||
|
72630C
|
72630C
72630-35052 Lock Assy, Rear Seat Back, Rh[09.2007 - 11.2010] GSJ15 |
72630-35052 |
US $40.77 |
||
|
72630C
|
72630C
72630-35052 Lock Assy, Rear Seat Back, Rh[09.2012 -] GSJ15..CHI,GCC,GEN,SA |
72630-35052 |
US $40.77 |
||
|
72646
|
72646
72646-33020-B6 Grommet, Rear Seat Back Stop Button[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
72646-33020-B6 |
US $13.45 |
||
|
72661C
|
72661C
72661-35010-B1 Button, Rear Seat Back Lock Release[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
72661-35010-B1 |
from US $4.56 |
||
|
72665
|
72665
72665-35020-B1 Cover, Rear Seat Back Lock, Rh[07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
72665-35020-B1 |
US $11.94 |
||
|
72927
|
72927
72927-35070-B0 Cover, Rear Seat Cushion Under, RhREAR SEAT CUSHION UNDER, RH [12.2007 - 11.2010] GSJ15..CHI DK.GRAY,TRIM1# |
72927-35070-B0 |
US $18.49 |
||
|
72996A
|
72996A
72996-35041-B1 Cover, Rear Seat Back[09.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
72996-35041-B1 |
US $7.69 |
||
|
79226A
|
79226A
79226-35010 Stopper, Rear No.1 Seat CushionREAR NO.1 SEAT CUSHION [07.2007 - 11.2010] GSJ15 |
79226-35010 |
US $6.70 |
||
|
7270260080
|
7270260080
72702-60080 Bracket Sub-assy, Rear Seat Back Striker |
72702-60080 |
US $2.04 |
||
|
9010508298
|
9010508298
90105-08298 New Genuine Part |
90105-08298 |
US $0.87 |
||
|
9016840125
|
9016840125
90168-40125 SCREW TAPPING |
90168-40125 |
US $1.08 |
||
|
9155310822
|
9155310822
91553-10822 New Genuine Part |
91553-10822 |
US $1.46 |
||
