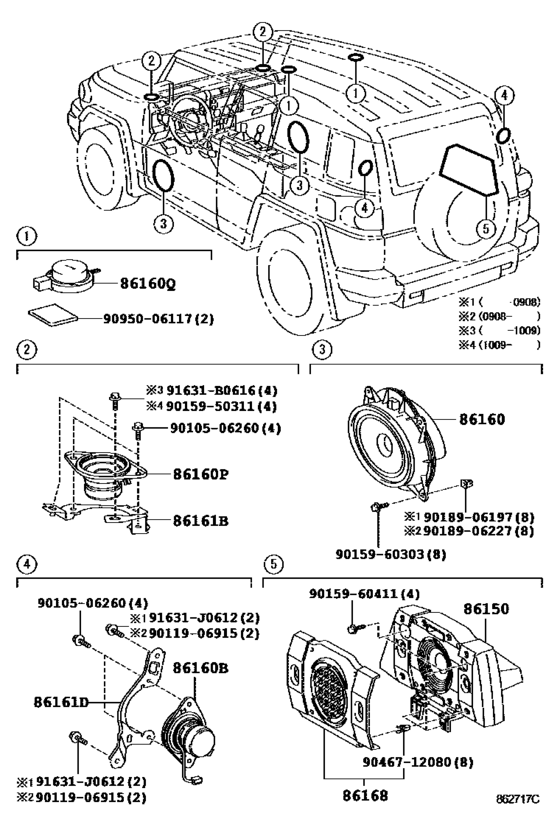

Speaker ([07.2007 - 11.2010] (0707-1011)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-0W160 Speaker Assy, W/box, No.1[11.2010 - 12.2015] GSJ15..CHI |
86150-0W160 |
US $1,688.96 |
||
|
86150
|
86150
86150-35100 Speaker Assy, W/box, No.1W/BOX, NO.1 [12.2007 - 11.2010] GSJ15..CHI AUDIO-AM/FM CD CHANGER, 9SPEAKER |
86150-35100 |
US $1,185.18 |
||
|
86160
|
86160
86160-04130
Speaker Assy, Front No.1
[11.2010 - 12.2015] GSJ15..CHI |
86160-04130 |
— | ||
|
86160
|
86160
86160-22A00 Speaker Assy, Front No.1[07.2007 - 11.2010] GSJ15 |
86160-22A00 |
from US $96.03 |
||
|
86160B
|
86160B
86160-0WV30
Speaker Assy, Rear
[11.2010 - 12.2015] GSJ15..CHI RH |
86160-0WV30 |
— | ||
|
86160B
|
86160B
86160-0WV40
Speaker Assy, Rear
[11.2010 - 12.2015] GSJ15..CHI LH |
86160-0WV40 |
— | ||
|
86160B
|
86160B
86160-35280 Speaker Assy, RearREAR [12.2007 - 11.2010] GSJ15..CHI RH |
86160-35280 |
from US $64.30 |
||
|
86160B
|
86160B
86160-35290 Speaker Assy, RearREAR [12.2007 - 11.2010] GSJ15..CHI LH |
86160-35290 |
US $85.90 |
||
|
86160P
|
86160P
86160-0WV10
Speaker Assy, Front No.2
[11.2010 - 12.2015] GSJ15..CHI RH |
86160-0WV10 |
— | ||
|
86160P
|
86160P
86160-0WV20 Speaker Assy, Front No.2[11.2010 - 12.2015] GSJ15..CHI LH |
86160-0WV20 |
US $92.64 |
||
|
86160P
|
86160P
86160-35270 Speaker Assy, Front No.2FRONT NO.2 [07.2007 - 11.2010] GSJ15 |
86160-35270 |
from US $73.09 |
||
|
86160Q
|
86160Q
86160-28660 Speaker Assy, Roof[07.2007 - 11.2010] GSJ15 |
86160-28660 |
from US $78.62 |
||
|
86161B
|
86161B
86161-35090 Bracket, Speaker, Front No.2SPEAKER, FRONT NO.2 [07.2007 - 11.2010] GSJ15 RH |
86161-35090 |
US $8.56 |
||
|
86161B
|
86161B
86161-35100 Bracket, Speaker, Front No.2SPEAKER, FRONT NO.2 [07.2007 - 11.2010] GSJ15 LH |
86161-35100 |
US $8.56 |
||
|
86161D
|
86161D
86161-35110 Bracket, Speaker Mounting, No.1SPEAKER MOUNTING, NO.1 [12.2007 - 11.2010] GSJ15..CHI RH |
86161-35110 |
US $7.16 |
||
|
86161D
|
86161D
86161-35120 Bracket, Speaker Mounting, No.1SPEAKER MOUNTING, NO.1 [12.2007 - 11.2010] GSJ15..CHI LH |
86161-35120 |
US $6.29 |
||
|
86168
|
86168
86168-0W010
Cover, Speaker Mounting
[11.2010 - 12.2015] GSJ15..CHI |
86168-0W010 |
— | ||
|
86168
|
86168
86168-35020 Cover, Speaker MountingSPEAKER MOUNTING [12.2007 - 11.2010] GSJ15..CHI AUDIO-AM/FM CD CHANGER, 9SPEAKER |
86168-35020 |
US $209.66 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960411
|
9015960411
90159-60411 SCREW WWASHER |
90159-60411 |
from US $0.89 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.72 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.74 |
||
|
9095006117
|
9095006117
90950-06117 Plug (For Roll Over Garnish) |
90950-06117 |
US $4.48 |
