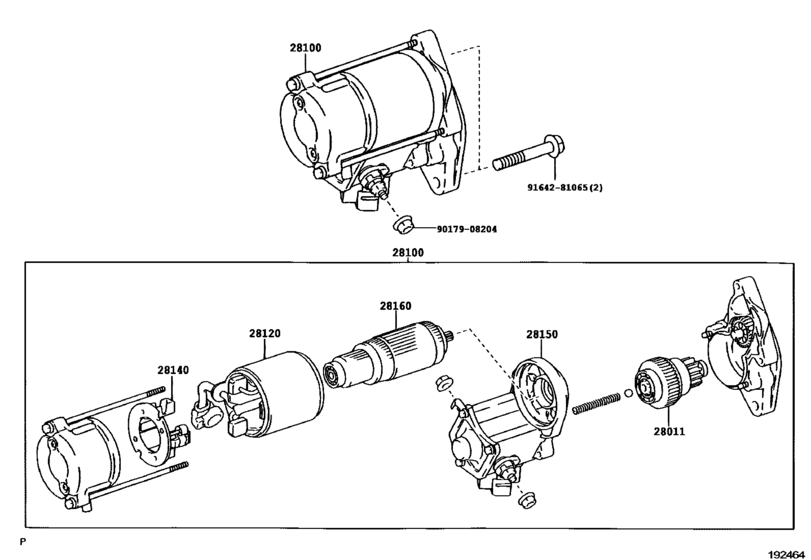

Starter ([07.2007 - 08.2009] 12V 2.0KW (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-66020 Clutch Sub-Assy, Starter[08.2009 - 11.2010] 1GRFE..GSJ15 |
28011-66020 |
from US $110.20 |
||
|
28011
|
28011
28011-66060 Clutch Sub-Assy, Starter[07.2007 - 08.2009] 1GRFE..GSJ15 |
28011-66060 |
from US $164.60 |
||
|
28100
|
28100
28100-31050 Starter Assy[07.2007 - 08.2009] 1GRFE..GSJ15 12V 2.0KW |
28100-31050 |
from US $747.23 |
||
|
28100
|
28100
28100-31131 Starter Assy[08.2009 - 11.2010] 1GRFE..GSJ15 12V 1.4KW |
28100-31131 |
from US $463.62 |
||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[07.2007 - 08.2009] 1GRFE..GSJ15 |
28120-54380 |
US $177.73 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[08.2009 - 11.2010] 1GRFE..GSJ15 |
28120-66040 |
— | ||
|
28140
|
28140
28140-35060 Holder Assy, Starter Brush[08.2009 - 11.2010] 1GRFE..GSJ15 |
28140-35060 |
US $16.89 |
||
|
28140
|
28140
28140-62030 Holder Assy, Starter Brush[07.2007 - 08.2009] 1GRFE..GSJ15 |
28140-62030 |
US $16.17 |
||
|
28150
|
28150
28150-31051 Switch Assy, Magnet Starter[07.2007 - 08.2009] 1GRFE..GSJ15 |
28150-31051 |
US $235.87 |
||
|
28150
|
28150
28150-31130 Switch Assy, Magnet StarterMAGNET STARTER [08.2009 - 11.2010] 1GRFE..GSJ15 |
28150-31130 |
from US $113.53 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[08.2009 - 11.2010] 1GRFE..GSJ15 |
28160-74070 |
— | ||
|
28160
|
28160
28160-75120 Armature Assy, Starter[07.2007 - 08.2009] 1GRFE..GSJ15 |
28160-75120 |
US $248.98 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9164281065
|
9164281065
91642-81065 Bolt(For Alternator) |
91642-81065 |
from US $1.25 |
||
