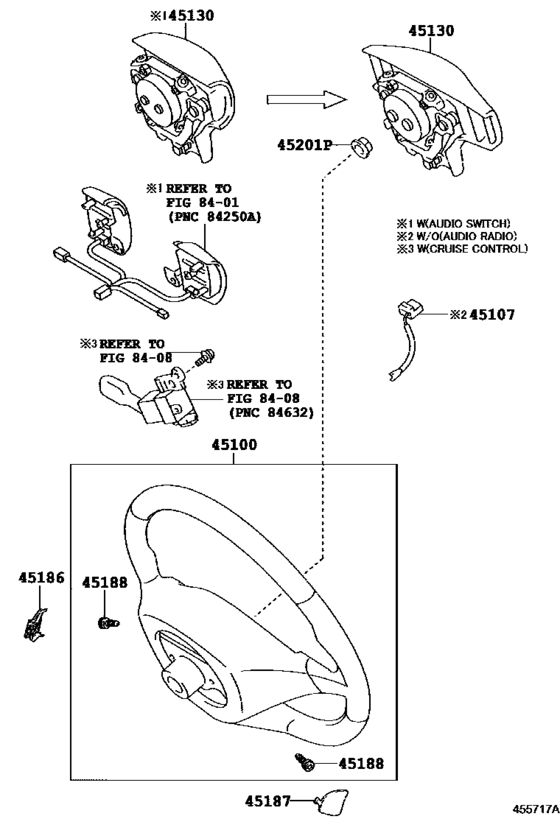

Steering Wheel ([11.2010 - ] 3-SPOKE (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-35470-B0 Wheel Assy, SteeringSTEERING [12.2007 - 06.2010] GSJ15..CHI 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
45100-35470-B0 |
US $714.90 |
||
| replacement | |||||
|
45100
|
45100
45100-35471-B2 Wheel Assy, Steering[12.2007 - 06.2010] GSJ15..CHI 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
45100-35471-B2 |
US $540.18 |
||
|
45100
|
45100
45100-35471-B0 Wheel Assy, Steering[07.2010 - 11.2010] GSJ15..CHI 3-SPOKE,LEATHER,DK.GRAY,TRIM1#; GSJ15..GEN 3-SPOKE,LEATHER,IMAGE PACKAGE-WITH,DK.GRAY,TRIM1#; GSJ15..GCC 3-SPOKE,LEATHER,IMAGE PACKAGE-WITH&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SP EAKER,DK.GRAY,TRIM1#; GSJ15..GCC 3-S |
45100-35471-B0 |
US $714.90 |
||
| replacement | |||||
|
45100
|
45100
45100-35471-B2 Wheel Assy, Steering[07.2010 - 11.2010] GSJ15..CHI 3-SPOKE,LEATHER,DK.GRAY,TRIM1#; GSJ15..GEN 3-SPOKE,LEATHER,IMAGE PACKAGE-WITH,DK.GRAY,TRIM1#; GSJ15..GCC 3-SPOKE,LEATHER,IMAGE PACKAGE-WITH&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SP EAKER,DK.GRAY,TRIM1#; GSJ15..GCC 3-S |
45100-35471-B2 |
US $540.18 |
||
|
45100
|
45100
45100-35471-B2 Wheel Assy, Steering[12.2011 -] GSJ15..CHI,SA 3-SPOKE,LEATHER,DK.GRAY,TRIM1#; GSJ15..GEN;GSJ15..ATM..GCC 3-SPOKE,LEATHER,IMAGE PACKAGE,DK.GRAY,TRIM1# |
45100-35471-B2 |
US $540.18 |
||
|
45130
|
45130
45130-35451-B0 Button Assy, Horn (Cannot supply)[12.2007 - 11.2010] GSJ15..CHI DK.GRAY,TRIM1# |
45130-35451-B0 |
US $700.63 |
||
|
45186
|
45186
45186-35020-B0 Cover, Steering Wheel, Lower No.2STEERING WHEEL, LOWER NO.2 [07.2007 - 11.2010] GSJ15..CHI,GEN DK.GRAY,TRIM1#; GSJ15..GCC IMAGE PACKAGE-WITH&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 9SPEAKER,DK.GRAY,TR IM1#; GSJ15..GCC IMAGE PACKAGE-WITH&CONVENIENCE PACKAGE&AUDIO-AM/FM CD CHANGER, 8SPERAKER,DK.GRAY,T RIM1#; GSJ |
45186-35020-B0 |
from US $1.22 |
||
|
45187
|
45187
45187-35020-B0 Cover, Steering Wheel, Lower No.3STEERING WHEEL, LOWER NO.3 [07.2007 - 11.2010] GSJ15 DK.GRAY,TRIM1# |
45187-35020-B0 |
US $3.32 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[07.2007 - 11.2010] GSJ15 L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[07.2007 - 11.2010] GSJ15 |
90179-12071 |
from US $1.48 |
||
