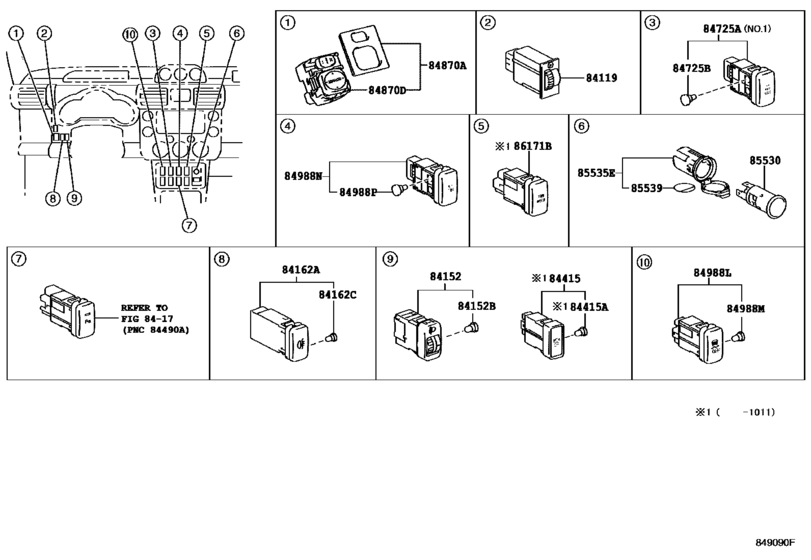

Switch & Relay & Computer ([07.2007 - ] INSTRUMENT PANEL 1/2 (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-35030 Switch, Headlamp Leveling[12.2007 - 11.2010] GSJ15..CHI |
84152-35030 |
US $48.92 |
||
|
84152B
|
84152B
90010-08111 Bulb (For Headlamp Leveling Switch)[12.2007 - 11.2010] GSJ15..CHI 14V 40MA |
90010-08111 |
US $6.60 |
||
|
84162A
|
84162A
84165-35010 Switch, Rear Fog Lamp[12.2007 - 11.2010] GSJ15..CHI |
84165-35010 |
US $38.61 |
||
|
84162C
|
84162C
90010-01083 Bulb (For Rear Fog Lamp Switch)[12.2007 - 11.2010] GSJ15..CHI 14V 0.91W,W(CAP) |
90010-01083 |
from US $3.44 |
||
|
84725A
|
84725A
84725-35070 Switch, Differential LockDIFFERENTIAL LOCK [07.2007 - 11.2010] GSJ15 DIFFERENTIAL LOCK-WITH,NO.1 |
84725-35070 |
US $44.93 |
||
|
84725A
|
84725A
84725-35090 Switch, Differential Lock[08.2012 - 02.2015] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ARL OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL) |
84725-35090 |
US $39.60 |
||
| replacement | |||||
|
84725A
|
84725A
84725-35091 Switch, Differential Lock[08.2012 - 02.2015] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ARL OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL) |
84725-35091 |
US $34.94 |
||
|
84725A
|
84725A
84725-35091 Switch, Differential Lock[03.2015 -] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2 |
84725-35091 |
US $34.94 |
||
|
84725B
|
84725B
90010-01083 Bulb (For Rear Fog Lamp Switch)[07.2007 - 11.2010] GSJ15 14V 0.91W,W(CAP),DIFFERENTIAL LOCK-WITH |
90010-01083 |
from US $3.44 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[07.2007 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC IMAGE PACKAGE-WITH; GSJ15..GCC IMAGE PACKAGE-FOR GCC |
84870-34010 |
from US $63.17 |
||
|
84870D
|
84870D
84872-52030 Switch Assy, Outer Mirror[07.2007 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC IMAGE PACKAGE-WITH; GSJ15..GCC IMAGE PACKAGE-FOR GCC |
84872-52030 |
US $53.29 |
||
|
84988L
|
84988L
84988-35070 Switch, Vsc OffVSC OFF [08.2009 - 11.2010] GSJ15..CHI |
84988-35070 |
from US $46.80 |
||
|
84988M
|
84988M
90010-01083 Bulb (For Rear Fog Lamp Switch)[08.2009 - 11.2010] GSJ15..CHI 14V 0.91W,W(CAP) |
90010-01083 |
from US $3.44 |
||
|
84988N
|
84988N
84988-35060 Switch, Traction Control, No.2TRACTION CONTROL, NO.2 [07.2007 - 08.2009] GSJ15..CHI VSC-WITH(A-TRAC) |
84988-35060 |
from US $44.76 |
||
|
84988P
|
84988P
90010-01083 Bulb (For Rear Fog Lamp Switch)[07.2007 - 08.2009] GSJ15..CHI VSC-WITH(A-TRAC) |
90010-01083 |
from US $3.44 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[07.2007 - 11.2010] GSJ15 |
85530-33020 |
from US $14.90 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[07.2007 - 11.2010] GSJ15 |
85530-06010 |
from US $26.06 |
||
|
85535E
|
85535E
85535-60140-B2
Cover, Power Outlet Socket, No.2
[12.2007 - 11.2010] GSJ15..CHI DK.GRAY,TRIM1# |
85535-60140-B2 |
— | ||
|
85539
|
85539
85539-48030
Label, Power Outlet Notice
[12.2007 - 11.2010] GSJ15..CHI |
85539-48030 |
— | ||
|
86171B
|
86171B
86171-35010 Switch, Woofer SpeakerWOOFER SPEAKER [12.2007 - 11.2010] GSJ15..CHI AUDIO-AM/FM CD CHANGER, 9SPEAKER |
86171-35010 |
US $61.99 |
||
