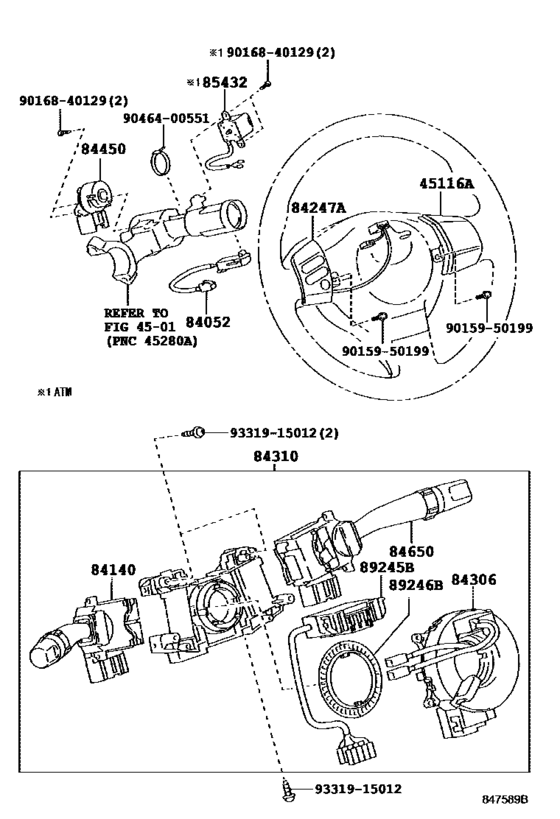

Switch & Relay & Computer ([07.2007 - 11.2010] STEERING (0707-1011)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45116A
|
45116A
45116-35010 Ornament, Steering Wheel, No.1STEERING WHEEL, NO.1 [12.2007 - 11.2010] GSJ15..CHI |
45116-35010 |
US $14.12 |
||
|
84052
|
84052
84052-35030
Switch Assy, Un-Lock Warning
[07.2007 - 11.2010] GSJ15 |
84052-35030 |
— | ||
|
84140
|
84140
84140-10190 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [07.2007 - 11.2010] GSJ15 |
84140-10190 |
from US $52.31 |
||
|
84140
|
84140
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.2013 - 12.2015] GSJ15..CHI |
84140-26140 |
from US $50.39 |
||
|
84247A
|
84247A
84247-35030 Switch, Steering Pad, LhSTEERING PAD, LH [12.2007 - 11.2010] GSJ15..CHI |
84247-35030 |
US $110.66 |
||
|
84306
|
84306
84306-60100
Cable Sub-Assy, Spiral
[12.2007 - 11.2010] GSJ15..CHI |
84306-60100 |
— | ||
|
84310
|
84310
84310-35B40
Switch Assy, Turn Signal
[12.2007 - 11.2010] GSJ15..CHI |
84310-35B40 |
— | ||
|
84310
|
84310
84310-35C30
Switch Assy, Turn Signal
[05.2013 - 12.2015] GSJ15..CHI |
84310-35C30 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[07.2007 - 11.2010] GSJ15 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-35590
Switch Assy, Windshield Wiper
[12.2007 - 11.2010] GSJ15..CHI |
84652-35590 |
— | ||
|
84650
|
84650
84652-35610
Switch Assy, Windshield Wiper
[05.2013 - 12.2015] GSJ15..CHI |
84652-35610 |
— | ||
|
85432
|
85432
85432-35030 Solenoid, Key Inter LockKEY INTER LOCK [07.2007 - 11.2010] GSJ15..ATM |
85432-35030 |
US $40.33 |
||
|
89245B
|
89245B
89245-33020 Sensor, Steering[03.2013 -] GSJ15..CHI,GCC,GEN,SA |
89245-33020 |
from US $190.44 |
||
|
89245B
|
89245B
89245-35020 Sensor, SteeringSTEERING [07.2007 - 11.2010] GSJ15 |
89245-35020 |
from US $292.13 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[03.2013 -] GSJ15..CHI,GCC,GEN,SA |
89246-22020 |
from US $78.64 |
||
|
89246B
|
89246B
89246-34010 Disc, Sensor SteeringSENSOR STEERING [07.2007 - 11.2010] GSJ15 |
89246-34010 |
US $96.10 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
