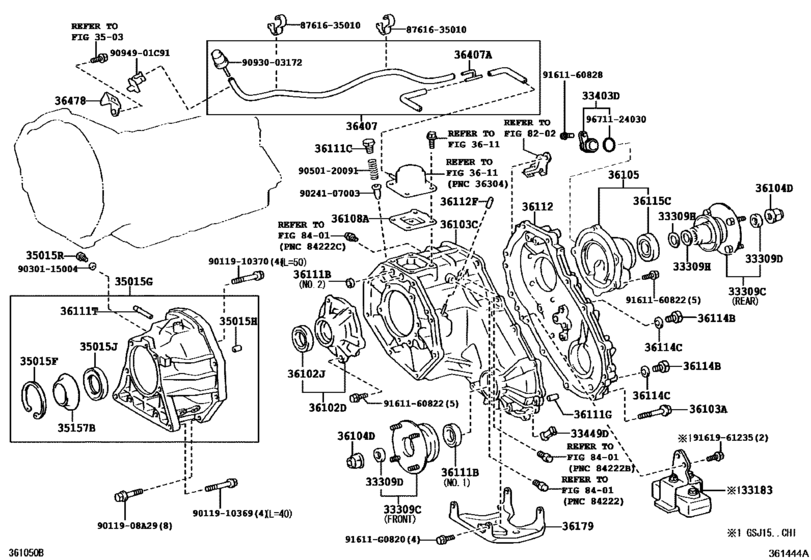

Transfer Case & Extension Housing ([07.2007 - 08.2009] (0707-0908)ATM) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33183
|
33183
33183-35060 Damper, Transfer Dynamic[12.2007 - 08.2009] GSJ15..CHI |
33183-35060 |
US $286.54 |
||
|
33309C
|
33309C
33309-35110
Flange Sub-Assy, Output Shaft Companion
[07.2007 - 07.2008] GSJ15 FRONT |
33309-35110 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[07.2007 - 07.2008] GSJ15 FRONT |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[07.2007 - 07.2008] GSJ15 FRONT |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
90311-41013 Seal, Oil (For Transfer Case)[07.2007 - 07.2008] GSJ15 FRONT |
90311-41013 |
from US $7.17 |
||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[07.2007 - 07.2008] GSJ15 FRONT |
90311-41017 |
from US $7.17 |
||
|
33309C
|
33309C
33309-35111
Flange Sub-Assy, Output Shaft Companion
[07.2008 - 11.2010] GSJ15 FRONT |
33309-35111 |
— | ||
| replacements | |||||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[07.2008 - 11.2010] GSJ15 FRONT |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[07.2008 - 11.2010] GSJ15 FRONT |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
90311-41017 Seal, Oil (For Transfer Case)[07.2008 - 11.2010] GSJ15 FRONT |
90311-41017 |
from US $7.17 |
||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[07.2008 - 11.2010] GSJ15 FRONT |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
33309-35112
Flange Sub-Assy, Output Shaft Companion
[11.2014 -] GSJ15..CHI,GCC,GEN,SA FRONT,PNC36111B=T/PB |
33309-35112 |
— | ||
| replacement | |||||
|
33309C
|
33309C
33309-35113 Flange Sub Assembly Out[11.2014 -] GSJ15..CHI,GCC,GEN,SA FRONT,PNC36111B=T/PB |
33309-35113 |
from US $90.20 |
||
|
33309C
|
33309C
33309-35120 Flange Sub-Assy, Output Shaft Companion[07.2007 - 11.2010] GSJ15 REAR |
33309-35120 |
from US $100.04 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[07.2007 - 11.2010] GSJ15 |
90312-23001 |
from US $2.15 |
||
|
33309H
|
33309H
36275-35010 Washer, Transfer Output Shaft[07.2007 - 11.2010] GSJ15..ATM N=30,OD=38 |
36275-35010 |
US $0.44 |
||
|
33403D
|
33403D
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[07.2007 - 11.2010] GSJ15..ATM |
33403-35230 |
from US $19.82 |
||
|
33449D
|
33449D
33449-32020 Magnet, Transmission[07.2007 - 11.2010] GSJ15 |
33449-32020 |
US $11.65 |
||
|
35015F
|
35015F
90521-72001 Ring, Hole Snap(For Transfer Adapter)[07.2007 - 11.2010] GSJ15..ATM |
90521-72001 |
US $0.96 |
||
|
35015G
|
35015G
35015-0C010
Adapter, Transfer, Rear
[08.2009 - 11.2010] GSJ15..CHI (L) |
35015-0C010 |
— | ||
|
35015G
|
35015G
35015-35120 Adapter, Transfer, Rear[07.2007 - 11.2008] GSJ15..CHI (J) |
35015-35120 |
US $227.14 |
||
|
35015H
|
35015H
90250-11003 Pin, Ring(For Transfer Case)[07.2007 - 11.2010] GSJ15..ATM |
90250-11003 |
US $1.10 |
||
|
35015J
|
35015J
90311-43007 Seal, Oil(For Transfer Case Adapter Rear)[07.2007 - 11.2010] GSJ15..ATM |
90311-43007 |
from US $5.20 |
||
|
35015R
|
35015R
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[07.2007 - 11.2010] GSJ15..ATM |
90341-18059 |
from US $3.33 |
||
|
35157B
|
35157B
35157-60010 Receiver, Transfer Case Rear Adapter Oil[07.2007 - 11.2010] GSJ15..ATM |
35157-60010 |
US $11.53 |
||
|
36102D
|
36102D
36102-35060 Retainer Sub-Assy, Transfer Rh Bearing[07.2007 - 11.2010] GSJ15..ATM |
36102-35060 |
from US $38.64 |
||
|
36102J
|
36102J
90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[07.2007 - 11.2010] GSJ15..MTM NO.2; GSJ15..ATM |
90311-43008 |
from US $7.17 |
||
|
36103A
|
36103A
90119-08A28 Bolt (For Transfer Case)[07.2007 - 11.2010] GSJ15 *8-1.25PX55-30 |
90119-08A28 |
US $1.51 |
||
|
36103C
|
36103C
36103-60340 Case, Transfer, FrontTRANSFER, FRONT [07.2007 - 12.2009] GSJ15..ATM |
36103-60340 |
US $930.38 |
||
| replacement | |||||
|
36103C
|
36103C
36111-60261 Case, Transfer, FrontTRANSFER, FRONT [07.2007 - 12.2009] GSJ15..ATM |
36111-60261 |
US $361.67 |
||
|
36103C
|
36103C
36111-60261 Case, Transfer, FrontTRANSFER, FRONT [12.2009 - 11.2010] GSJ15..ATM |
36111-60261 |
US $361.67 |
||
|
36104D
|
36104D
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[07.2007 - 11.2010] GSJ15 |
90179-22016 |
from US $2.34 |
||
|
36105
|
36105
36105-35040 Housing Sub-Assy, Transfer Extension, Front[07.2007 - 11.2010] GSJ15..ATM |
36105-35040 |
US $76.35 |
||
|
36108A
|
36108A
36108-35060 Deflector Sub-Assy, Breather Oil[07.2007 - 11.2010] GSJ15..ATM |
36108-35060 |
from US $5.59 |
||
|
36111B
|
36111B
90311-15008 Seal, Oil (For Transfer Case)[07.2007 - 11.2010] GSJ15 NO.2 |
90311-15008 |
from US $3.76 |
||
|
36111B
|
36111B
90311-41012 Seal, Oil (For Transfer Case)[07.2007 - 07.2008] GSJ15 NO.1 |
90311-41012 |
from US $7.17 |
||
|
36111B
|
36111B
90311-41013 Seal, Oil (For Transfer Case)[07.2008 - 11.2010] GSJ15 NO.1 |
90311-41013 |
from US $7.17 |
||
|
36111B
|
36111B
90311-41017 Seal, Oil (For Transfer Case)[11.2014 -] GSJ15..CHI,GCC,GEN,SA NO.1T/P B:REF.ILLUST |
90311-41017 |
from US $7.17 |
||
|
36111C
|
36111C
90341-14012 Plug (For Transfer Case)[07.2007 - 11.2010] GSJ15 |
90341-14012 |
US $3.40 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[07.2007 - 11.2010] GSJ15 L=14,OD=10 |
90250-10214 |
from US $1.35 |
||
|
36111T
|
36111T
90441-05001 Tube (For Transfer Case)[07.2007 - 11.2010] GSJ15 |
90441-05001 |
US $2.33 |
||
|
36112
|
36112
36112-35040 Case, Transfer, Rear[07.2007 - 11.2010] GSJ15..ATM |
36112-35040 |
from US $227.14 |
||
|
36112F
|
36112F
90339-04024 Cap, Transfer, Rear Case[07.2007 - 12.2009] GSJ15..ATM |
90339-04024 |
US $1.79 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[07.2007 - 11.2010] GSJ15 |
90341-18006 |
from US $3.23 |
||
|
36114C
|
36114C
90430-18008 Gasket[07.2007 - 11.2010] GSJ15 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2007 - 11.2010] GSJ15 |
90430-T0021 |
US $0.99 |
||
|
36115C
|
36115C
90311-41007
Seal, Oil (Transfer Extension Front Housing Sub-Assy)
[07.2007 - 11.2010] GSJ15 |
90311-41007 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)[07.2007 - 11.2010] GSJ15 |
90311-41020 |
from US $6.99 |
||
|
36179
|
36179
36179-35020
Protector, Transfer Case Lower
[07.2007 - 08.2009] GSJ15 |
36179-35020 |
— | ||
| replacement | |||||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [07.2007 - 08.2009] GSJ15 |
36179-60030 |
US $20.79 |
||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [08.2009 - 11.2010] GSJ15 |
36179-60030 |
US $20.79 |
||
|
36407
|
36407
36407-60120 Hose Sub-Assy, Transfer Breather[07.2007 - 08.2009] GSJ15..ATM |
36407-60120 |
US $28.25 |
||
|
36407
|
36407
36407-60230 Hose Sub-Assy, Transfer BreatherTRANSFER BREATHER [08.2009 - 11.2010] GSJ15..ATM |
36407-60230 |
US $36.25 |
||
|
36407A
|
36407A
90413-04008 Way, 3(For Transfer Breather Hose)[07.2007 - 08.2009] GSJ15 |
90413-04008 |
from US $6.46 |
||
|
36478
|
36478
36478-60010 Bracket, Transfer Breather[07.2007 - 08.2009] GSJ15 |
36478-60010 |
US $4.22 |
||
|
36478
|
36478
36478-60060 Bracket, Transfer BreatherTRANSFER BREATHER [08.2009 - 11.2010] GSJ15 |
36478-60060 |
US $6.99 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9011908A29
|
9011908A29
90119-08A29 Bolt(For Head To Camshaft Bearing Cap) |
90119-08A29 |
US $1.79 |
||
|
9094901C91
|
9094901C91
90949-01C91 Clamp, No.6(For Vacuum Hose) |
90949-01C91 |
US $1.89 |
||
|
8761635010
|
8761635010
87616-35010 Clamp, Cooling Unit Case |
87616-35010 |
from US $4.56 |
||
|
9011910369
|
9011910369
90119-10369 New Genuine Part |
90119-10369 |
US $1.60 |
||
|
9011910370
|
9011910370
90119-10370 New Genuine Part |
90119-10370 |
US $1.97 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.87 |
||
|
9030115004
|
9030115004
90301-15004 Ring, O(For Oil Cooler Tube Union) |
90301-15004 |
from US $1.52 |
||
|
9050120091
|
9050120091
90501-20091 Spring, Compression (For Transfer Case) |
90501-20091 |
US $0.96 |
||
|
9093003172
|
9093003172
90930-03172 PLUG BREATHER |
90930-03172 |
US $2.15 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9671124030
|
9671124030
96711-24030 Ring,o (For Speedometer Driven Hole Cover) |
96711-24030 |
from US $2.15 |
||
