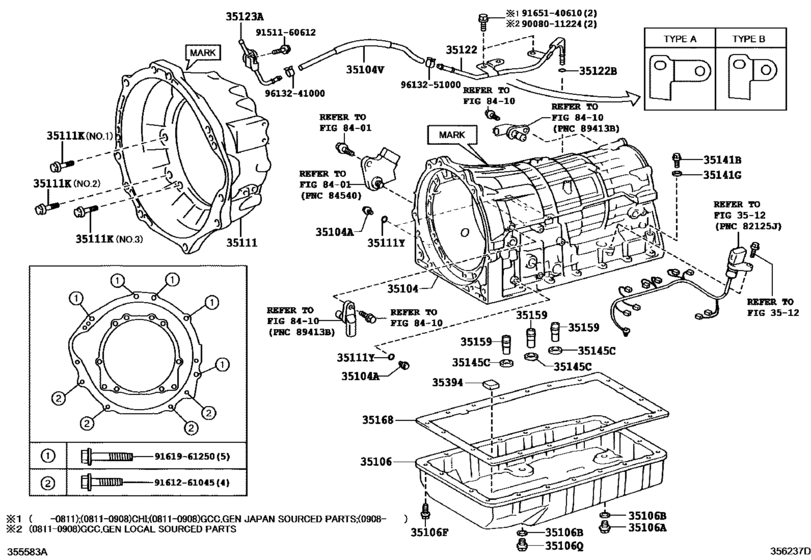

Transmission Case & Oil Pan (Atm) ([07.2007 - 08.2009] A750F (0707-0908)ATM) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35104
|
35104
35104-0C010 Case Sub-Assy, Automatic Transmission[08.2009 - 11.2010] GSJ15..CHI NO MARK |
35104-0C010 |
US $668.30 |
||
|
35104
|
35104
35104-35040 Case Sub-Assy, Automatic Transmission[11.2015 - 04.2016] GSJ15..ATM TYPE B:REFER 35-01 |
35104-35040 |
US $963.87 |
||
|
35104
|
35104
35104-60221 Case Sub-Assy, Automatic Transmission[07.2007 - 11.2008] GSJ15..CHI |
35104-60221 |
US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[07.2007 - 11.2008] GSJ15..CHI |
90341-08001 |
from US $1.48 |
||
|
35104A
|
35104A
90341-A0001 Plug, Automatic Transmission CaseAUTOMATIC TRANSMISSION CASE [08.2009 - 11.2010] GSJ15..CHI (L) |
90341-A0001 |
US $2.18 |
||
|
35104V
|
35104V
35121-35020 Hose (For Breather Plug)[08.2009 - 11.2010] GSJ15..ATM |
35121-35020 |
US $4.02 |
||
|
35104V
|
35104V
90447-11039 Hose (For Breather Plug)[07.2007 - 08.2009] GSJ15..ATM |
90447-11039 |
US $9.76 |
||
|
35106
|
35106
35106-0C010
Pan Sub-Assy, Automatic Transmission Oil
[08.2009 - 11.2010] GSJ15..CHI (L) |
35106-0C010 |
— | ||
|
35106
|
35106
35106-60180 Pan Sub-Assy, Automatic Transmission Oil[07.2007 - 11.2008] GSJ15..CHI |
35106-60180 |
from US $73.76 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[07.2007 - 11.2010] GSJ15..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[07.2007 - 08.2009] GSJ15..CHI |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[07.2007 - 11.2010] GSJ15..ATM |
90119-06173 |
from US $0.74 |
||
|
35106F
|
35106F
90119-A0298
Bolt (For Automatic Transmission Oil Pan)
[03.2014 - 11.2015] GSJ15..CHI (L) |
90119-A0298 |
— | ||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[07.2007 - 11.2010] GSJ15..ATM |
90341-10021 |
from US $2.01 |
||
|
35111
|
35111
35111-04010 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [08.2009 - 11.2010] GSJ15..ATM MARK UB |
35111-04010 |
US $330.51 |
||
|
35111
|
35111
35111-60150 Housing, Automatic Transmission[07.2007 - 11.2008] GSJ15..CHI |
35111-60150 |
US $299.94 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[07.2007 - 08.2009] GSJ15..ATM *10-1.5PX35-30,NO.1 |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[07.2007 - 11.2010] GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
90119-10947 |
from US $0.93 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[07.2007 - 11.2010] GSJ15..ATM *12-1.75PX38-30,NO.2 |
90119-12378 |
from US $1.48 |
||
|
35111K
|
35111K
90119-A0272 Bolt (For Transmission Housing & Case Setting)[08.2009 - 11.2010] GSJ15..CHI *10-1.5PX35-29.3,NO.1 |
90119-A0272 |
US $1.31 |
||
|
35111K
|
35111K
90119-A0404
Bolt (For Transmission Housing & Case Setting)
[03.2014 - 11.2015] GSJ15..ATM *10-1.5PX35-29.3,(L),NO.3 |
90119-A0404 |
— | ||
|
35111K
|
35111K
90119-A0405
Bolt (For Transmission Housing & Case Setting)
[03.2014 - 11.2015] GSJ15..ATM *12-1.75PX38-30,(L),NO.2 |
90119-A0405 |
— | ||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[07.2007 - 11.2010] GSJ15..ATM |
90301-06196 |
from US $2.36 |
||
|
35122
|
35122
35122-34010
Tube, Breather (For Automatic Transaxle)
[08.2009 - 11.2010] GSJ15..CHI TYPE A:REFER ILLUST. |
35122-34010 |
— | ||
|
35122
|
35122
35122-60020 Tube, Breather (For Automatic Transaxle)[07.2007 - 11.2008] GSJ15..CHI TYPE B:REFER ILLUST. |
35122-60020 |
US $27.66 |
||
|
35122B
|
35122B
90301-04014 O Ring, Transmission Breather[07.2007 - 11.2010] GSJ15..ATM |
90301-04014 |
US $1.22 |
||
|
35123A
|
35123A
35123-60090
Skirt, Transmission Breather
[07.2007 - 08.2009] GSJ15..ATM |
35123-60090 |
— | ||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[07.2007 - 11.2010] GSJ15..ATM |
90341-14011 |
from US $3.14 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[07.2007 - 11.2010] GSJ15..ATM |
90301-11030 |
from US $2.09 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[07.2007 - 11.2010] GSJ15..ATM |
35145-60020 |
from US $6.45 |
||
|
35159
|
35159
35159-0C010 Gasket, Brake Drum[08.2009 - 11.2010] GSJ15..CHI (L) |
35159-0C010 |
US $5.82 |
||
|
35159
|
35159
35159-60010 Gasket, Brake Drum[07.2007 - 11.2008] GSJ15..CHI |
35159-60010 |
from US $5.59 |
||
|
35168
|
35168
35168-60010 Gasket, Automatic Transmission Oil Pan[07.2007 - 11.2010] GSJ15..ATM |
35168-60010 |
from US $13.98 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[07.2007 - 11.2010] GSJ15..ATM |
35394-30011 |
from US $5.43 |
||
|
9008011224
|
9008011224
90080-11224 New Genuine Part |
90080-11224 |
US $1.16 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
