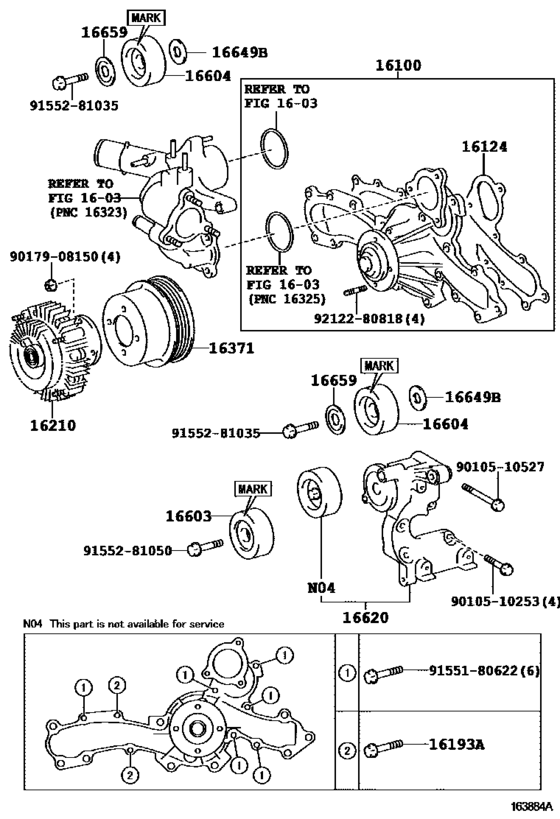

Water Pump ([03.2009 - 08.2009] (0903-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39405
Pump Assy, Engine Water
[07.2007 - 03.2009] 1GRFE..GSJ15 |
16100-39405 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-39406 Pump Assy, Engine WaterWATER [07.2007 - 03.2009] 1GRFE..GSJ15 |
16100-39406 |
from US $165.05 |
||
|
16100
|
16100
16100-39406 Pump Assy, Engine WaterWATER [03.2009 - 08.2009] 1GRFE..GSJ15 |
16100-39406 |
from US $165.05 |
||
|
16100
|
16100
16100-39545 Pump Assy, Engine WaterWATER [08.2009 - 11.2010] 1GRFE..GSJ15 |
16100-39545 |
from US $136.42 |
||
|
16124
|
16124
16124-31070 Gasket, Water Pump Cover[07.2007 - 08.2009] 1GRFE..GSJ15 |
16124-31070 |
from US $7.54 |
||
|
16193A
|
16193A
16193-31080 Bolt(For Water Pump Cover)[07.2007 - 08.2009] 1GRFE..GSJ15 |
16193-31080 |
US $3.76 |
||
|
16210
|
16210
16210-31020
Coupling Assy, Fluid
[07.2007 - 08.2009] 1GRFE..GSJ15 |
16210-31020 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-31021 Coupling Assy, Fluid[07.2007 - 08.2009] 1GRFE..GSJ15 |
16210-31021 |
from US $217.17 |
||
|
16210
|
16210
16210-31030
Coupling Assy, Fluid
[08.2009 - 03.2010] 1GRFE..GSJ15 |
16210-31030 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-31040 Coupling Assy, FluidFLUID [08.2009 - 03.2010] 1GRFE..GSJ15 |
16210-31040 |
from US $215.84 |
||
|
16210
|
16210
16210-31040 Coupling Assy, FluidFLUID [03.2010 - 11.2010] 1GRFE..GSJ15 |
16210-31040 |
from US $215.84 |
||
|
16371
|
16371
16371-31040 Pulley, Fan[07.2007 - 11.2010] 1GRFE..GSJ15 |
16371-31040 |
from US $37.97 |
||
|
16603
|
16603
16603-31040 Pulley Sub-Assy, Idler, No.1[07.2007 - 10.2008] 1GRFE..GSJ15 |
16603-31040 |
from US $45.16 |
||
|
16603
|
16603
16603-31050 Pulley Sub-Assy, Idler, No.1[10.2008 - 11.2010] 1GRFE..GSJ15 |
16603-31050 |
from US $45.22 |
||
|
16604
|
16604
16604-31010 Pulley Sub-Assy, Idler, No.2[11.2007 - 08.2009] 1GRFE..GSJ15 MARK=PU107013ARMXY1 |
16604-31010 |
from US $40.47 |
||
|
16604
|
16604
16604-31020 Pulley Sub-Assy, Idler, No.2[11.2007 - 11.2010] 1GRFE..GSJ15 MARK=PU107013ARMXY3 |
16604-31020 |
from US $40.20 |
||
|
16604
|
16604
16604-31030 Pulley Sub-Assy, Idler, No.2[05.2011 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA MARK=PU107016RMXY |
16604-31030 |
from US $39.90 |
||
|
16620
|
16620
16620-31012
Tensioner Assy, V-Ribbed Belt
[07.2007 - 08.2009] 1GRFE..GSJ15 |
16620-31012 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-31013 Tensioner Assy, V-Ribbed Belt[07.2007 - 08.2009] 1GRFE..GSJ15 |
16620-31013 |
from US $84.47 |
||
|
16620
|
16620
16620-31050 Tensioner Assy, V-Ribbed BeltV-RIBBED BELT [08.2009 - 02.2010] 1GRFE..GSJ15 |
16620-31050 |
US $269.36 |
||
| replacement | |||||
|
16620
|
16620
16620-31051 Tensioner Assy, V-Ribbed Belt[08.2009 - 02.2010] 1GRFE..GSJ15 |
16620-31051 |
from US $164.10 |
||
|
16620
|
16620
16620-31051 Tensioner Assy, V-Ribbed Belt[02.2010 - 11.2010] 1GRFE..GSJ15 |
16620-31051 |
from US $164.10 |
||
|
16649B
|
16649B
16649-31020 Plate, Idler Pulley Cover[11.2007 - 11.2010] 1GRFE..GSJ15 |
16649-31020 |
from US $1.75 |
||
|
16659
|
16659
16659-31011 Plate, Idler Pulley Cover, No.2[07.2007 - 11.2010] 1GRFE..GSJ15 |
16659-31011 |
from US $1.79 |
||
|
9010510253
|
9010510253
90105-10253 BOLT |
90105-10253 |
from US $1.31 |
||
|
9010510527
|
9010510527
90105-10527 BOLTSHOULDER |
90105-10527 |
US $1.22 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.97 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.12 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.08 |
||
|
9212280818
|
9212280818
92122-80818 Bolt, Stud(For Water Pump Pulley Seat) |
92122-80818 |
US $1.61 |
||
