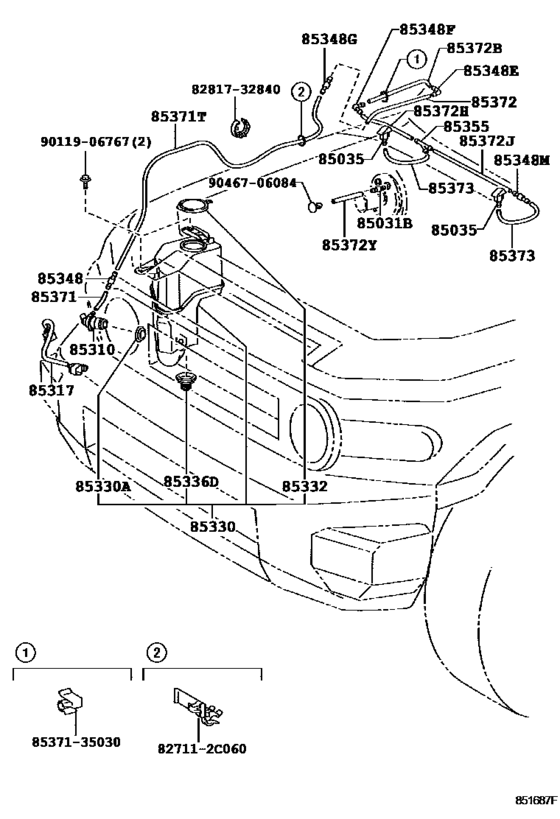

Windshield Washer ([07.2007 - 08.2009] W/O(REAR WINDOW WIPER) (0707-0908)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-34030 Nozzle Sub-Assy, WasherWASHER [07.2007 - 11.2010] GSJ15 |
85381-34030 |
from US $12.79 |
||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[07.2007 - 11.2010] GSJ15 |
85330-60190 |
from US $89.32 |
||
|
85317
|
85317
85317-35330
Wiring Assy, Washer
[07.2007 - 08.2009] GSJ15..CHI,GEN; GSJ15..GCC REAR WINDOW WIPER-WITH |
85317-35330 |
— | ||
|
85317
|
85317
85317-35370
Wiring Assy, Washer
[08.2009 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC REAR WINDOW WIPER-WITH |
85317-35370 |
— | ||
|
85330
|
85330
85315-35330 Jar Assy, Windshield WasherWINDSHIELD WASHER [07.2007 - 08.2009] GSJ15..CHI,GEN; GSJ15..GCC REAR WINDOW WIPER-WITH |
85315-35330 |
US $86.74 |
||
|
85330
|
85330
85315-35370 Jar Assy, Windshield WasherWINDSHIELD WASHER [08.2009 - 11.2010] GSJ15..CHI,GEN; GSJ15..GCC REAR WINDOW WIPER-WITH |
85315-35370 |
from US $62.38 |
||
|
85330A
|
85330A
85336-60300 Bush, Windshield Washer Jar[07.2007 - 11.2010] GSJ15 |
85336-60300 |
from US $1.92 |
||
|
85332
|
85332
85316-12290 Cap, Windshield Washer Jar[07.2007 - 08.2009] GSJ15 |
85316-12290 |
from US $1.75 |
||
|
85332
|
85332
85386-60050 Cap, Windshield Washer JarWINDSHIELD WASHER JAR [08.2009 - 11.2010] GSJ15 |
85386-60050 |
from US $1.52 |
||
|
85336D
|
85336D
85336-20340
Packing, Windshield Washer Jar
[07.2007 - 08.2009] GSJ15 |
85336-20340 |
— | ||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[08.2009 - 11.2010] GSJ15 |
85336-30160 |
from US $3.32 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[07.2007 - 11.2010] GSJ15 |
85375-10260 |
from US $1.41 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[07.2007 - 11.2010] GSJ15 |
85355-20200 |
from US $0.95 |
||
|
85348F
|
85348F
85355-20200 Joint, Windshield Washer Hose, No.1[08.2009 - 11.2010] GSJ15 |
85355-20200 |
from US $0.95 |
||
|
85348F
|
85348F
85375-33070 Joint, Windshield Washer Hose, No.1[07.2007 - 08.2009] GSJ15 |
85375-33070 |
US $0.84 |
||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[07.2007 - 08.2009] GSJ15 |
85375-10260 |
from US $1.41 |
||
|
85348M
|
85348M
85375-10260 Joint, Windshield Washer Hose, No.1[07.2007 - 08.2009] GSJ15 |
85375-10260 |
from US $1.41 |
||
|
85355
|
85355
85348-12250 Joint, Windshield Washer Hose, No.1[07.2007 - 08.2009] GSJ15 |
85348-12250 |
from US $0.55 |
||
|
85371
|
85371
85336-12230 Joint, Windshield Washer Elbow, No.1[07.2007 - 08.2009] GSJ15 L=15; GSJ15..GCC L=15,REAR WINDOW WIPER-WITH |
85336-12230 |
US $3.84 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.2009 - 11.2010] GSJ15 *H,L=160; GSJ15..GCC *H,L=160,REAR WINDOW WIPER-WITH |
90099-33080 |
from US $5.19 |
||
|
85371T
|
85371T
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 08.2009] GSJ15 *H,L=920; GSJ15..GCC *H,L=920,REAR WINDOW WIPER-WITH |
90099-33080 |
from US $5.19 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 08.2009] GSJ15 *H,L=310 |
90099-33080 |
from US $5.19 |
||
|
85372
|
85372
90099-62068 Hose, Windshield Washer (From Joint To Joint), No.1[02.2011 -] GSJ15..CHI,GCC,GEN,SA L=250; GSJ15..ATM..GCC L=250,REAR WINDOW WIPER-WITH; GSJ15..ATM..GCC L=250,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..ATM..GCC L=250,REAR WINDOW WIPER-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 1 |
90099-62068 |
US $6.76 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 08.2009] GSJ15 *H,L=430 |
90099-33080 |
from US $5.19 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 08.2009] GSJ15 *H,L=240 |
90099-33080 |
from US $5.19 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 08.2009] GSJ15 *H,L=610 |
90099-33080 |
from US $5.19 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2007 - 11.2010] GSJ15 *H,L=210 |
90099-33080 |
from US $5.19 |
||
|
827112C060
|
827112C060
82711-2C060 Clamp No.1 (For Windseield Washer) |
82711-2C060 |
US $1.61 |
||
|
8281732840
|
8281732840
82817-32840 Protector, Wiring Harness, No.1 |
82817-32840 |
US $2.62 |
||
|
8537135030
|
8537135030
85371-35030
Hose, Windshield Washer (from Motor To Joint)
|
85371-35030 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.67 |
||
|
9046706084
|
9046706084
90467-06084 Clip(For Headlamp Cover Seal) |
90467-06084 |
from US $0.99 |
