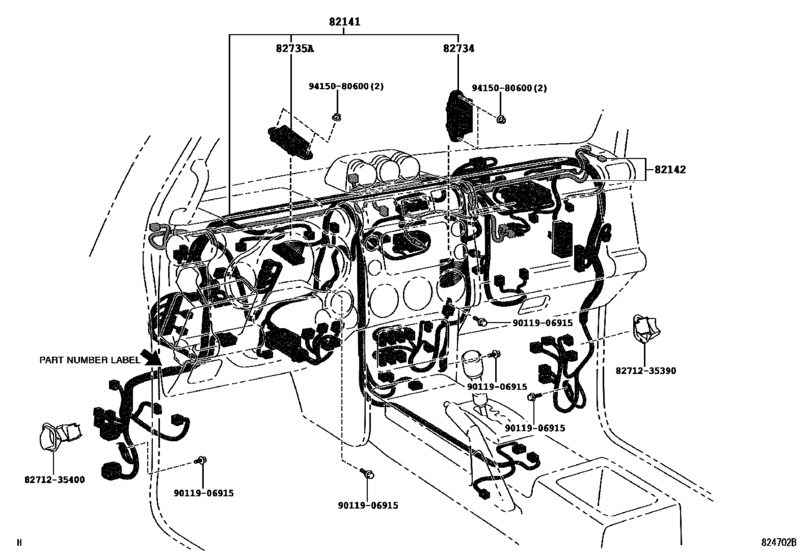

Wiring & Clamp ([07.2007 - ] INSTRUMENT PANEL (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-35K20
Wire, Instrument Panel
[12.2007 - 08.2009] GSJ15..CHI |
82141-35K20 |
— | ||
|
82141
|
82141
82141-35S60
Wire, Instrument Panel
[08.2009 - 11.2010] GSJ15..CHI |
82141-35S60 |
— | ||
|
82141
|
82141
82141-35V50
Wire, Instrument Panel
[11.2010 - 08.2011] GSJ15..CHI |
82141-35V50 |
— | ||
|
82141
|
82141
82141-3D060
Wire, Instrument Panel
[08.2011 - 08.2012] GSJ15..CHI |
82141-3D060 |
— | ||
|
82141
|
82141
82141-3D270
Wire, Instrument Panel
[08.2012 - 12.2015] GSJ15..CHI |
82141-3D270 |
— | ||
|
82141
|
82141
82141-3D280
Wire, Instrument Panel
[08.2012 - 12.2015] GSJ15..CHI VSC-WITH(A-TRC & CRAWL CONTROL) |
82141-3D280 |
— | ||
|
82142
|
82142
82142-35060
Wire, Instrument Panel, No.2
[07.2007 - 11.2010] GSJ15 |
82142-35060 |
— | ||
|
82142
|
82142
82142-35320
Wire, Instrument Panel, No.2
[11.2010 - 08.2012] GSJ15..CHI |
82142-35320 |
— | ||
|
82142
|
82142
82142-35321
Wire, Instrument Panel, No.2
[08.2012 - 12.2015] GSJ15..CHI |
82142-35321 |
— | ||
|
82734
|
82734
82734-35050 Block, Center JunctionCENTER JUNCTION [07.2007 - 11.2010] GSJ15 |
82734-35050 |
US $29.41 |
||
|
82735A
|
82735A
82734-35040 Block, Driver Side JunctionDRIVER SIDE JUNCTION [07.2007 - 11.2010] GSJ15 |
82734-35040 |
US $29.41 |
||
|
8271235390
|
8271235390
82712-35390
Hose, Suction
|
82712-35390 |
— | ||
|
8271235400
|
8271235400
82712-35400
Hose, Suction
|
82712-35400 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
