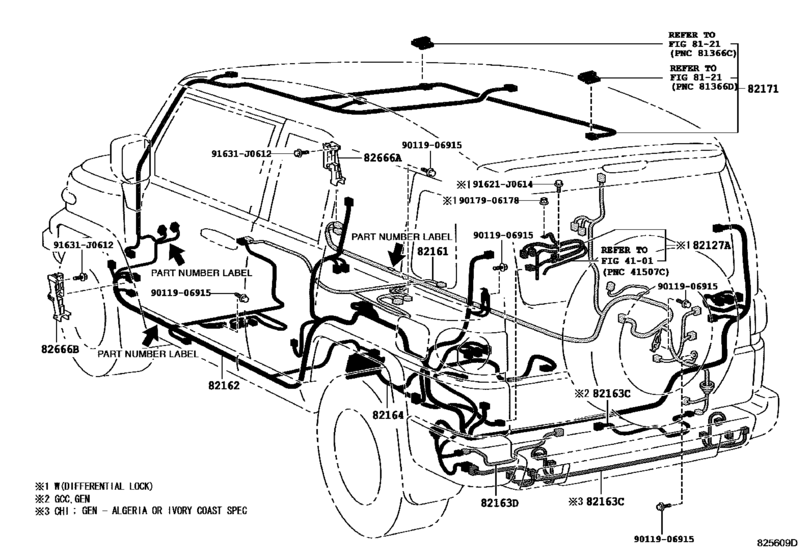

Wiring & Clamp ([07.2007 - 11.2010] FLOOR,FRAME & ROOF (0707-1011)) Diagram Toyota FJ CRUISER
- Year
- 2007 - 2015
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- From
- 12.2007
- To
- 12.2015
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82127A
|
82127A
82127-35270 Wire, Differential (To Wire Frame)[08.2009 - 11.2010] GSJ15 DIFFERENTIAL LOCK-WITH |
82127-35270 |
US $66.83 |
||
|
82127A
|
82127A
82127-35271 Wire, Differential (To Wire Frame)[08.2011 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH |
82127-35271 |
US $58.53 |
||
|
82127A
|
82127A
82127-60040 Wire, Differential[07.2007 - 08.2009] GSJ15 DIFFERENTIAL LOCK-WITH |
82127-60040 |
US $94.58 |
||
|
82161
|
82161
82161-35870
Wire, Floor
[07.2007 - 11.2010] GSJ15 |
82161-35870 |
— | ||
|
82161
|
82161
82161-35880
Wire, Floor
[07.2007 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
82161-35880 |
— | ||
|
82161
|
82161
82161-35C40
Wire, Floor
[11.2010 - 08.2012] GSJ15..CHI; GSJ15..ATM..GCC SRS AIR BAG-WITH(CURTAIN SHIELD)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER) |
82161-35C40 |
— | ||
|
82161
|
82161
82161-35E80
Wire, Floor
[08.2012 - 12.2015] GSJ15..CHI |
82161-35E80 |
— | ||
|
82162
|
82162
82162-35870
Wire, Floor, No.2
[12.2007 - 08.2009] GSJ15..CHI |
82162-35870 |
— | ||
|
82162
|
82162
82162-35880
Wire, Floor, No.2
[12.2007 - 08.2009] GSJ15..CHI DIFFERENTIAL LOCK-WITH |
82162-35880 |
— | ||
|
82162
|
82162
82162-35890
Wire, Floor, No.2
[12.2007 - 08.2009] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35890 |
— | ||
|
82162
|
82162
82162-35A00
Wire, Floor, No.2
[12.2007 - 08.2009] GSJ15..CHI DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35A00 |
— | ||
|
82162
|
82162
82162-35C40
Wire, Floor, No.2
[08.2009 - 11.2010] GSJ15..CHI; GSJ15..GEN ALGERIA SPEC; GSJ15..GEN IVORY COAST SPEC |
82162-35C40 |
— | ||
|
82162
|
82162
82162-35C50
Wire, Floor, No.2
[08.2009 - 11.2010] GSJ15..CHI DIFFERENTIAL LOCK-WITH; GSJ15..GEN ALGERIA SPEC&DIFFERENTIAL LOCK-WITH; GSJ15..GEN IVORY COAST SPEC&DIFFERENTIAL LOCK-WITH |
82162-35C50 |
— | ||
|
82162
|
82162
82162-35C60
Wire, Floor, No.2
[08.2009 - 11.2010] GSJ15..CHI SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..GEN ALGERIA SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..GEN IVORY COAST SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35C60 |
— | ||
|
82162
|
82162
82162-35C70
Wire, Floor, No.2
[08.2009 - 11.2010] GSJ15..CHI DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..GEN ALGERIA SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..GEN IVORY COAST SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35C70 |
— | ||
|
82162
|
82162
82162-35E10
Wire, Floor, No.2
[11.2010 - 08.2012] GSJ15..CHI; GSJ15..GEN..LHD ALGERIA SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD); GSJ15..GEN..LHD IVORY COAST SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35E10 |
— | ||
|
82162
|
82162
82162-35F60
Wire, Floor, No.2
[08.2012 - 12.2015] GSJ15..CHI |
82162-35F60 |
— | ||
|
82163C
|
82163C
82163-35090
Wire, Floor No.3 Rh
[12.2007 - 11.2010] GSJ15..CHI |
82163-35090 |
— | ||
|
82164
|
82164
82164-35A00 Wire, FrameFRAME [07.2007 - 11.2010] GSJ15 |
82164-35A00 |
US $47.76 |
||
|
82164
|
82164
82164-35A10 Wire, FrameFRAME [07.2007 - 11.2010] GSJ15 DIFFERENTIAL LOCK-WITH |
82164-35A10 |
US $82.99 |
||
|
82164
|
82164
82164-35A30 Wire, Frame[11.2010 - 08.2012] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..(ARL,GCC) DIFFERENTIAL LOCK-WITH |
82164-35A30 |
US $138.32 |
||
|
82164
|
82164
82164-35A90 Wire, Frame[08.2012 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH |
82164-35A90 |
US $103.38 |
||
|
82171
|
82171
82171-35890 Wire, Roof, No.1ROOF, NO.1 [07.2007 - 11.2010] GSJ15..CHI |
82171-35890 |
US $116.48 |
||
|
82171
|
82171
82171-35B70
Wire, Roof, No.1
[11.2010 - 08.2012] GSJ15..CHI |
82171-35B70 |
— | ||
|
82171
|
82171
82171-35C40
Wire, Roof, No.1
[08.2012 - 08.2014] GSJ15..CHI; GSJ15..ATM..GCC AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&BACK MONITOR-WITH; GSJ15..ATM..GCC AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&BACK MONITOR-WITHOUT |
82171-35C40 |
— | ||
|
82171
|
82171
82171-35C41
Wire, Roof, No.1
[08.2014 - 12.2015] GSJ15..CHI |
82171-35C41 |
— | ||
|
82171
|
82171
82171-35C50
Wire, Roof, No.1
[08.2012 - 08.2014] GSJ15..CHI VSC-WITH(A-TRC & CRAWL CONTROL); GSJ15..ATM..GCC VSC-WITH(A-TRC & CRAWL CONTROL)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&BACK MONITOR- WITH; GSJ15..ATM..GCC VSC-WITH(A-TRC & CRAWL CONTROL)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&B |
82171-35C50 |
— | ||
|
82171
|
82171
82171-35C51
Wire, Roof, No.1
[08.2014 - 12.2015] GSJ15..CHI VSC-WITH(A-TRC & CRAWL CONTROL) |
82171-35C51 |
— | ||
|
82666A
|
82666A
82666-35430 Holder, Connector No.2[07.2007 - 11.2010] GSJ15 |
82666-35430 |
US $30.28 |
||
|
82666B
|
82666B
82666-35440 Holder, Connector No.3[07.2007 - 11.2010] GSJ15 |
82666-35440 |
US $29.99 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.76 |
